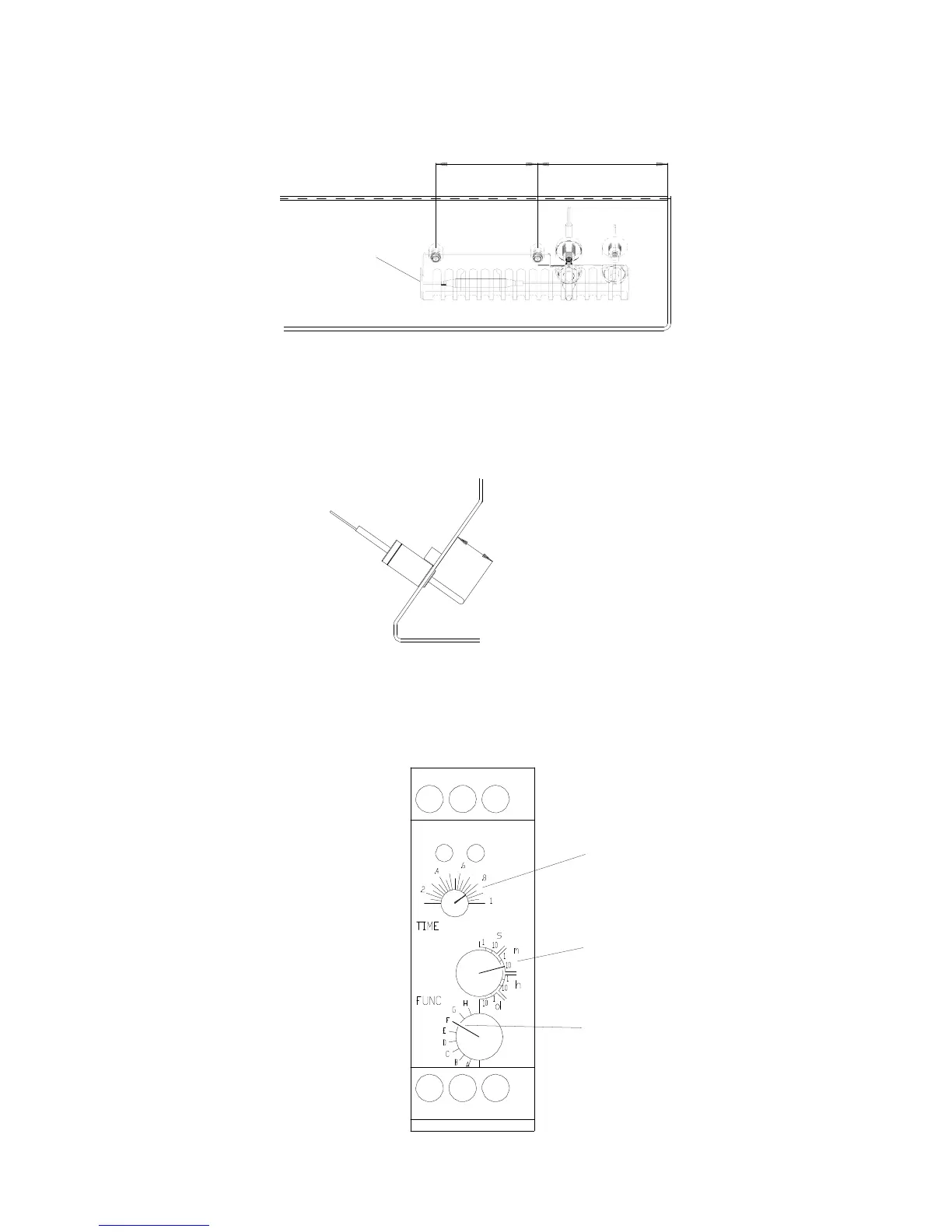

5.1 CRITICAL DIMENSIONS
90mm (+/-1mm) 102.5mm
Phial pushed
against end of
guard
Safety Thermostat
32mm (+/-1mm) from boss
Operating Thermostat
Probe
Set to 0.8
Set to 10 minutes
Oil Pump Timer Settings
Set to F
Set to 24V
