Falcon SSG500VA-1 User Manual

OM48017A

2001
Falcon

Electric Inc. All rights reserved.
All other brand names and trademarks are the property of their respective owners.
The information and specifications stated in this document are subject to change without notice. 2001-10-18
 Falcon and the Falcon Electric logo are registered trademarks of Falcon Electric Inc. MD40024-c

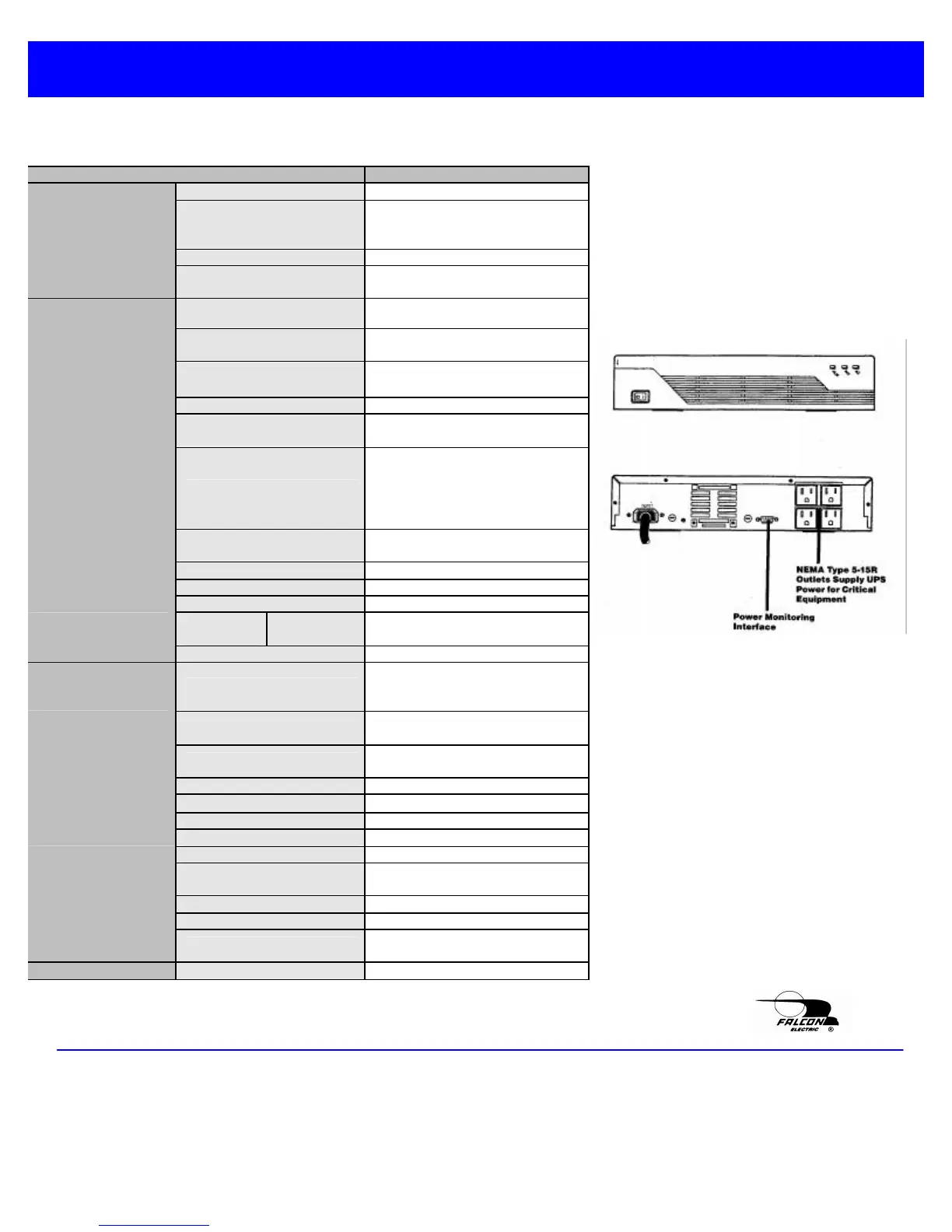

SPECIFICATION
MODEL SSG500VA-1
RATED POWER @ p.f. = 0.7 500VA
Voltage 120Vac, +10%, -30%
(Without battery discharge)
Current 8A
INPUT
Frequency 45Hz - 65Hz
(45-400Hz optional)
Voltage
120Vac ±3%
Current 4.2A (RMS),
11A Repetitive Peak
Frequency (Sync)
(Internal)
50/60 Hz ±0.1%
50/60 Hz ±0.5Hz
Harmonic Distortion Linear <4% Typical
Dynamic Response
±4% for 100% Step Load
Change ,05 ms Recovery Time
Overload (UPS)
110% Continuous;
200% for 0.5 seconds;
Sustained excessive overload
causes safe shutdown without
equipment damage
Output Protection
Short circuit & overload
Excessive battery discharge
OUTPUT
Efficiency 85% (Typical)
DC Voltage 48Vdc
Type 12V, 7AH Sealed Lead Acid
Backup
time.
Full Load
Half Load
4 min.
10 min.
BATTERY
Recharge Time 8 Hours to 90%
Visual Indicators
Utility Present
Inverter On
Summary Alarm
Audible Alarms
Low Battery, Utility Interrupt,
Inverter Failure, Over Temp.
FEATURES
Computer Interface
(DB-9) Utility Interrupt
Low Battery
Audible Noise 43-46dBA at five feet
Operating Temperature
32°F (0°C to 40°C)
Humidity 10% to 90%
ENVIRONMENT
Altitude Sea Level to 7,000 Feet
Cooling Low Velocity Forced Air
Input
8' Cord with NEMA Type
5-15P
Output Four NEMA Type 5-15R
Weight 22 lbs. (10kg)
MECHANICAL
Dimensions (H x W x D)
2.8 x 13.4 x 15.0 Inches
7 x 34 x 38 cm
APPROVALS Agency UL Listed, CSA, FCC Class A
FALCON

Electric Inc., 5106 Azusa Canyon Rd., Irwindale, California 91706, 877-2-FALCON {877 232-5266}, Fax 626-962-7720, Email: sales@falconups.com
SSG500VA SERIES
REAR VIEW
FRONT VIEW

Falcon SSG500VA-1 Specifications

General

Brand	Falcon
Model	SSG500VA-1
Category	UPS
Language	English
