1: General Information
7
Falex 430 ETR functionality consists of three (3) main areas (figure 1-1).

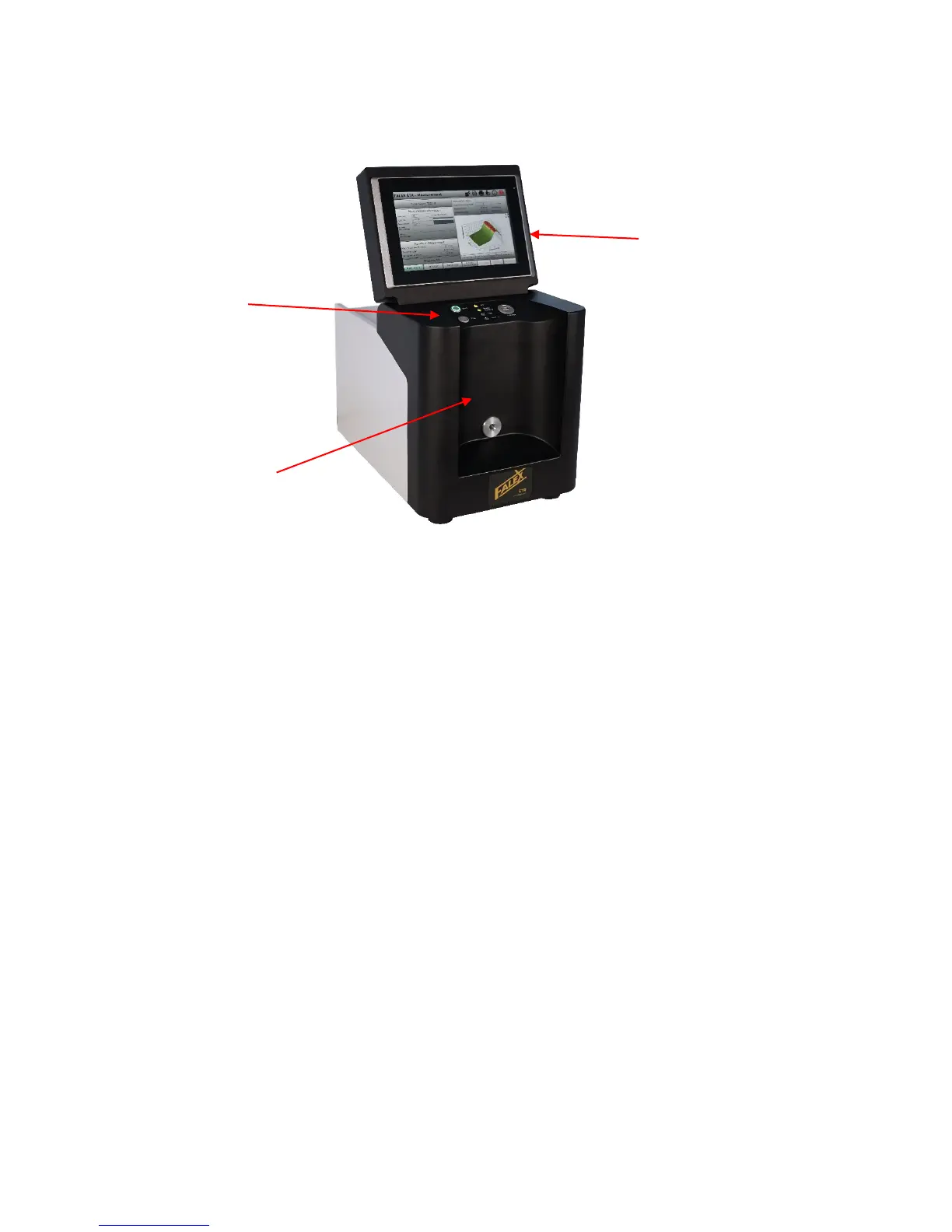

Figure 1-1 - Areas of Machine
1. User Interface – PC utilizing touchscreen functionality for configuration, control and
monitoring of the test.
2. Control Panel – consists of measurement process start/stop push-buttons, machine status
indicators and data transfer USB port.
3. Protective Housing – designed to prevent human body exposure from the laser path or
collateral radiation by beam or reflection exposure to laser emissions. Consists of a front,
back and two (2) side covers.
