Fantasea Line FG7X - Identification of Housing Parts

FG7X Housing Instruction Manual 20150101
6
IDENTIFICATION OF HOUSING PARTS

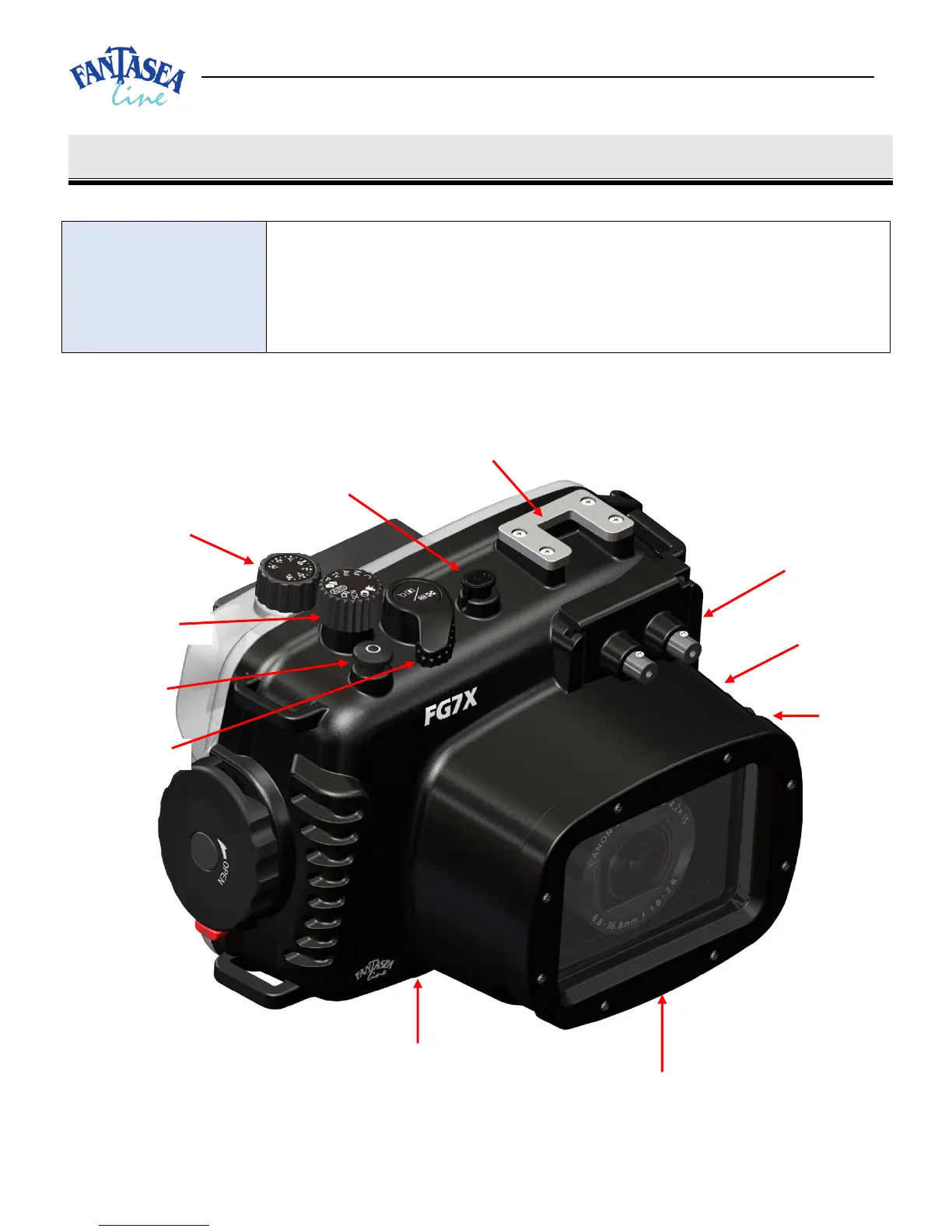

Top/Front Side of Housing - Corresponding numbered descriptions are found on the following page
Note
1. Please refer to the Canon G7 X camera instruction manual for detailed
descriptions and instructions regarding all camera controls and
functions.
2. It is strongly recommended that you familiarize yourself with all the
controls on land before using these controls underwater.
1. Zoom Lever
2. Shutter Release
5. On/Off
4. Mode Dial
6. Cold Shoe Mount
7. Fiber Optic
Cable Plate
9. Control Ring
(star shaped
control on side)
10. Lens Port
11. Tripod Mounting Screw Holes
(bottom)
3. Exposure
Compensation
Dial
8. Flash Up Switch
(on side)
