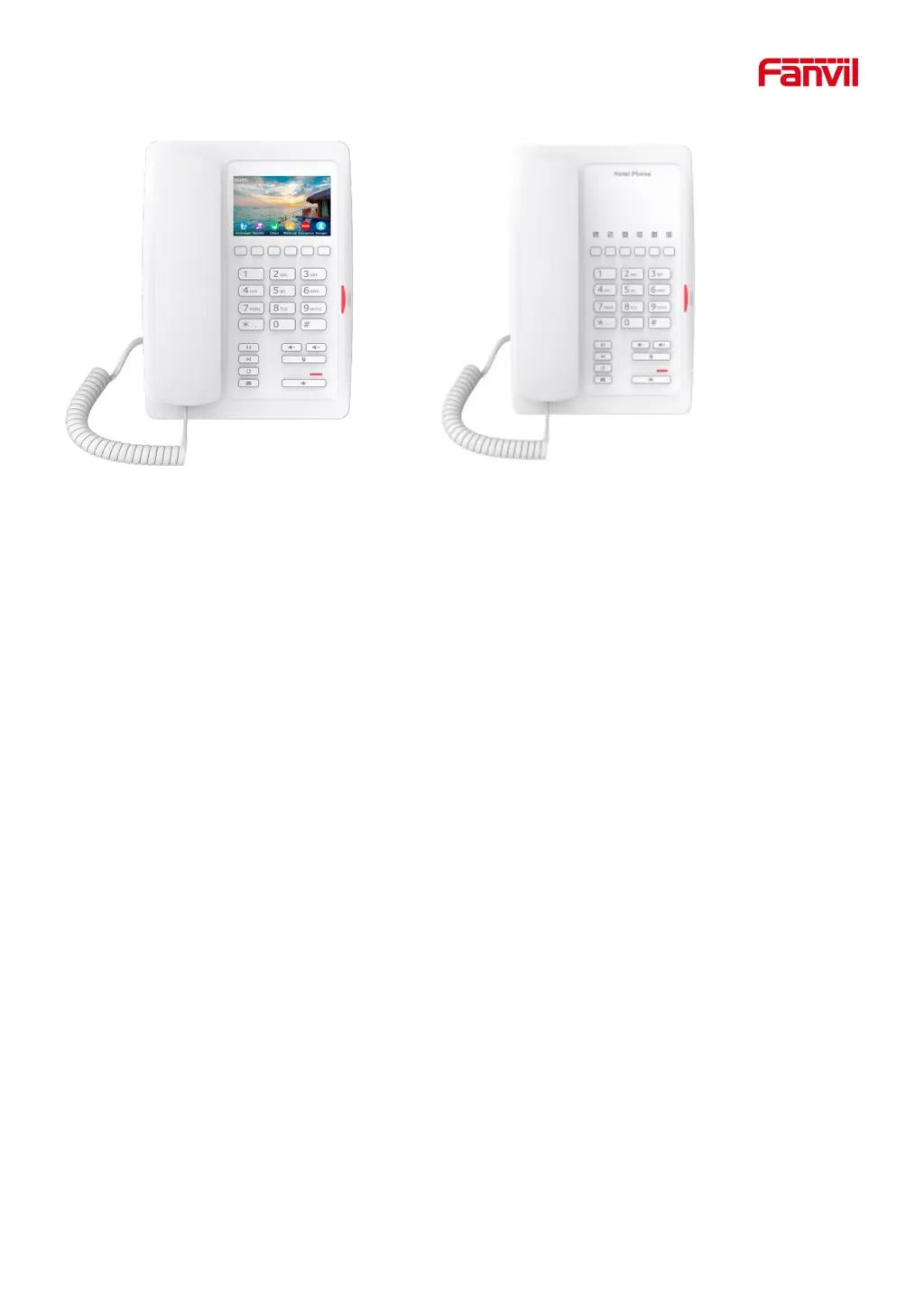

Fanvil H5W User Manual

H5W H3W User Manual
Software Version: 2.4.2
Release Date
：
2021/02/4

Fanvil H5W Specifications

General

Operating system installed	VxWorks
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Handset type	Wired handset
Product type	IP Phone
Product color	White
Firmware upgradeable	Yes
Number of programmable keys	6
Speakerphone	-
Voice codecs	G.711a, G.711u, G.722, G.723.1, G.726, G.729ab
Lines quantity	1 lines
Call log entries	300
Phonebook capacity	- entries
RJ-9 ports quantity	1
WAN connection type	RJ-45
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
Front camera	No
Networking standards	IEEE 802.1x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Display diagonal	3.5 \
Display resolution	480 x 320 pixels
Number of handles included	1 pc(s)

Summary


Table

Safety Instruction

Overview

H5W Packing Contents

Details the items included in the H5W phone package.

H3W Packing Contents

Details the items included in the H3W phone package.

Desktop Installation

PoE and the use of external power adapters

Explains power supply options using PoE and external adapters.

Desktop and wall mounted method

Provides instructions for installing the phone on a desktop or wall.

Appendix Table

Appendix I - Icon

Lists and explains icons used in the manual and on the phone.

Appendix II - Keyboard character query table

Provides a table for looking up characters on the keypad.

Introduction to the User

H5W Key description

Details the function and layout of the H5W phone's keypad buttons.

Using Handset / Hands-free Speaker

Explains how to use the phone's handset and speakerphone features.

Idle Screen

Describes the phone's standby screen layout and navigation.

Phone Status

Information on viewing the phone's network and device status.

Making Phone Calls

Guides on how to make phone calls using different methods.

Web Management

Instructions for accessing and managing the phone via its web interface.

SIP Configurations

Steps for configuring SIP line settings for telephony service.

Basic Function

Answering Calls

How to answer incoming calls using various methods.

End of the Call

Procedures for ending a call.

Redial

Instructions for redialing the last number or clearing records.

Auto-Answering

How to enable and configure the automatic answer feature.

Mute

How to mute microphone during calls or mute ringing.

Call Hold/Resume

How to put a call on hold and resume it.

Call Transfer

Steps for transferring a call to another party.

Call Waiting

How to manage incoming calls during an active call.

Advance Function

MCAST

Feature for making broadcast calls using multicast group.

MWI (Message Waiting Indicator)

Notification of waiting voice messages via indicator.

Web Configurations

Web Page Authentication

How to log in to the phone's web management interface.

System >> Information

Accessing device system and network information.

System >> Account

Managing user accounts and permissions for the web interface.

System >> Configurations

Viewing, exporting, importing, or clearing phone configurations.

System >> Upgrade

Instructions for upgrading phone software and firmware.

Network

Network >> Wi-Fi Settings

Configuring Wi-Fi connectivity and settings.

Network >> Basic

Basic network settings like IP mode (DHCP, PPPoE, Static IP).

Network >> Service Port

Configuring web page login, RTP, and other service ports.

Network >> VPN

Setting up VPN connections (L2TP, OpenVPN) for secure access.

Network >> Advanced

Advanced network settings like LLDP and CDP.

Line >> SIP

Configuring SIP line registration and parameters.

Line >> SIP Hotspot

Setting up the phone as a SIP hotspot server or client.

Line >> Dial Plan

Configuring dial rules and custom dialing plans.

Line >> Action Plan

Configuring action URLs for phone events.

Line >> Basic Settings

Global line registration configuration.

Line >> RTCP-XR

Configuring RTP Control Extended Report for quality measurement.

Phone settings >> Features

Configuring various phone features like call waiting, DTMF, etc.

Phone settings >> Media Settings

Adjusting audio settings, codecs, and volumes.

Phone settings >> MCAST

Configuring multicast listening addresses for broadcast calls.

Phone settings >> Action

Configuring action URLs for phone events.

Phone settings >> Time/Date

Setting up network time synchronization and date/time formats.

Phone Settings >> Time Plan

Configuring scheduled actions or reboots based on time.

Phone settings >> Tone

Customizing various phone tones and prompts.

Phone settings >> Advanced

Configuring advanced screen settings like brightness and screensaver.

Phonebook >> Advanced

Managing phonebook contacts, import/export, and groups.

Call Log

Browsing and sorting call records by time, number, or type.

Function Key >> Softkey

Customizing softkey functions and display styles.

Security >> Web Filter

Setting up IP-based access filtering for the web interface.

Security >> Trust Certificates

Managing trust certificates for secure communication.

Security >> Device Certificates

Configuring default and custom device certificates.

Security >> Firewall

Setting up firewall rules for input and output traffic.

Device Log >> Device Log

Accessing and managing device logs for troubleshooting.

Trouble Shooting

Get Device System Information

How to retrieve device system and network information.

Reboot Device

Procedures for rebooting the phone.

Reset Device to Factory Default

Steps to reset the device to its factory default settings.

H5W Screenshot

How to capture screenshots for troubleshooting.

Network Packets Capture

Capturing network packets for issue identification.

Get Log Information

How to retrieve and analyze device log files.

Common Trouble Cases

Solutions for common problems encountered with the device.
