Farm King RT17 - Adjustments; Three-Point Hitch Models; Pull-Type Models

Operation - RT17, RT19 Tedder
34
Adjustments
WARNING
AVOID INJURY OR DEATH
Before adjusting or servicing the machine:
• Always park on a flat level surface.
• Place all controls in NEUTRAL.
• Engage the park brake.
• Stop the engine and remove the key.
• Wait for all moving parts to stop.
Park the tractor / equipment on a flat level surface.
Place all controls in neutral, engage the park brake,
stop the engine and wait for all moving parts to
stop. Leave the operator’s position.

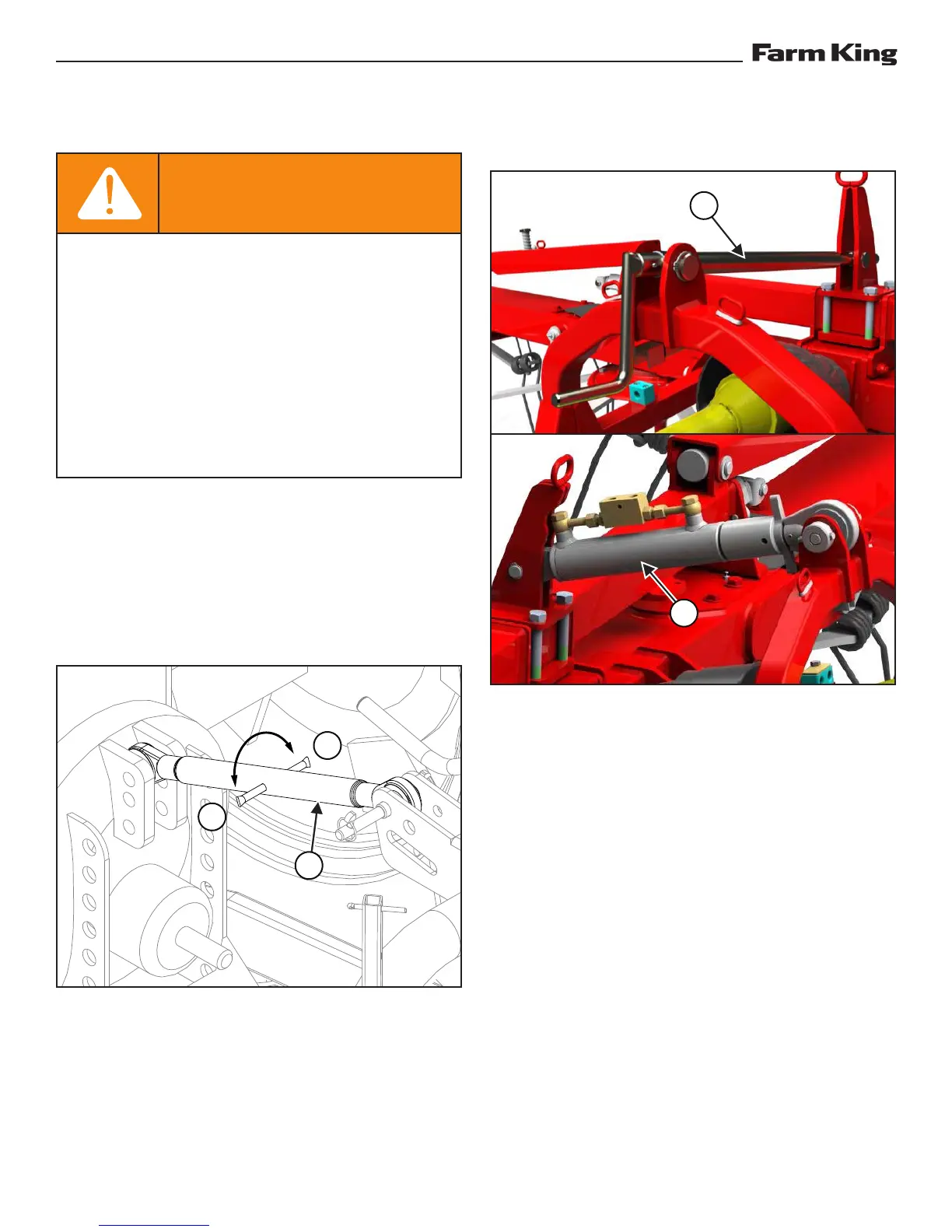

Three-Point Hitch Models
Figure 17
Turn the lever (Item 1) counterclockwise (Direction
A), to reduce the angle of the rotary groups [Figure
17].
Turn the lever (Item 1) clockwise (Direction B), to
increase the angle of the rotary groups [Figure 17].
Pull-Type Models
Figure 18
Turn the crank (Item 1), or act on the hydraulic
cylinder (Item 2), to change the angle of the rotary
groups [Figure 18].
1
1
2
A
B
