SIDE SHIFTING ADJUSTMENT
The FLAIL MOWERs can be configured with mechanical or hydraulically shifting device.
In case of mechanical shifting device, to shift the side position of the machine, act as described below:
• lift the Flail Mower, then turn off the tractor engine, disengage the PTO, set the parking brake and
remove
the key from the panel;

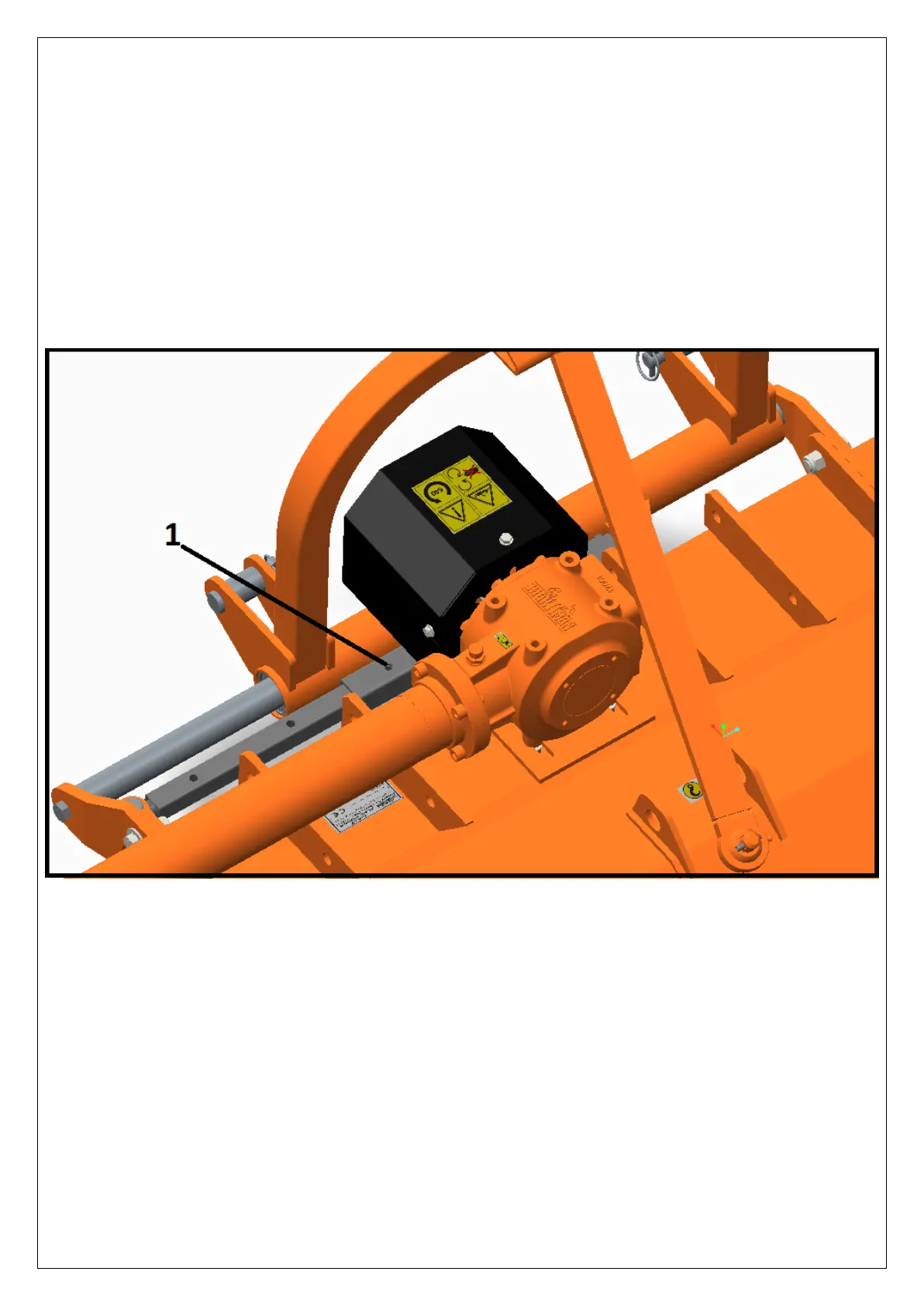

• unscrew and remove the bolt (1);
• Manually move the body of the Flail Mower by pushing from one side, until is reached the position
required overlaying the holes of the mechanical jack;
• reinsert the bolt removed earlier and tighten.
In case of configuration with hydraulic cylinder, the side adjustment of the frame is effected by actuating
the cylinder directly by the hydraulic control system of the tractor, after performed the connection of the
machine hydraulics to the tractor.
