BELT TENSIONING ADJUSTMENT

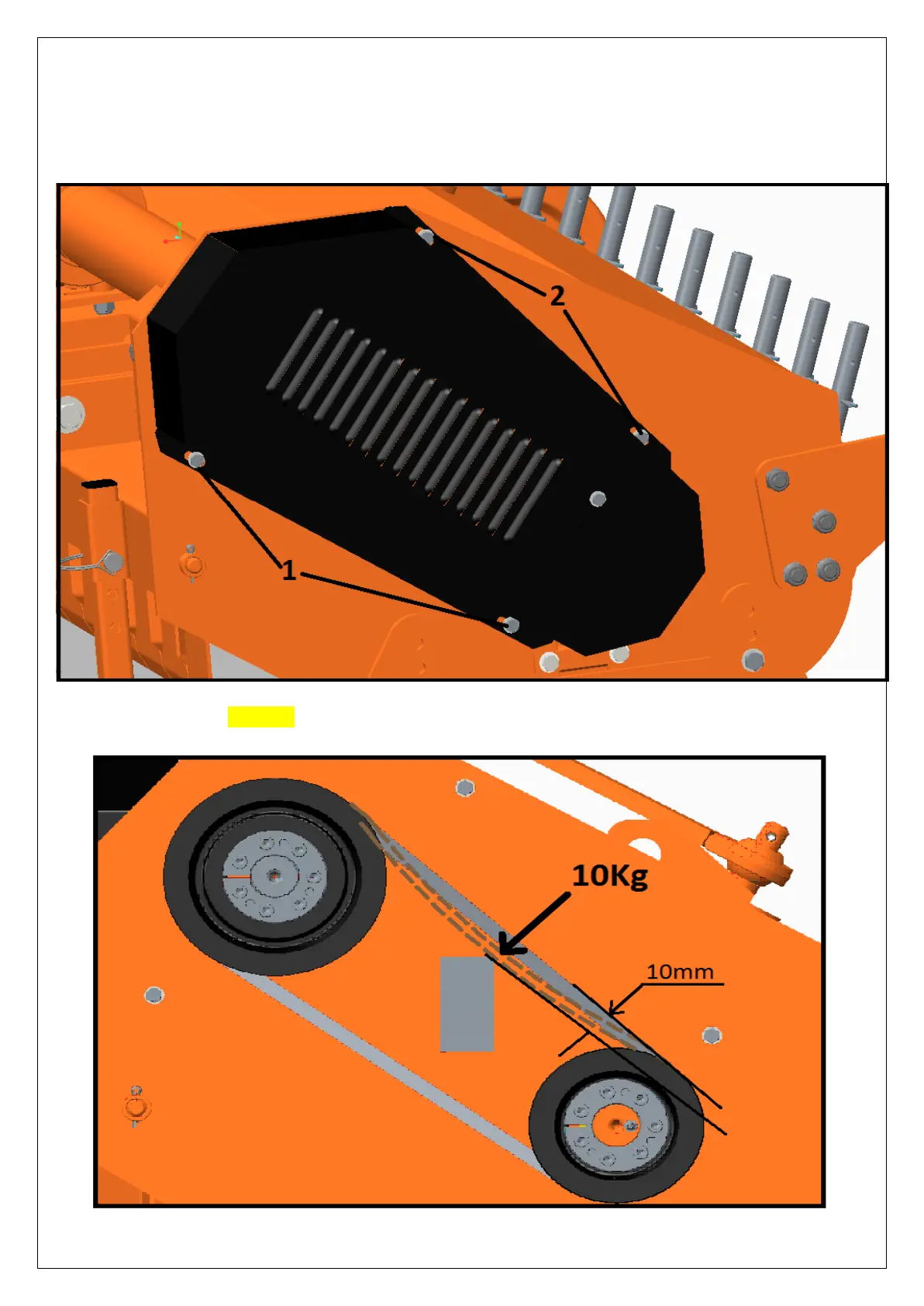

To check the correct belt tensioning of the side transmission, remove the safety cover of the belts by loose-
ning the four bolts (1) that secure it to the frame (see picture):
Apply a force of about 10-15 kg on the middle of the belts set, and measure the entity of the consequent
deflection of the belts (see picture):
