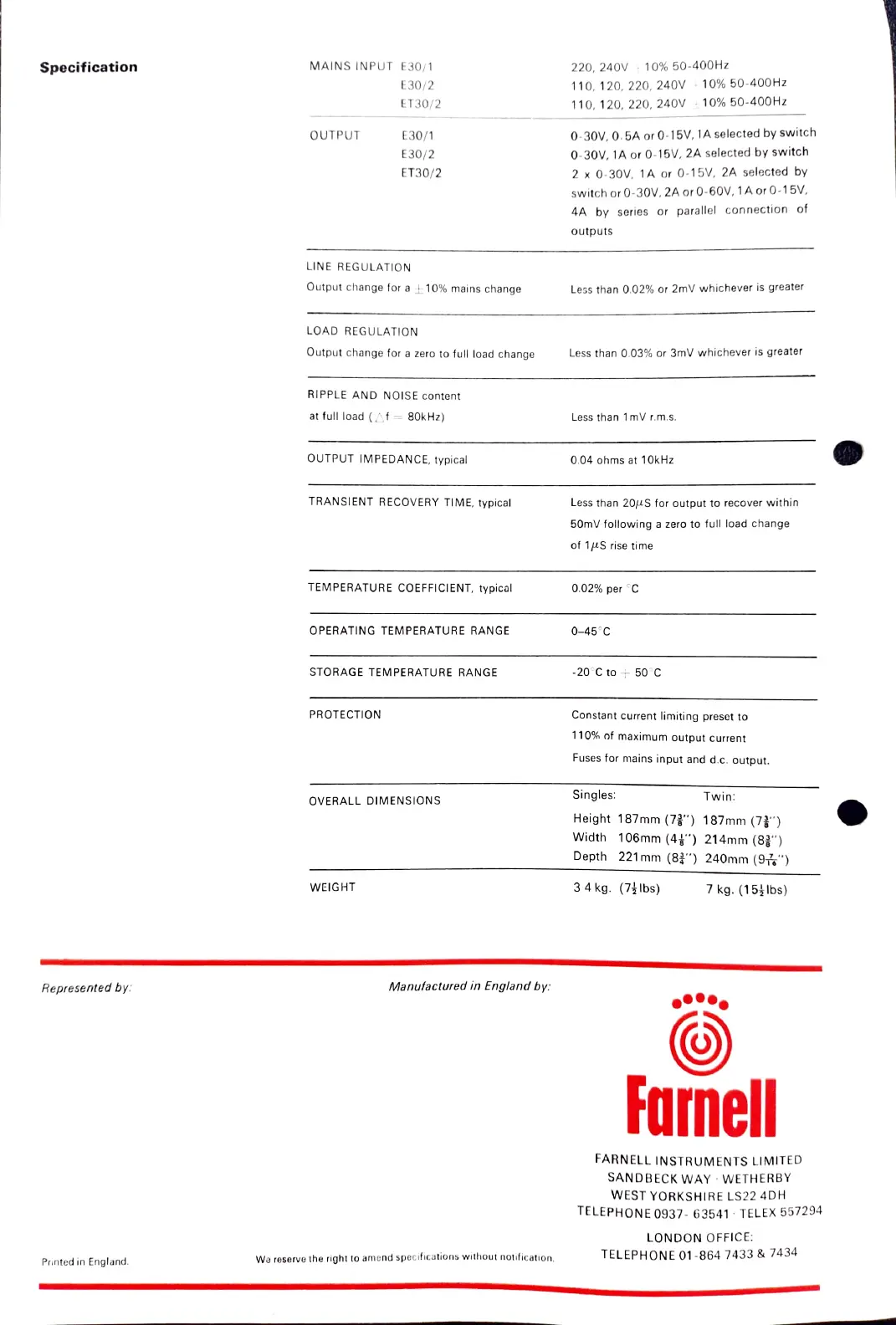

Specification
Represented by:
Printed in England.
MAINS INPUT E30/1
OUTPUT
E30/2
ET30/2
E30/1
E30/2
LINE REGULATION
ET30/2
Output change for a 10% mains change
LOAD REGULATION
Output change for a zero to full load change
RIPPLE AND NOISE Content
at full load (Af= 80kHz)
OUTPUT IMPEDANCE, typical
PROTECTION
TRANSIENT RECOVERY TIME, typical
TEMPERATURE COEFFICIENT, typical
WEIGHT
OPERATING TEMPERATURE RANGE
STORAGE TEMPERATURE RANGE
OVERALL DIMENSIONS
Manufactured in England by:
We reserve the right to amend specifications without noufication
220, 240V
10% 50-400Hz
110, 120, 220, 240V
110, 120, 220, 240V
10% 50-400Hz
10% 50-40OHz
0-30V,0.5A or0-15V, 1A selected by switch
0-30V, 1A or 0-15V, 2A selected by switch
2 x 0-30V, 1A or 0-15V, 2A selected by
switch or 0-30V, 2A or 0-60V, 1A or 0-15V,
4A by series or parallel connection of
Outputs
Less than 0.02% or 2mV whichever is greater
Less than 0.03% or 3mV whichever is greater
Less than 1mV r.m.s.
0.04 ohms at 1OkHz
Less than 20uS for output to recover within
50mV following a zero to full load change
of 1 uS rise time
0.02% per C
0-45°C
-20°C to 50 C
Constant current limiting preset to
110% of maximum output current
Fuses for mains input and d.c. output.
Singles:
Twin:
Height 187mm (7") 187mm (7")
Width 106mm (4) 214mm (8)
Depth 221 mm (82") 240mm (97)
3 4 kg. (7}lbs) 7 kg. (15} Ibs)
Farmell
FARNELL INSTRUMENTS LIMITED
SANDBECK WAY WETHERBY
WEST YORKSHIRE LS22 4DH
TELEPHONE 0937. 63541 TELEX 557294
LONDON OFFICE:
TELEPHONE 01 -864 7433 & 7434
