STEP 3:
PREPARE SUCTION AND
RETURN LINES

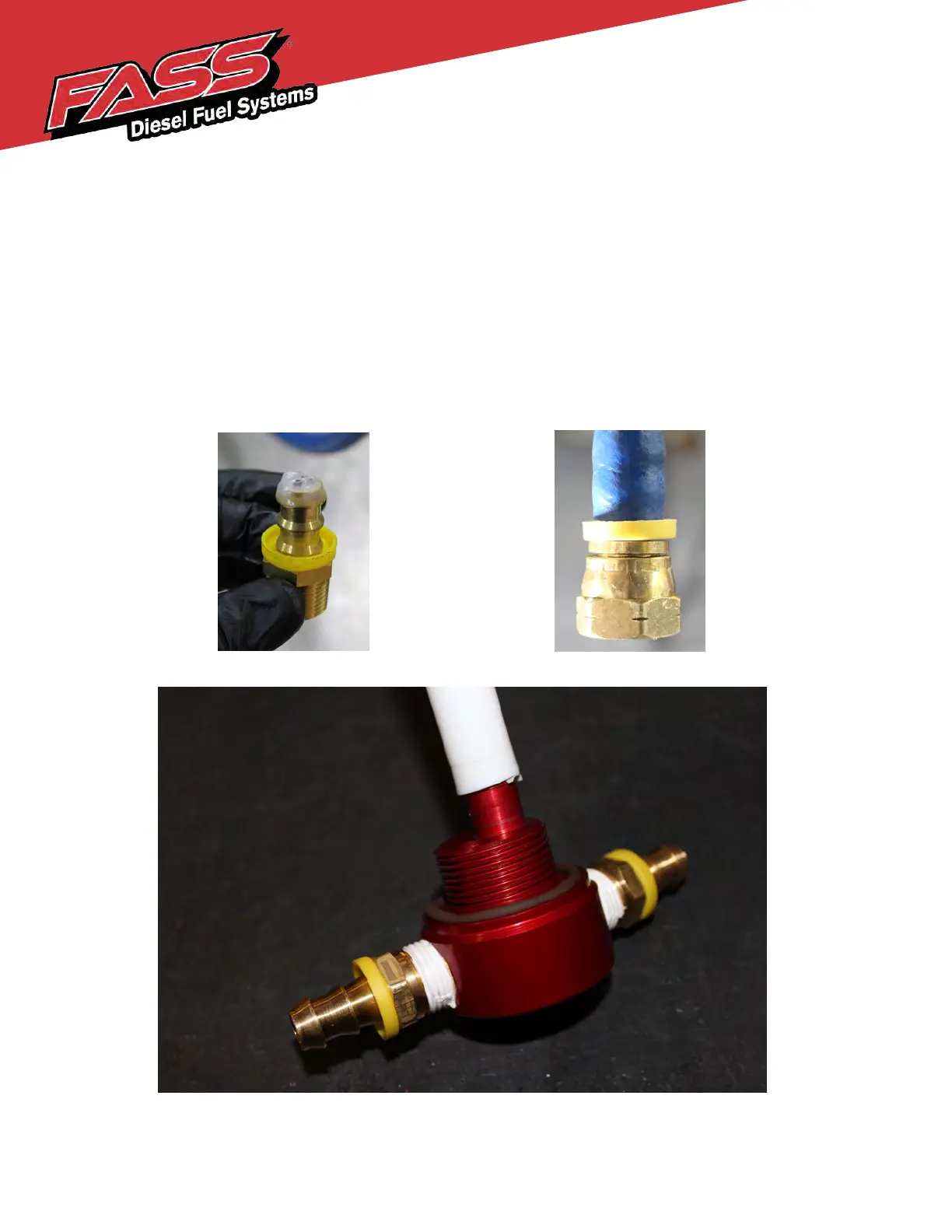

G. Prepare the BHF-1002 by installing the PL-1004 fittings to both sides of the BHF-1002. Then
install the ST-1005XP to the suction nipple of the BHF-1002. Fasten the 3/8's hose clamp around
the suction nipple and the ST-1005P. (See section 3-A and 3-B for further instruction)
NOTE: Hose clamps are not recommended for push lock fittings. They will hold up to 300 psi! Use
oil on fittings and inside fuel line when installing push lock fittings.
Lube
Lock Tab
To Next Page
