STEP 3:
PREPARE SUCTION &
RETURN LINES

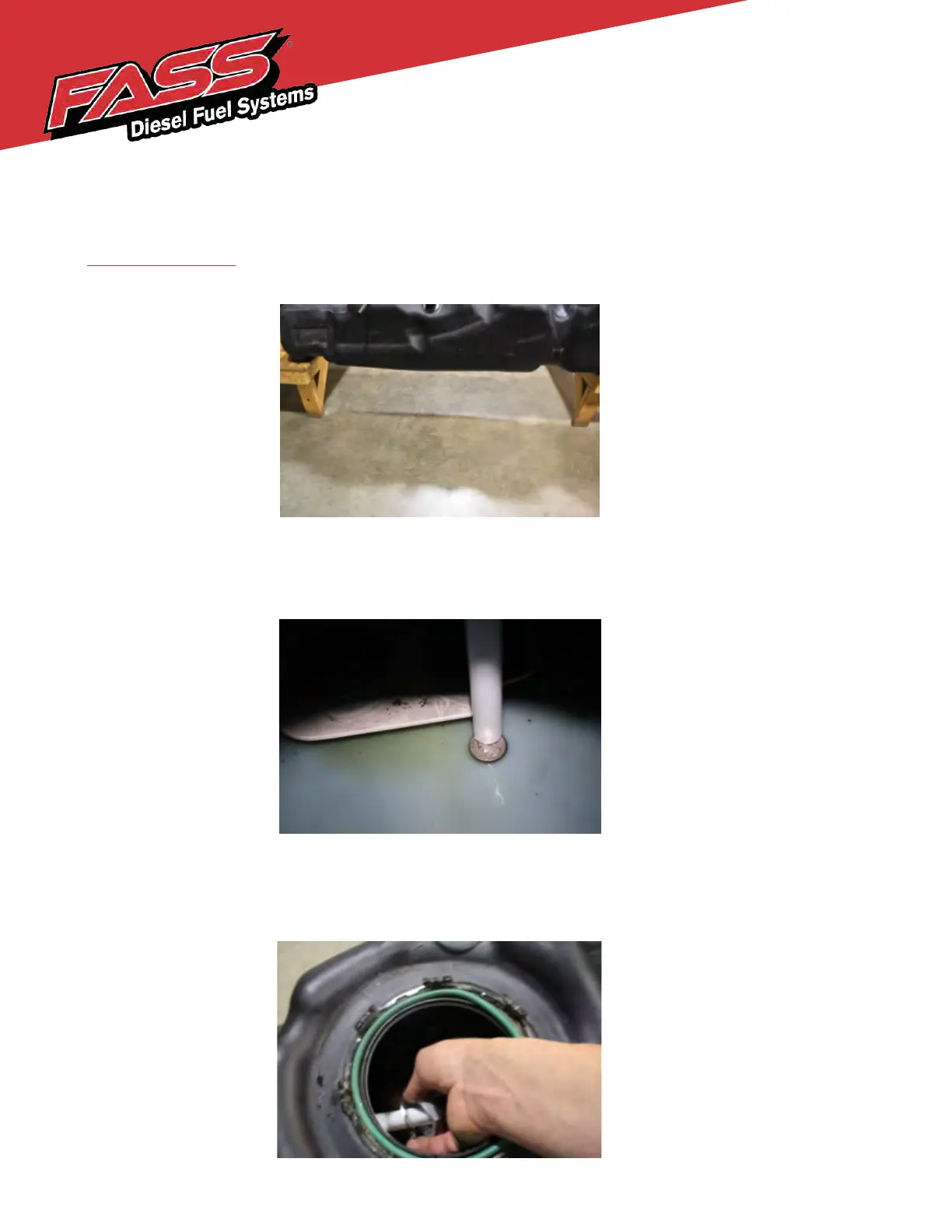

H. VERY IMPORTANT: Support fuel tank on both ends allowing the natural formation of the tank to take
place. Failure to perform this step can and will create an issue with less usable fuel!
I. Place the bulk head assembly into the drilled hole, take measurements so the bottom of the suction
tube is only 1/8” (no more than 2 quarters stacked) from the bottom of the fuel tank. Using a razor knife,
make multiple cuts to insure proper length, it is easy to shave the suction tube with the razor.
J. With proper length being obtained, place the assembly into the drilled hole securing the assembly
using the lock washer & nut. Tighten Nut. Loctite may be applied to the threads of the BHF-1002 for
added insurance.
