STEP 3: PREPARE SUCTION
AND RETURN LINES

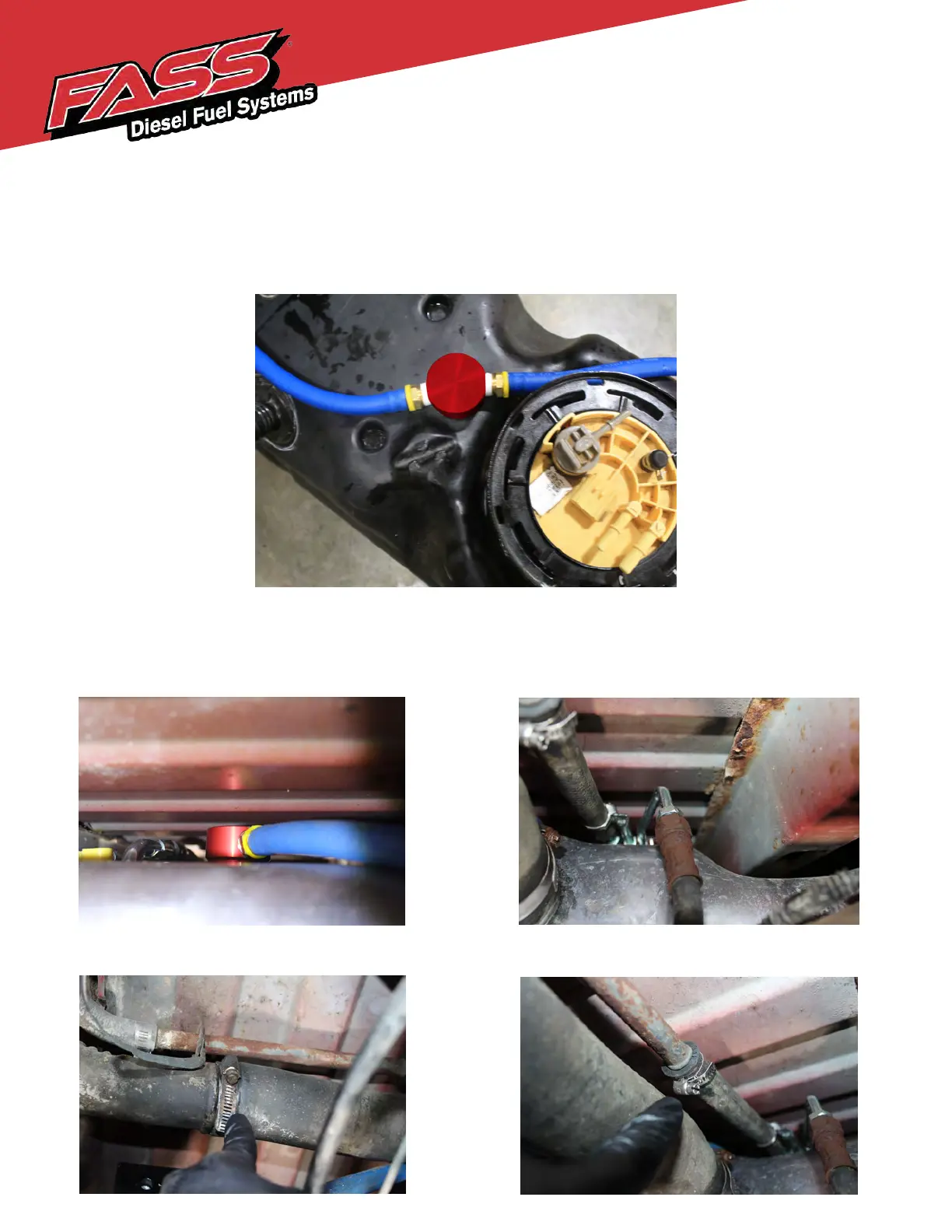

K. With the BHF-1002 tightly fastened to the fuel tank, using grease install one end of the FL-1002 (1/2"
line) onto the "S" port PL-1004 fitting at the bulk head (BHF-1002). Simply take the other end of the
FL-1002 and install it to the "R" port on at the bulk head fitting, creating a loop. Loop this over the frame rail
and reinstall the fuel tank under the truck.
Note: When installing fuel
line onto push lock fittings,
the line should reach the
yellow lock tab for a proper
seal.
L. With the fuel tank installed, reconnect the factory return line to the fuel tank sending unit. Plug the fuel
level sensor back in.
M. Reinstall fuel tank fill hose and fuel tank vent hose using factory hose clamps.
To Next Page
