STEP: 5
INSTALL FUEL LINE

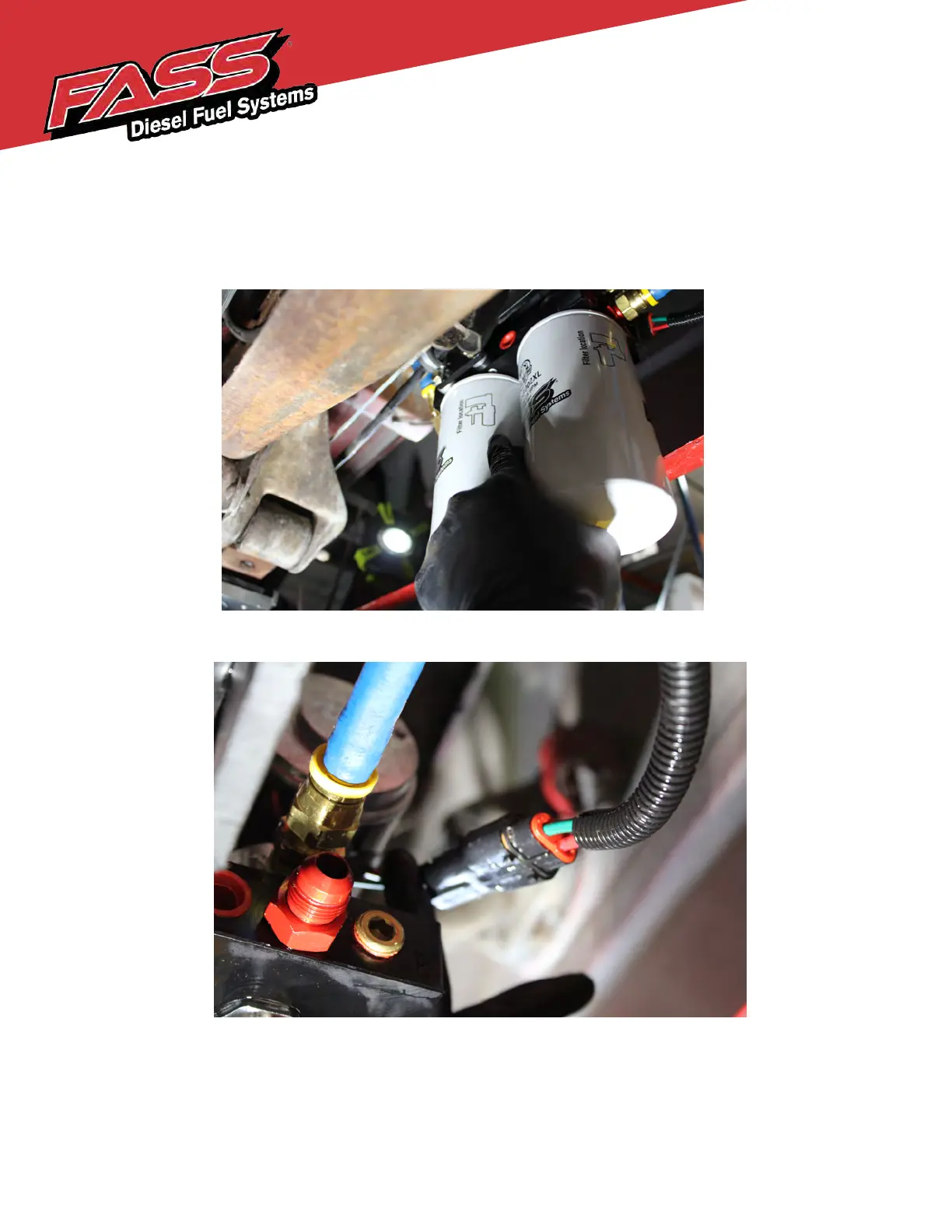

D. With the fuel lines installed and tight at this time now tighten the fuel tank straps. The FASS filters are
labeled with filter location images. Install the PF-3001 and tighten the filter. Next install XWS-3002 do
not tighten at this time.
E. Plug in the WH-1006-3 harness to the FASS pump and fasten with supplied zip ties.
Filter location images.
F. The FASS system is ready to be primed. Turn the key forward to the run position with out cranking the engine
so that the FASS pump can begin pumping fuel. Leaving the XWS-3002 loose listen for a change of sound in the
FASS motor, this will indicate the system is primed. Quickly tighten the XWS-3002. Next start the vehicle,
check all lines and fittings for leaks.
