Fastech S-SERVOII User Manual

www.fastech.co.kr - 43
Purpose Item Part Number Manufacturer
I/O
(CNA1, CNB1)
Housing
Terminal
PADP-20V-1-S
SPH-002T-P0.5L
JST
Encoder
Drive Side
(CNA2, CNB2)
Housing
Terminal
51353-1000
56134-9000
MOLEX
Encoder Side
Housing
Terminal
SMP-09V-NC
SHF-001T-0.8BS
JST
Motor
Drive Side
(CNA3, CNB3)
Housing
Terminal
5557-04R
5556T
MOLEX
Motor Side
Housing
Terminal
5557-04R
5556T
MOLEX
Power
(CNE4)
Housing
Terminal
VLP-02V
SVF-61T-P2.0
JST
28.2 Connector Specifications
Connector specifications for cabling to drive.
※ Above connector is the most suitable product for the drive applied. Another equivalent connector can be used.
Manufacturer : MOLEX
Housing : 5557-04R
Terminal : 5556T
MOLEX : Manufacturer
5557-04R : Housing
5556T : Terminal
Manufacturer : JST
Housing : VLP-02V
Terminal : SVF-61T-P2.0
Manufacturer : MOLEX
Housing : 5264-03
Terminal : 5263
AMPHENOL : Manufacturer
L177SDE09S : Connector
17E-1657-09 : Backshell

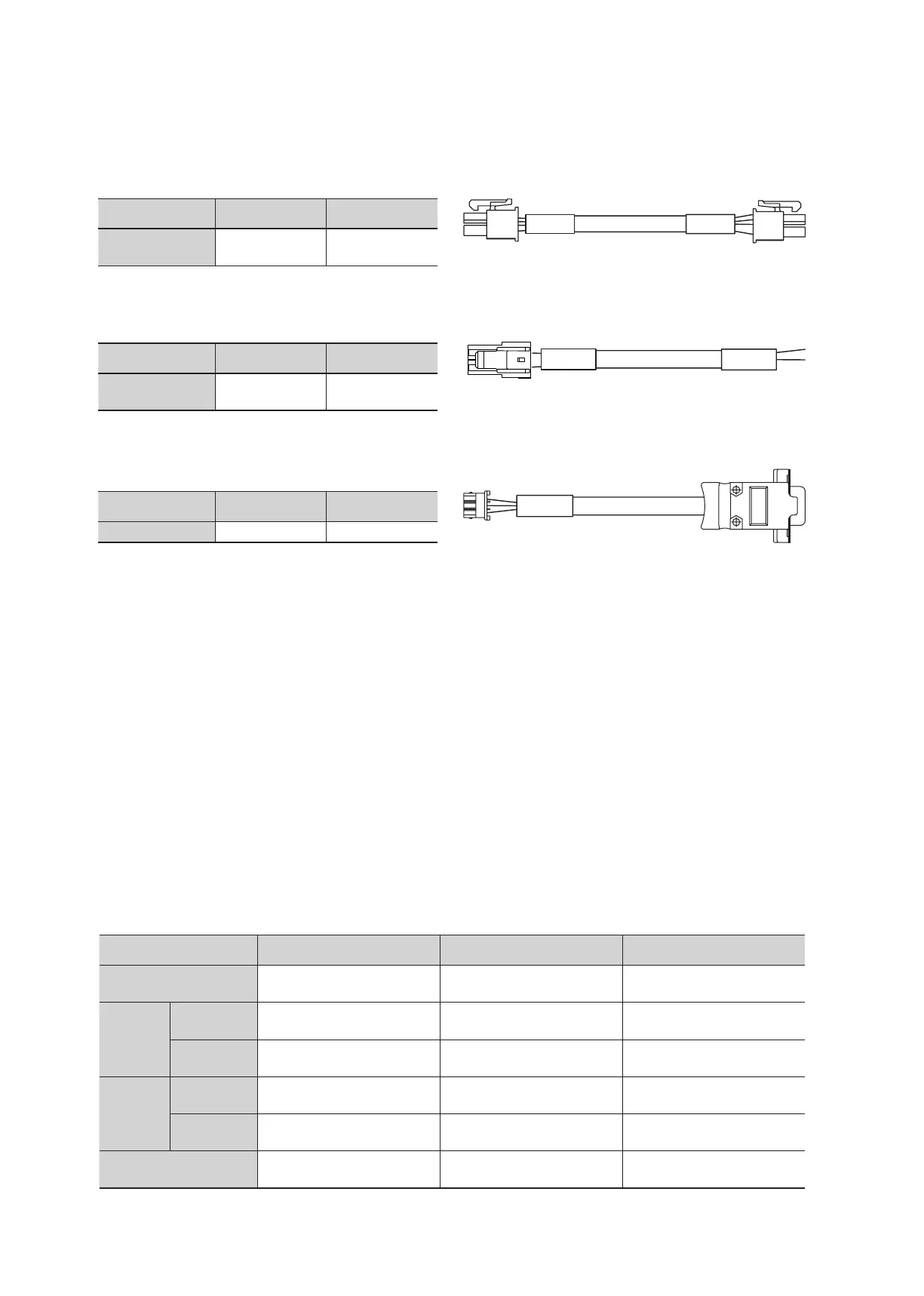

③ Motor Extension Cable
Item Length [m] Remark
CSVO-M-□ □ □F
CSVO-M-□ □ □M
□ □ □
□ □ □
Normal Cable
Robot Cable
□ is for Cable Length. The unit is 1m and Max. 20m length.
④ Power Cable
Item Length [m] Remark
CSVX-P-□ □ □F
CSVX-P-□ □ □M
□ □ □
□ □ □
Normal Cable
Robot Cable
□ is for Cable Length. The unit is 1m and Max. 2m length.
⑤ Parameter Setting Cable
Item Length [m] Remark
CBTS-C-□ □ □F □ □ □ Normal Cable
□ is for Cable Length. The unit is 1m and Max. 3m length.
