FATEK FBs-B2DA - Page 25

H1-22
(3)

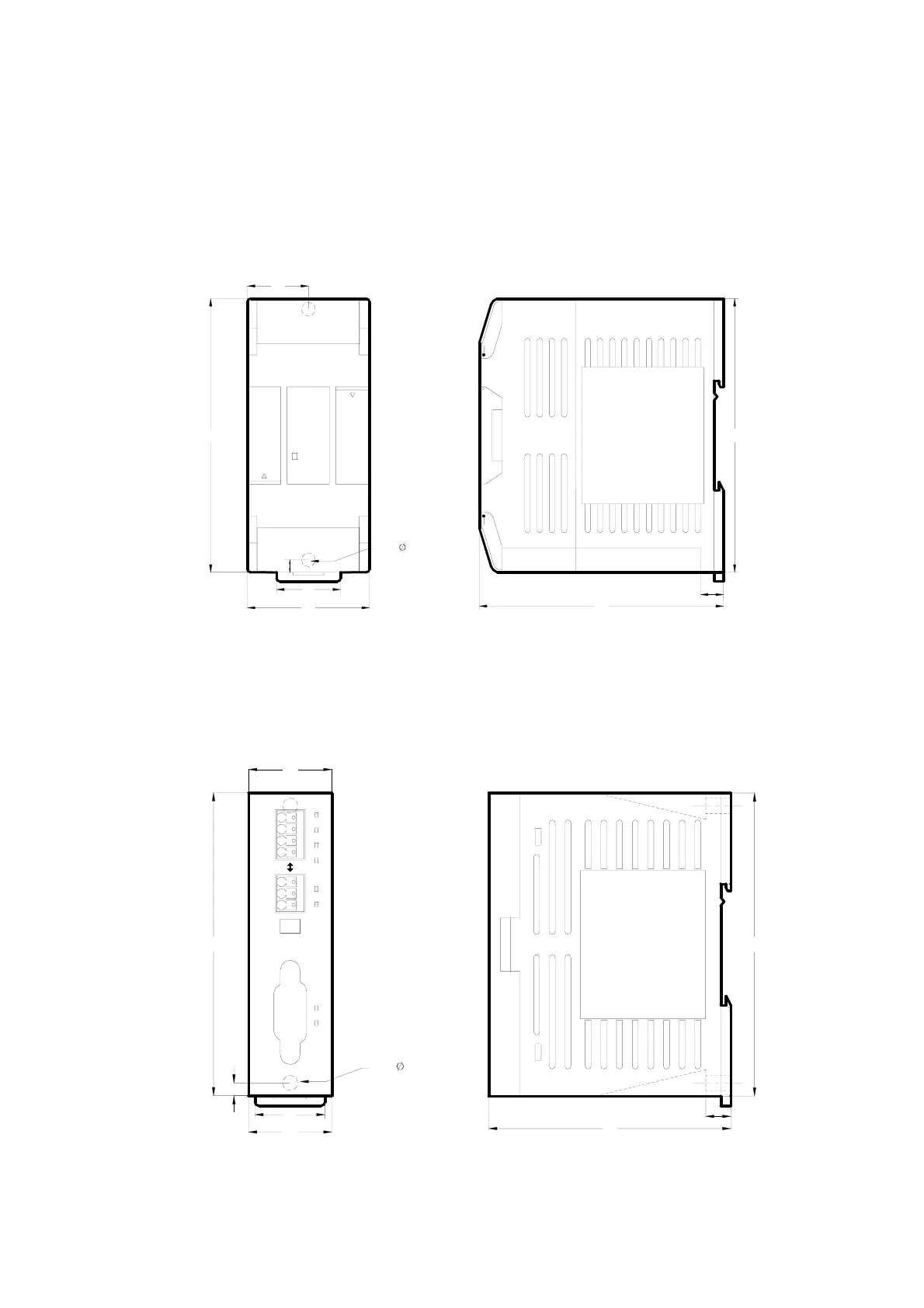

Outlook III：
Expansion Module：○
1
FB
S-8X, FBs-8Y, FBs-8XY, FBS-7SG1, FBs-7SG2, FBS-6AD, FBS-2DA, FBS-4DA,
FB
S-4A2D, FBS-2TC, FBS-6TC,FBS-6RTD, FBS-CM5H, FBs-2A4TC, FBs-2A4RTD,
FBs-4PT, FBs-1LC, FBs-1HLC, FBs-6NTC, FBs-VOM
○
2
FB
S-24X, FBS-24YT, FBs-24YJ, FBS-32DGI
＊(Modules ○
1
and
○
2
have the same type of base, with different top cover. Top cover of Module
○
1
is shown in
the following figure)
2 - 4.5
90
20
3.8
21
40
80
90
7.5
(4) Outlook IV:
Communication Module：FBS-CM22, FBS-CM55, FBS-CM25, FBS-CM25E, FBS-CM55E, FBS-CM25C, FBS-CM5R
＊ (All modules have the same type of base, with different top cover. Top cover of Module -CM25E is shown in the
figure)
25
90
90
73
25
21
3.8
2 - 4.5
7.5
units：mm
units：mm
