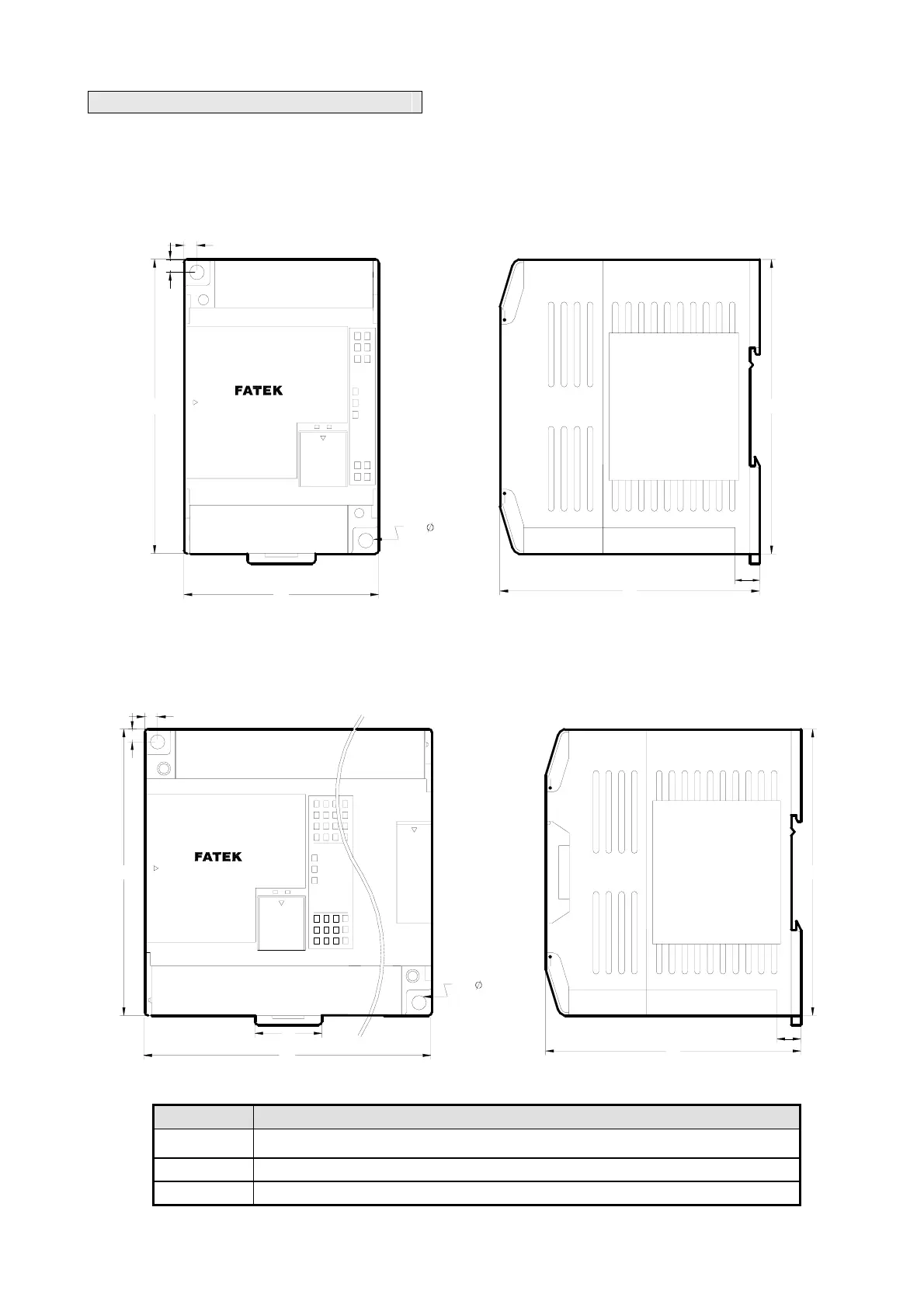

1.8 Drawings with External Dimensions
(1) Outlook I：
Main Unit：FB
S-10M△, FBS-14M△
Expansion Module：FBS-16Y,FBs-16XY, FBS-20X
＊ (Main Unit and Expansion Module have the same type of base, with different top cover, as shown in the figure)
4
4
80
60
90
PROGRAMMABLE
CONTROLLER
2 - 4.5
90
7.5
(2) Outlook II：
Main Unit：FB
S-20M△, FBS-24M△, FBS-32M△, FBS-40M△, FBS-60M△
Expansion Module：FBS-24XY(◎), FBS-40XY(◎), FBS-60XY(◎), FBS-16TC, FBS-16RTD
90
W
PROGRAMMABLE
CONTROLLER
4
4
2 - 4.5
90
80
7.5
21
W Model
90mm
FB
S-20M△, FBS-24M△, FBS-24XY(◎), FBS-16TC, FBS-16RTD
130mm FBS-32M△, FBS-40M△, FBS-40XY(◎)
175mm FBS-60M△, FBS-60XY(◎)
units：mm
units：mm
