H1-3

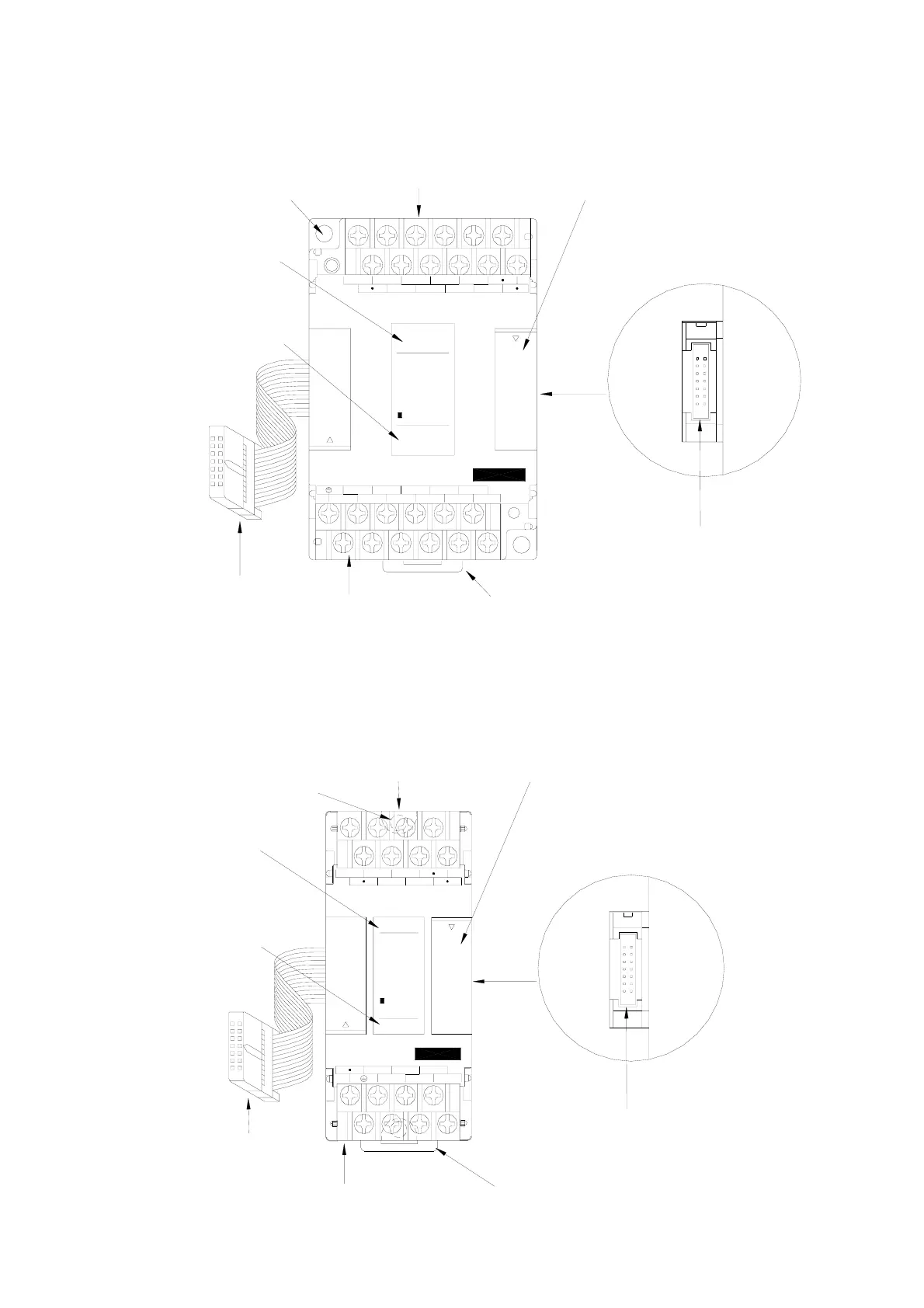

z Expansion unit/module with 60mm width case: [-16XY◇, -16Y◇, -20X ]
Expansion cable
connector
DIN RAIL tab
I/O terminal block
Screw hole
ψ4.5 × 2
Output expansion slot
Output status
indicator
8
3
C1
Y1
Y2
Y3
C3
Y4
POW
67
2I
Y8Y6
Y5
C5
Y7
( )
OUT Y
45
8
3
I/O terminal block
S/S
2
I
7
6
X1
X2
X3
X8
54
( )
IN X
X6X4
X5
X7
Output expansion slot
Front view of output expansion slot
with cover plate removed
FBs-16XYR
Output expansion
slot cover plate
z Expansion module with 40mm width case: [ -8XY◇, -8Y◇, -8X, -6AD, -2DA, -4DA, -4A2D, -2A4TC,
-2A4RTD,-7SG1, -7SG2, -2TC, -6TC, -6RTD, -CM5H, -6NTC, -4PT,
-1LC, -1HLC, -VOM ]
Screw hole
ψ4.5 × 2
Expansion cable
connector
Output status
indicator
Input status
indicator
DIN RAIL tab
I/O terminal block
POW
OUT Y
C1
Y1
I
2
Y3
C3
Y2
Y4
( )
43
X2
2I
S/S
X1
X4
4
3
( )
IN X
X3
I/O terminal block
Front view of output expansion slot
with cover plate removed
FBs-8XYR
Output expansion slot
cover plate
Output expansion slot
