Basic Function Instruction
6-11
RST D P
RESET
(Reset the coil or register to 0)
RST D P
B15 B0
↓ ↓
D R0 1 101111011111110
Ø
X0＝
B15 B0
↓ ↓
D R0 0 000000000000000

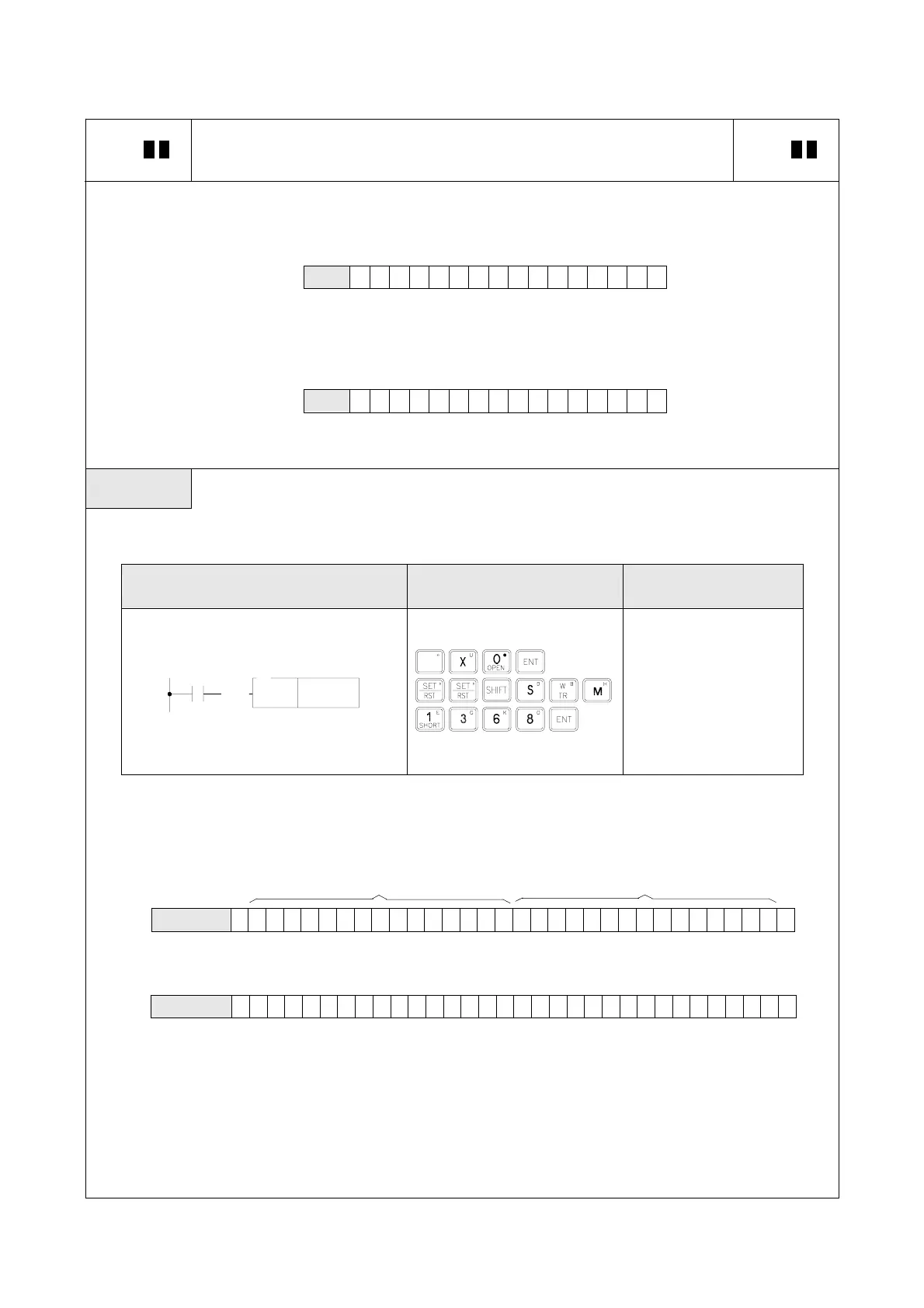

Example 3 32-Bit Register Reset
Ladder Diagram Key Operations Mnemonic Codes
D
X0
EN
RST
WM1368
ORG
ORG X 0
RST D WM1368
M1399 WM1384 WM1368 M1368
↓ ∣ ↓
D WM1368 0 1 1 0 1 1 1 0 0 0 0 0 1 1 0 1 1 1 0 1 1 1 0 1 1 1 0 1 1 1 0 1
Ø
X0＝1
D WM1368 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
