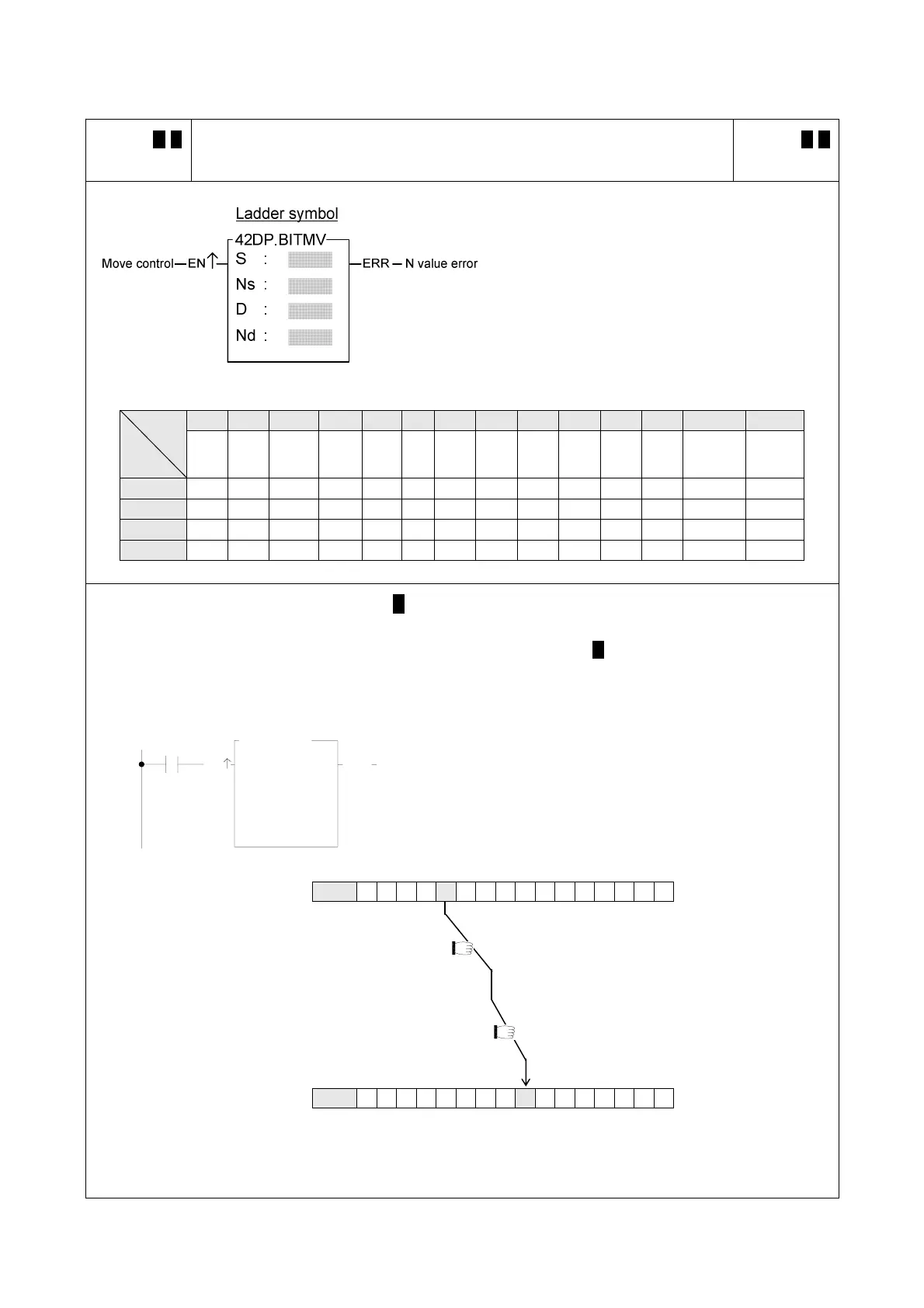

FATEK FBs-CB2 - BIT MOVE (FUN 42 BITMV)

Advanced Function Instruction
7-17
FUN 42 D P
BITMV
BIT MOVE
FUN 42 D P
BITMV
S : Source data to be moved
Ns : Assign Ns bit within S as source bit
D : Destination register to be moved
Nd : Assign Nd bit within D as target bit
S, Ns, D, Nd may combine with V, Z, P0~P9 to
serve indirect address application
WX WY WM WS TMR CTR HR IR OR SR ROR DR K XR
Range
Ope-
rand
WX0
∣
WX240
WY0
∣
WY240
WM0
∣
WM1896
WS0
∣
WS984
T0
∣
T255
C0
∣
C255
R0
∣
R3839
R3840
∣
R3903
R3904
∣
R3967
R3968
∣
R4167
R5000
∣
R8071
D0
∣
D4095
16/32-bit
+/- number
V、Z
P0~P9
S ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
Ns ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ 0～31 ○
D ○ ○ ○ ○ ○ ○ ○ ○* ○* ○ ○
Nd ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ 0～31 ○
z When move control "EN" = 1 or "EN↑" ( P instruction) changes from 0 to 1, will move the bit status specified
by Ns within S into the bit specified by Nd within D.
z When the operand is 16 bit, the effective range of N is 0~15. For 32 bit ( D instruction) operand the effective
range is 0~31. N beyond this range will set the N value error flag "ERR" to 1, and do not carry out this
instruction.
X0
EN
S :
Ns :
11
WX 0
42P.BITMV
ERR
D :
Nd :
R 0
7
z The instruction at left moves the status of B11 (X11)
within S into the B7 position within D. Except bit B7,
other bits within D does not change.
X15 X11 X0
S
WX0 1
Ns＝11─────
Ø
X0＝
Nd＝7 ────────
D R0 1
B15 B7 B0
