FATEK FBs-CB2 - CUMULATIVE TIMER (FUN87;FUN88;FUN89)

Advanced Function Instruction
7-74
FUN89/FUN89D (T1S)
FUN88/FUN88D (T.1S)
FUN87/FUN87D (T.01S)
CUMULATIVE TIMER
FUN89/FUN89D (T1S)
FUN88/FUN88D (T.1S)
FUN87/FUN87D (T.01S)
z Off delay energizing timer:
X0
TIM
CV :
10
R 0
89.T1S
TUP
Y0
NUP
EN
PV :
z This timer's output Y0 is usually
de-energized. When this timer's input control
X0 is off, only after delay by 10 sec will
output Y0 become energized (ON).
z Off delay de-energizing timer:
X0
TIM
CV :
PV :
10
R 0
89.T1S
TUP
Y0
NUP
EN
z This timer's output Y0 is usually energized.
When this timer's timing control X0 is off,
only after delay by 10 sec will output Y0
become de-energized (OFF).

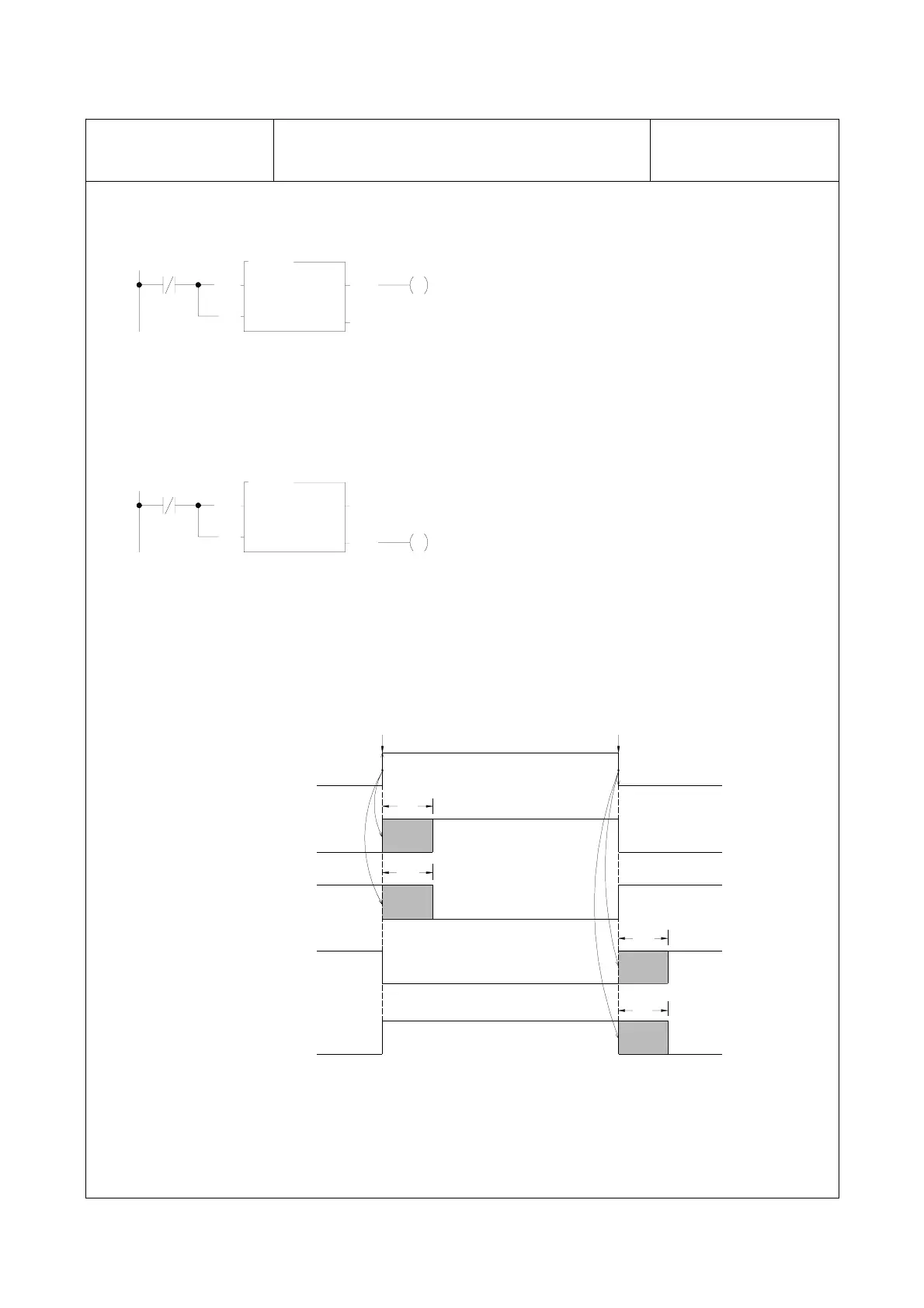

z The diagram below shows the relation on input and output for the above 4 kinds of timers.
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
"ON" (X0 pressed down)
"OFF" (X0 released)
X0
ON delay energizing
ON delay de-energizing
OFF delay energizing
OFF delay de-enrgizing
10S
10S
10S
10S
