H1-18

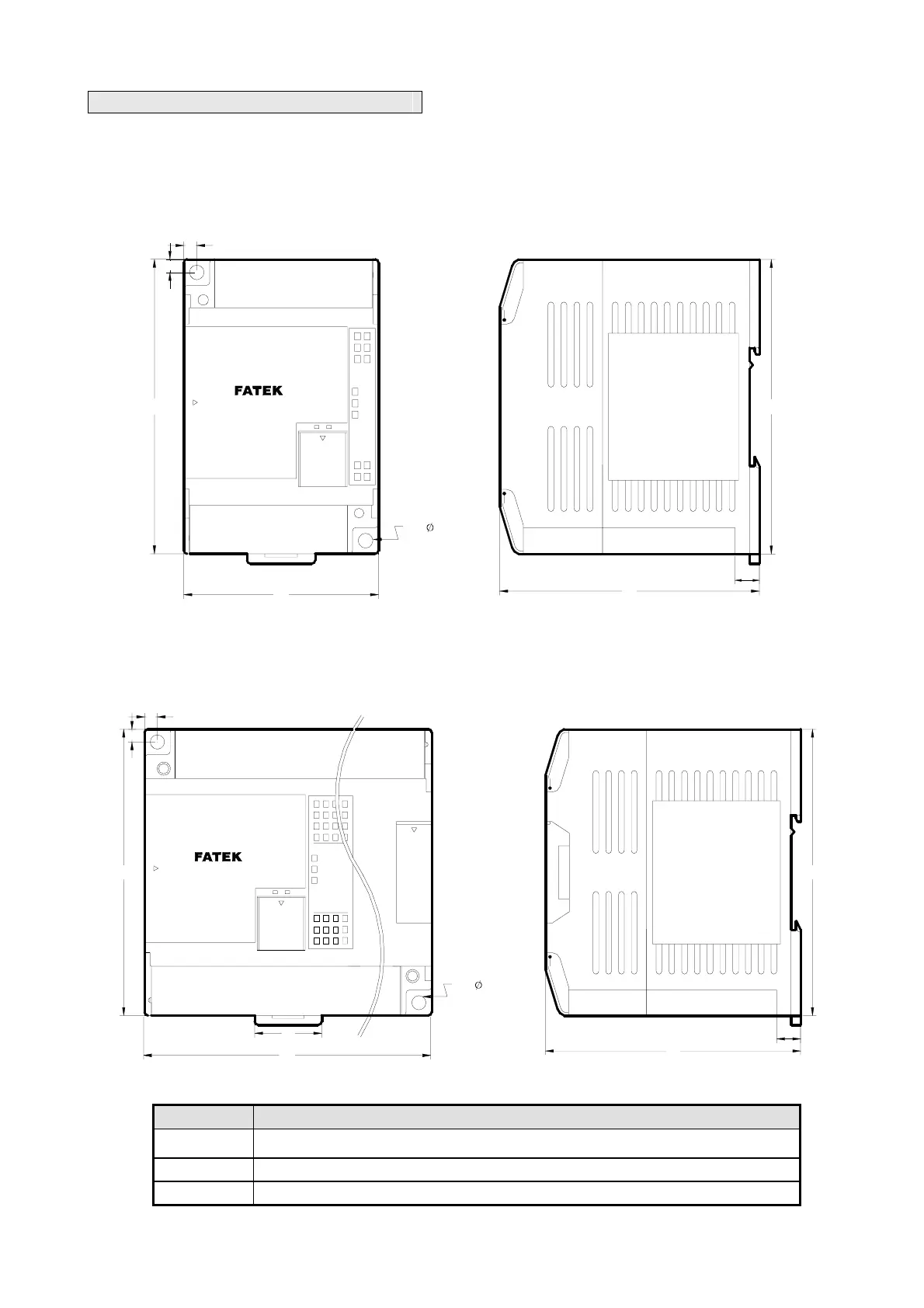

1.8 Drawings with External Dimensions
(1) Outlook I：
Main Unit：FB
S-10M△, FBS-14M△
Expansion Module：FB
S-16E△, FBS-20EX
＊ (Main Unit and Expansion Module have the same type of base, with different top cover, as shown in the figure)
4
4
80
60
90
PROGRAMMABLE
CONTROLLER
2 - 4.5
90
7.5
(2) Outlook II：
Main Unit：FB
S-20M△, FBS-24M△, FBS-32M△, FBS-40M△, FBS-60M△
Expansion Module：FB
S-24EA(P), FBS-40EA(P), FBS-60EA(P), FBS-TC16, FBS-RTD16
90
W
PROGRAMMABLE
CONTROLLER
4
4
2 - 4.5
90
80
7.5
21
W Model
90mm
FBS-20M△, FBS-24M△, FBS-24EA(P), FBS-TC16, FBS-RTD16
130mm FBS-32M△, FBS-40M△, FBS-40EA(P)
175mm FBS-60M△, FBS-60EA(P)
units：mm
units：mm
