Advanced Function Instruction
7-140

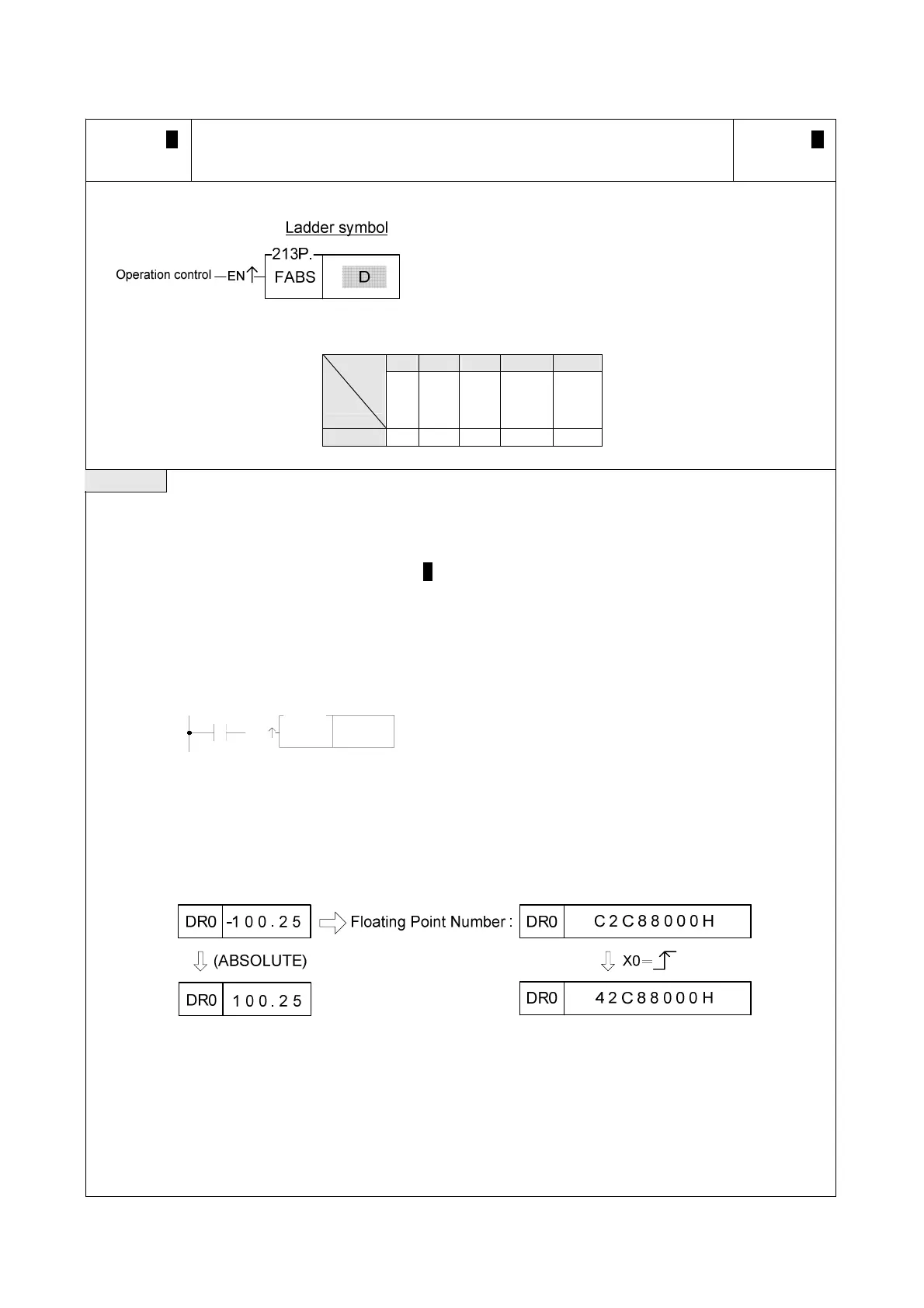

FUN 213 P
FABS
FLOATING POINT NUMBER ABSOLUTE VALUE
FUN 213 P
FABS
D : Register to be taken absolute value
D may combine with V, Z, P0~P9 to serve indirect
address application
HR ROR DR K XR
Range
Operand
R0
∣
R383
9
R5000
∣
R8071
D0
∣
D4095
Integer
16 Bit
number
V、Z
P0～P9
D ○ ○* ○ ○
Description
z The format of floating point number of Fatek-PLC follows the IEEE-754 standard. For detail explanation of the
format please refer to 5.3 (Numbering System) page 5-9.
z When operation control "EN" = 1 or "EN↑" ( P instruction) from 0 to 1, calculate the absolute value of the
floating point number register specified by D, and write it back into the original D register.
R0
X0
EN
213P.
FABS
z The instruction at left calculates the absolute
value of the DR0 register, and stores it back in
DR0.
