Advanced Function Instruction
7-16

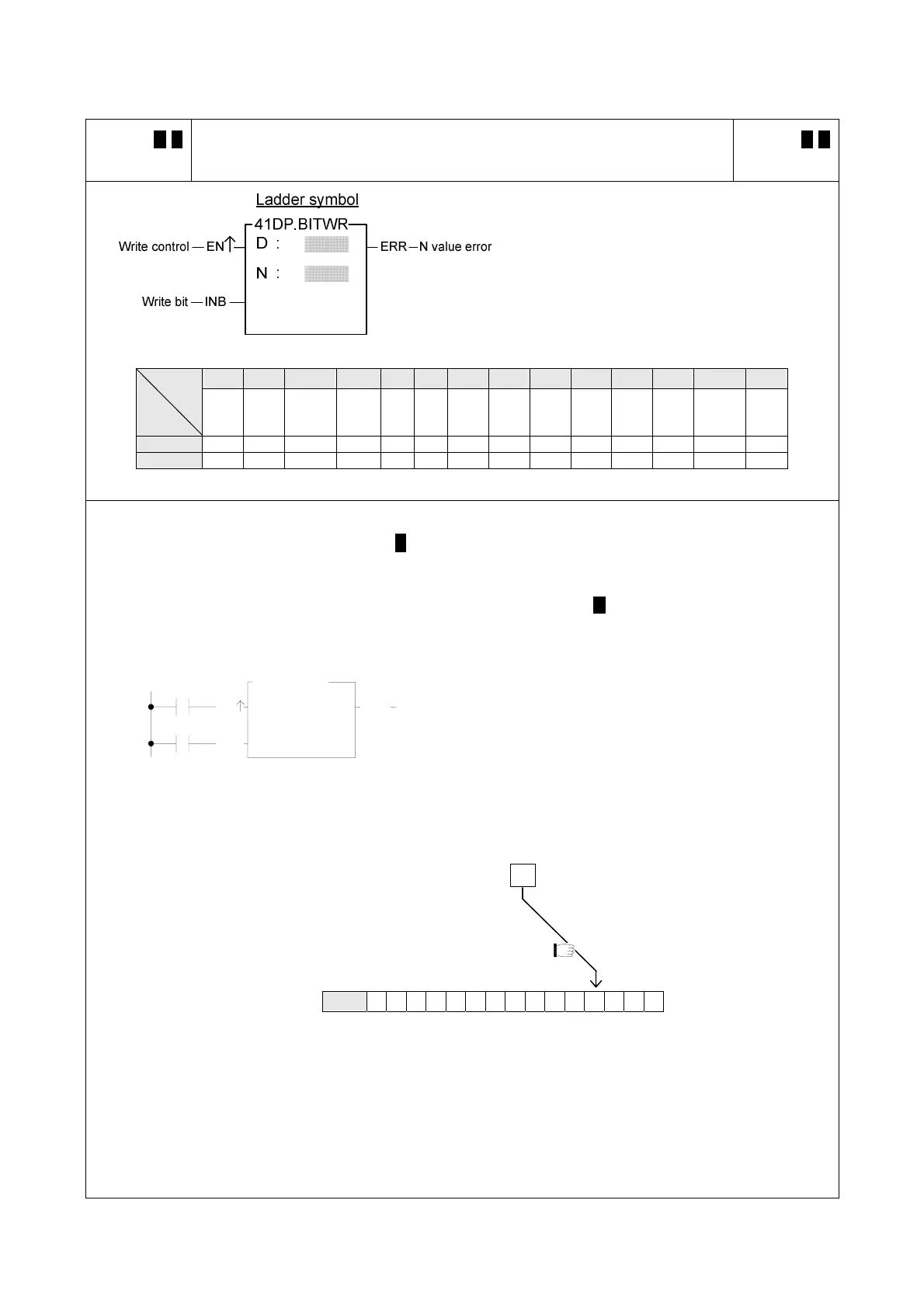

FUN 41 D P
BITWR
BIT WRITE
FUN 41 D P
BITWR
D : Register for bit write
N : The bit number of the D register to be
written.
D, N may combine with V, Z , P0~P9 to serve
indirect address application
WX WY WM WS TMR CTR HR IR OR SR ROR DR K XR
Range
Ope-
rand
WX0
∣
WX240
WY0
∣
WY240
WM0
∣
WM1896
WS0
∣
WS984
T0
∣
T255
C0
∣
C255
R0
∣
R3839
R3840
∣
R3903
R3904
∣
R3967
R3968
∣
R4167
R5000
∣
R8071
D0
∣
D4095
0 0
∣ or ∣
15 31
V、Z
P0~P9
D ○ ○ ○ ○ ○ ○ ○ ○* ○* ○ ○
N ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
z When write control "EN" = 1 or "EN↑" ( P instruction) changes from 0 to 1, will write the write bit (INB) into
the Nth bit of register D.
z When the operand is 16 bit, the effective range of N is 0~15. For 32 bit ( D instruction) operand it is 0~31. N
beyond this range, will set the N value error flag "ERR" to 1, and do not carry out this instruction.
EN
41P.BITWR
D : R 0 ERR
X0
3
N :
X1
INB
z The instruction at left writes the status of the write bit
INB into B3 of R0. Assuming
X1 = 1, the result will be as follows:
X1 1
N＝3─────────────
Ø
X0＝
D
R0 1
B15 B3 B0
Bits other than B3 remain unchanged
