Advanced Function Instruction
7-33
FUN56 D P
G→B
GRAY - CODE TO BINARY - CODE CONVERSION
FUN56 D P
G→B

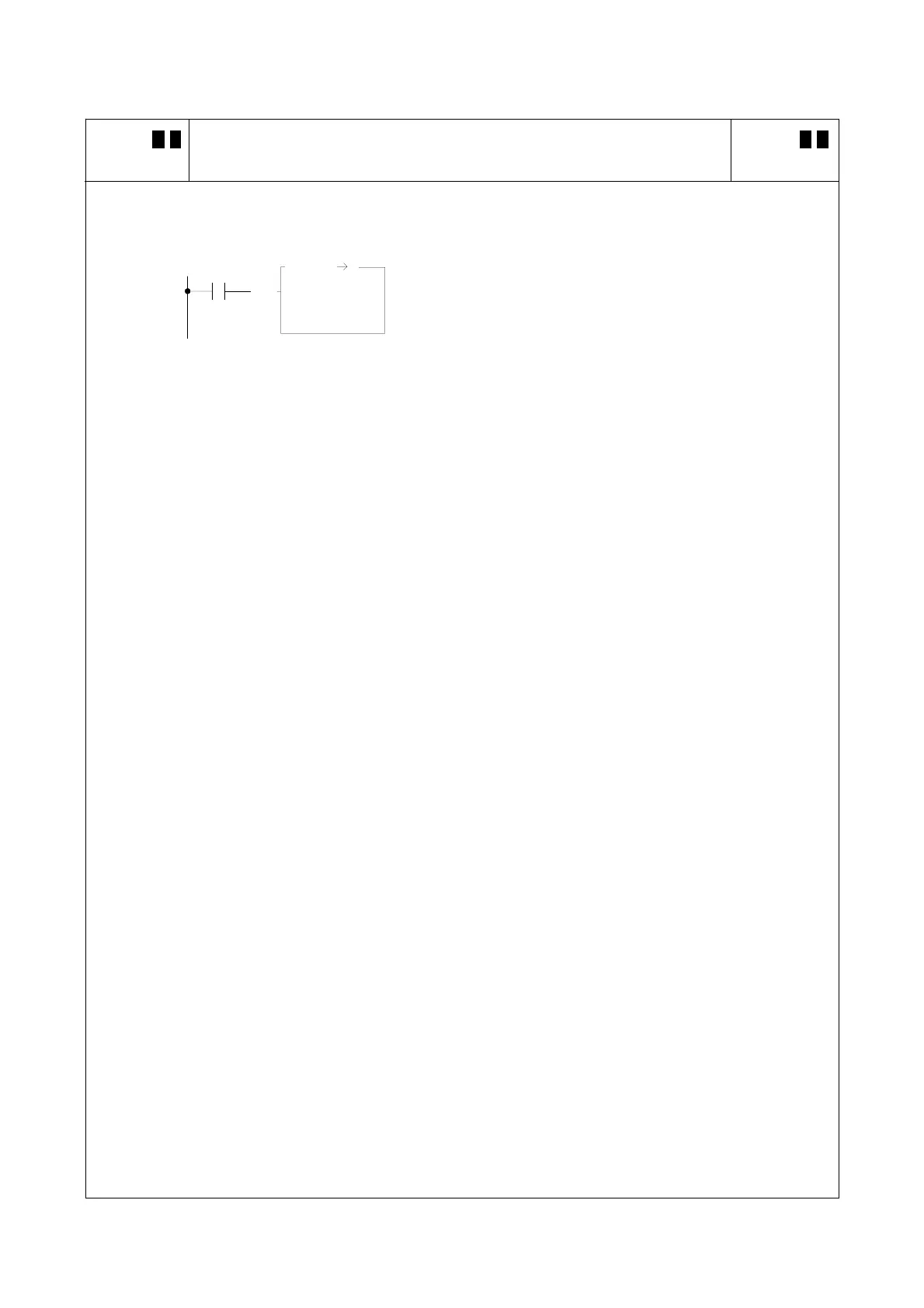

Example 2: When M0 =1, it will perform the 32-bit code conversion
S :
D :
M0
EN
D0
D100
56DP.G B
˙ Converting the 32-bit Gray-code in DD0 into
Binary-code, and then storing the result into
DD100.
DD0＝ 00110111001001000010111100010100B Î DD100＝ 00100101110001111100101000011000B
