Advanced Function Instruction
7-121

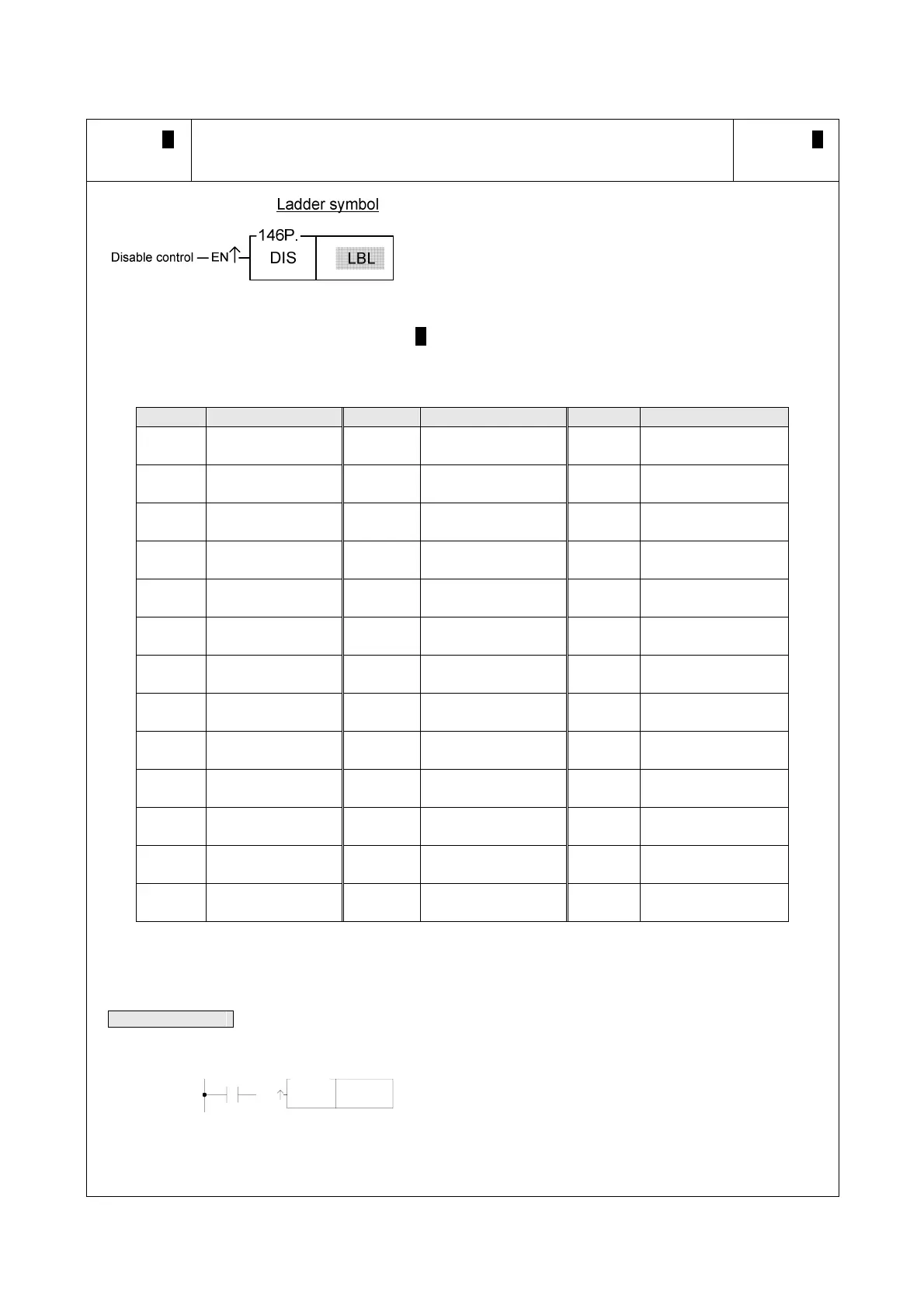

FUN146 P
DIS
DISABLE CONTROL OF THE INTERRUPT AND PERIPHERAL
FUN146 P
DIS
LBL : Interrupt label intended to disable or peripheral name to
be disabled.
z When prohibit control “EN” =1 or “EN↑” ( P instruction) changes from 0→1, it disable the interrupt or
peripherial operation designated by LBL.
z The interrupt label name is as follows:
LBL name Description LBL name Description LBL name Description
HSTAI
HSTA High speed
counter interrupt
X4+I
X4 positive edge
interrupt
X10+I
X10 positive edge
interrupt
HSC0I
HSC0 High speed
counter interrupt
X4− I
X5 negative edge
interrupt
X10− I
X10 negative edge
interrupt
HSC1I
HSC1 High speed
counter interrupt
X5+I
X5 positive edge
interrupt
X11+I
X11 positive edge
interrupt
HSC2I
HSC2 High speed
counter interrupt
X5− I
X5 negative edge
interrupt
X11− I
X11 negative edge
interrupt
HSC3I
HSC3 High speed
counter interrupt
X6+I
X6 positive edge
interrupt
X12+I
X12 positive edge
interrupt
X0+I
X0 positive edge
interrupt
X6− I
X6 negative edge
interrupt
X12− I
X12 negative edge
interrupt
X0− I
X0 negative edge
interrupt
X7+I
X7 positive edge
interrupt
X13+I
X13 positive edge
interrupt
X1+I
X1 positive edge
interrupt
X7− I
X7 negative edge
interrupt
X13− I
X13 negative edge
interrupt
X1− I
X1 negative edge
interrupt
X8+I
X8 positive edge
interrupt
X14+I
X14 positive edge
interrupt
X2+I
X2 positive edge
interrupt
X8− I
X8 negative edge
interrupt
X14− I
X14 negative edge
interrupt
X2− I
X2 negative edge
interrupt
X9+I
X9 positive edge
interrupt
X15+I
X15 positive edge
interrupt
X3+I
X3 positive edge
interrupt
X9− I
X9 negative edge
interrupt
X15− I
X15 negative edge
interrupt
X3− I
X3 negative edge
interrupt
z In practical application, some interrupt signals should not be allowed to work at certain situation. To achive
this, this instruction may be used to disable the interrupt signal.
Program example
M0
EN
146.P
DIS
X2+I
z When M0 changes from 0→1, it prohibits X2 from
sending interrupt when X2 changes from 0→1.
