9. Installation of the cleats
Use only the cleats provided (SPD®
compatibile) or the original Shimano® SM-
SH51 cleats.
Align the cleats properly according to your
needs and tighten the mounting bolts with
a torque of 4-6Nm.
The use of other types of cleats might not be suitable,
cause potential damage to the product and void the
warranty.
To x the cleats, use the mounting bolts provided with
them.
Tightening torque: 4-6 Nm
Regularly check the status of the cleats
• Check that the holes where the mounting bolts are
screwed in are not damaged/worn out
• Check that the cleats are well tightened to the shoes.
Carefully read the information contained in the
guarantee and safety manual.

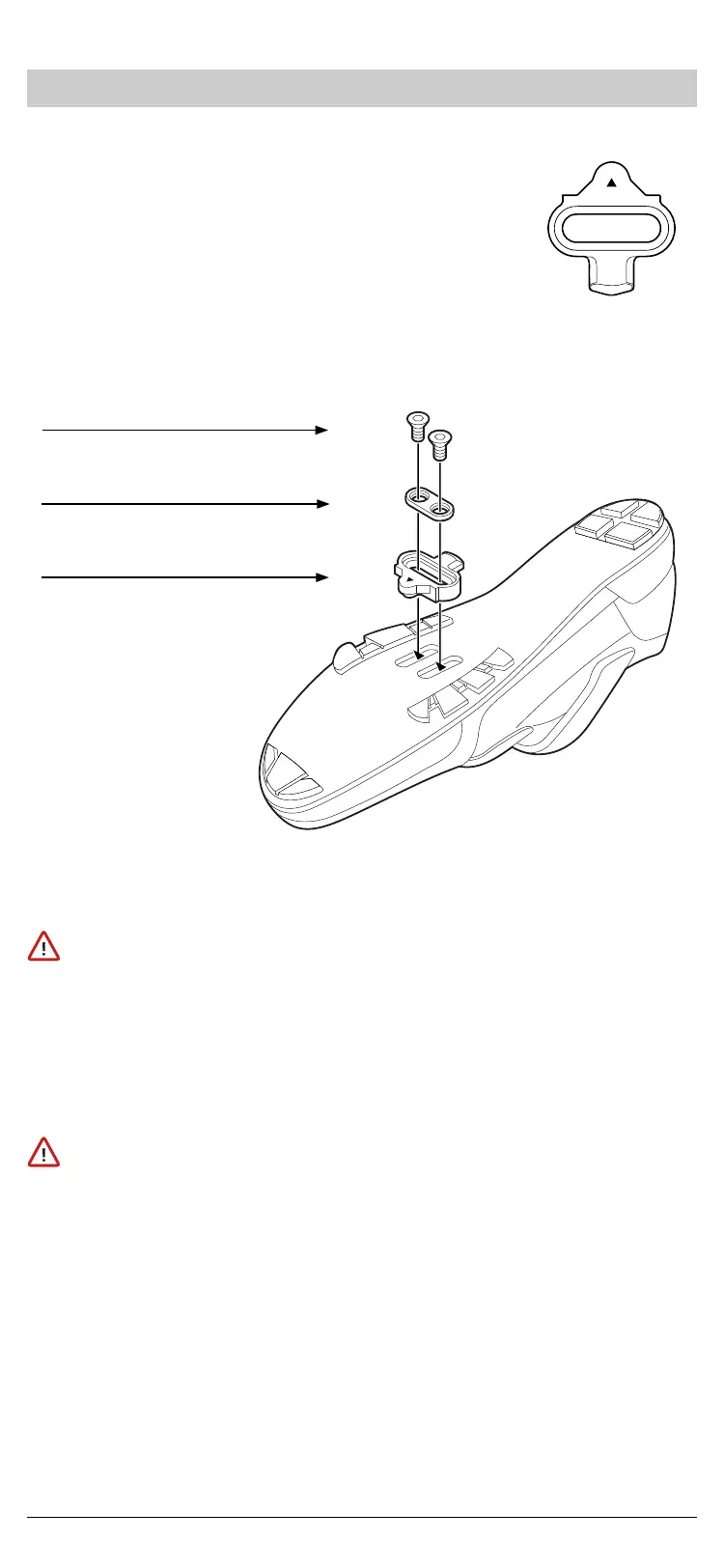

Front
A
B
C
Mounting bolts
Cleat adapter
Cleat
Fig. 10
