23. Spare parts
For more information on spare parts, visit the shop on the
website https://cycling.favero.com

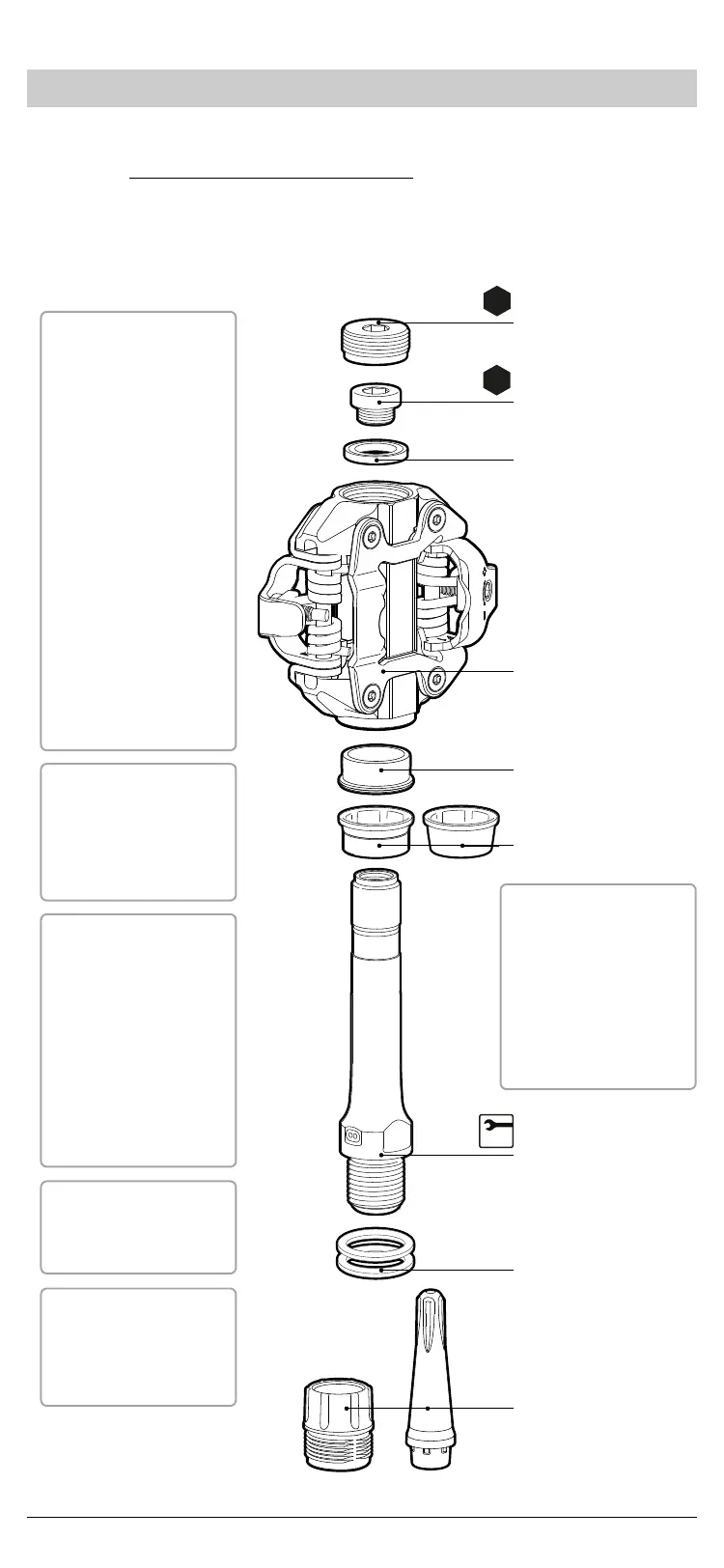

Exploded view of the components
SENSOR:
Art. 773-00-20
1x Left pedal PRO
sensor
Art. 773-00-21
1x Right pedal PRO
sensor
PEDAL BODY:
Left Kit PRO MX
Art. 773-10-20
1x left pedal body
1x end cap
1x screw cap (black)
1x oil seal
1x axial washer
1x greasing kit tool
Right Kit PRO MX
Art. 773-10-21
1x right pedal body
1x end cap
1x screw cap (red)
1x oil seal
1x axial washer
1x greasing kit tool
Repair kit:
Art. 773-00-50
2x end cap
1x screw cap (red)
1x screw cap (black)
2x axial washers
2x oil seals
4x washers
1x greasing tools kit
1x rings set
Rings Set:
Art. 773-00-38
2x metal red rings
1x bushing only for
Assioma PRO MX-1.
Greasing tools kit:
Art. 773-00-37
Plastic tools for the
greasing process
Washers set:
Art. 773-00-36
4x washers
6
6
End cap
Screw cap sx (black)
Screw cap dx (red)
Axial washer
Oil seal
Rings and Bushing
Sensor
Washers
Greasing tools kit
Pedal body
4-6Nm
5-7Nm
30-40Nm
