2. Make sure to shift the
chain to the largest,
outermost chainring
and the smallest
cassette sprocket.
See Fig. 6
3. Check the distances to avoid any kind of interference
• When stationary, rotate the crank-arm manually until
performing a complete rotation
• The spindle cap must be at a distance bigger than
4mm both from the bike chain and the frame
• If you use crank boots, make sure they don’t interfere
with the bike chain or rear triangle.
See Fig. 7.

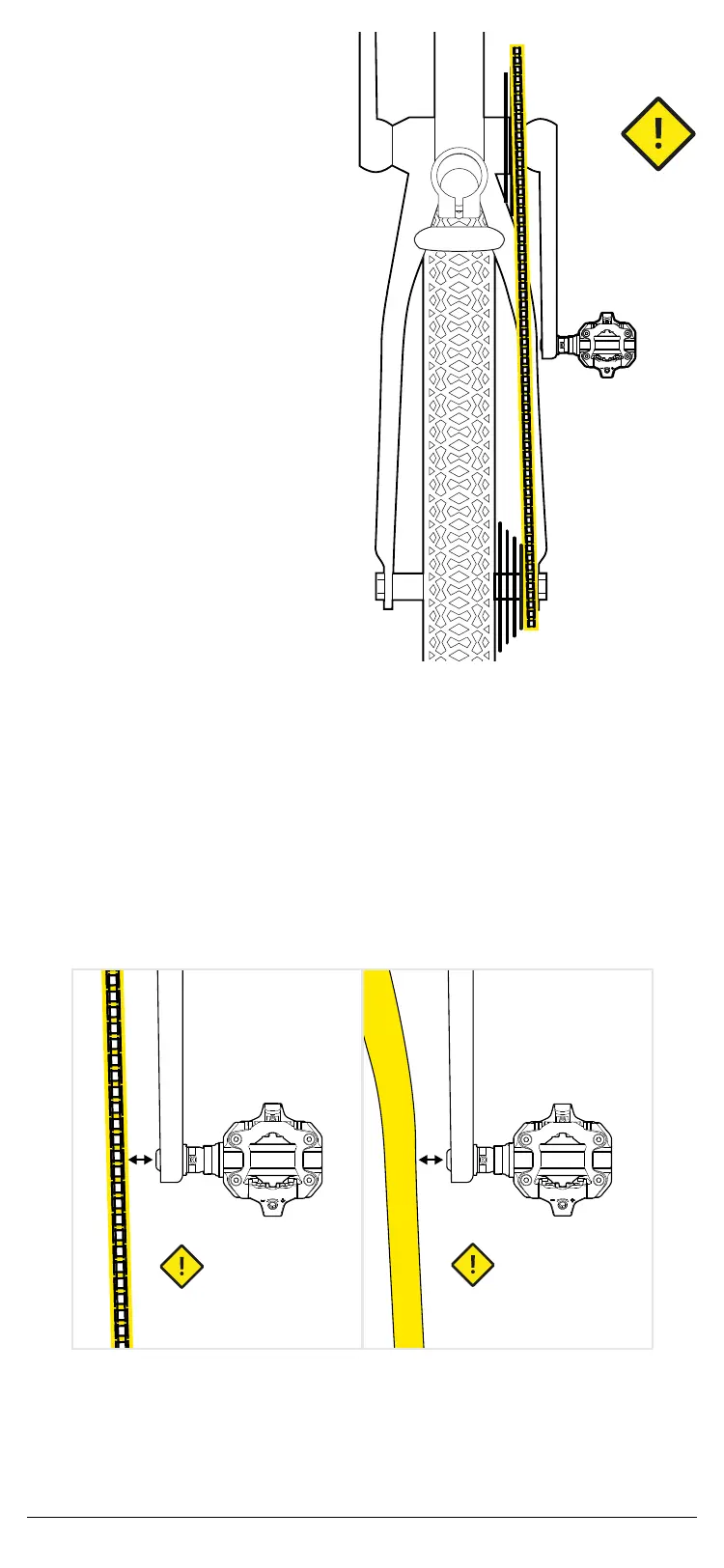

Fig. 6
>4mm
>4mm
Fig. 7
