All the Red, Green, and White lights switch on by
turns for a second, followed for another second by
the remaining displays (see Fig. 6).

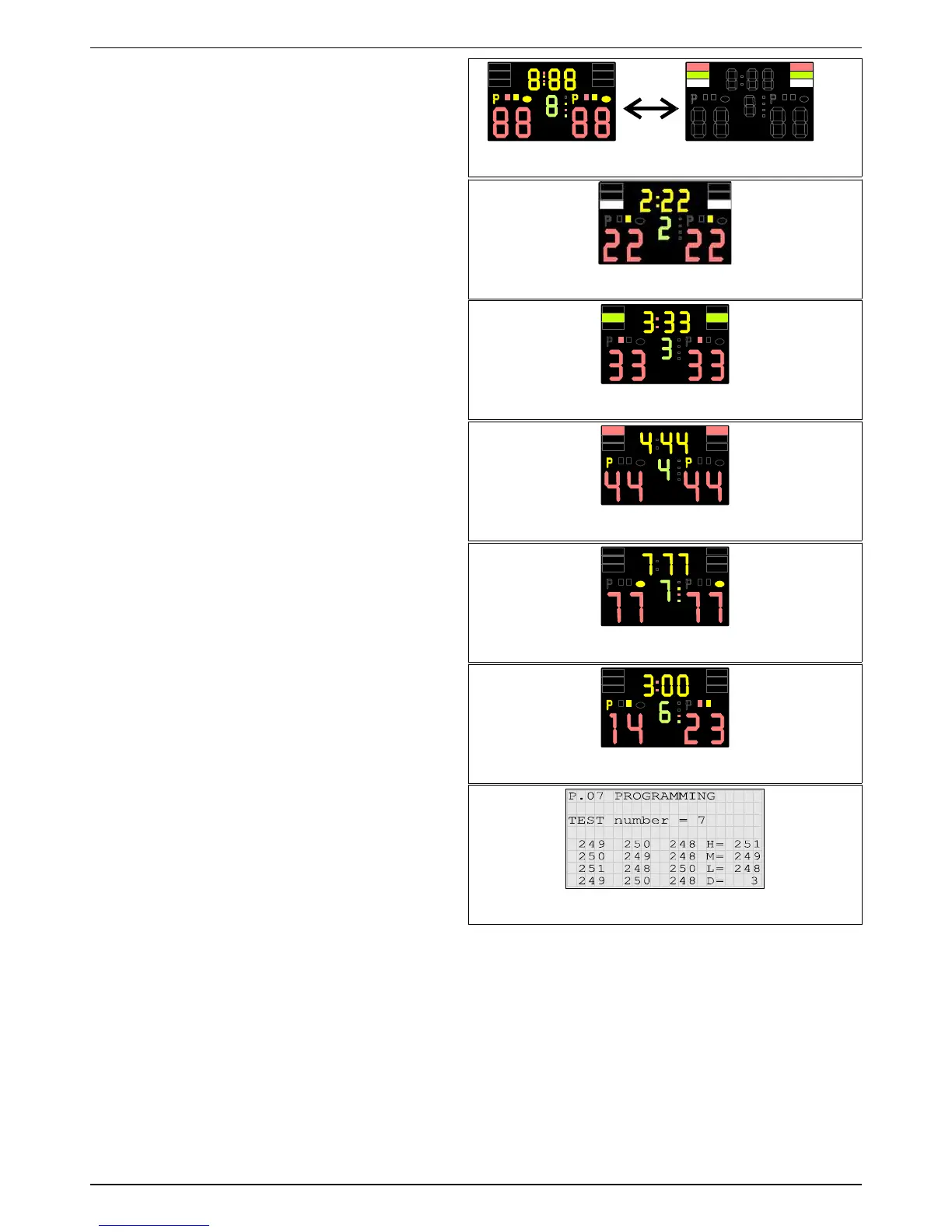

TEST 2 LED test, phase 1.
Switches on the LEDs as in Fig. 7.
TEST 3 Test LED, phase 2.
Switches on the LEDs as in Fig. 8.
TEST 4 Test LED, phase 3.
Switches on the LEDs as in Fig. 9.
TEST 5 Test LED, phase 4.
Switches on the LEDs as in Fig. 10.
TEST 6 Visualization for sales display.
Switches on the LEDs as in Fig. 11 and also
switches on, continuously every second, the
different lights signaling hits.
This test is useful when you want to display the
apparatus for sale or call attention to the
brightness of its various lights.
TEST 7 Verify the circuits of the weapons.
This test is used by the manufacturer for testing
the internal electronic circuits that analyze all the
contact combinations that take place between
fencers. It can also be useful to the user for
distinguishing if the indications of faults are due to
failure of the internal circuits or to defects in the
external connections.
The display panel (see Fig. 12) shows 12 values
in the three columns to the left, and in the far right
column, the corresponding values Higher (H), Middle (M), Lower (L) and Deviation (D). When there is no connection
to the 7 weapon sockets, the values displayed must be M=1023 and D=0. Whereas when short-circuiting all 7
sockets among themselves, the values displayed must be M=250±5 and D=5±5 and a persistent sound should be
heard.
To short-circuit the 7 sockets use a épée body cord for fencing, cut the cable, connect all 6 wires together and make
them come into contact with the piste socket.
