ENGLISH
2. FA-07 VISUAL DISPLAYS
2.1 LED display panel

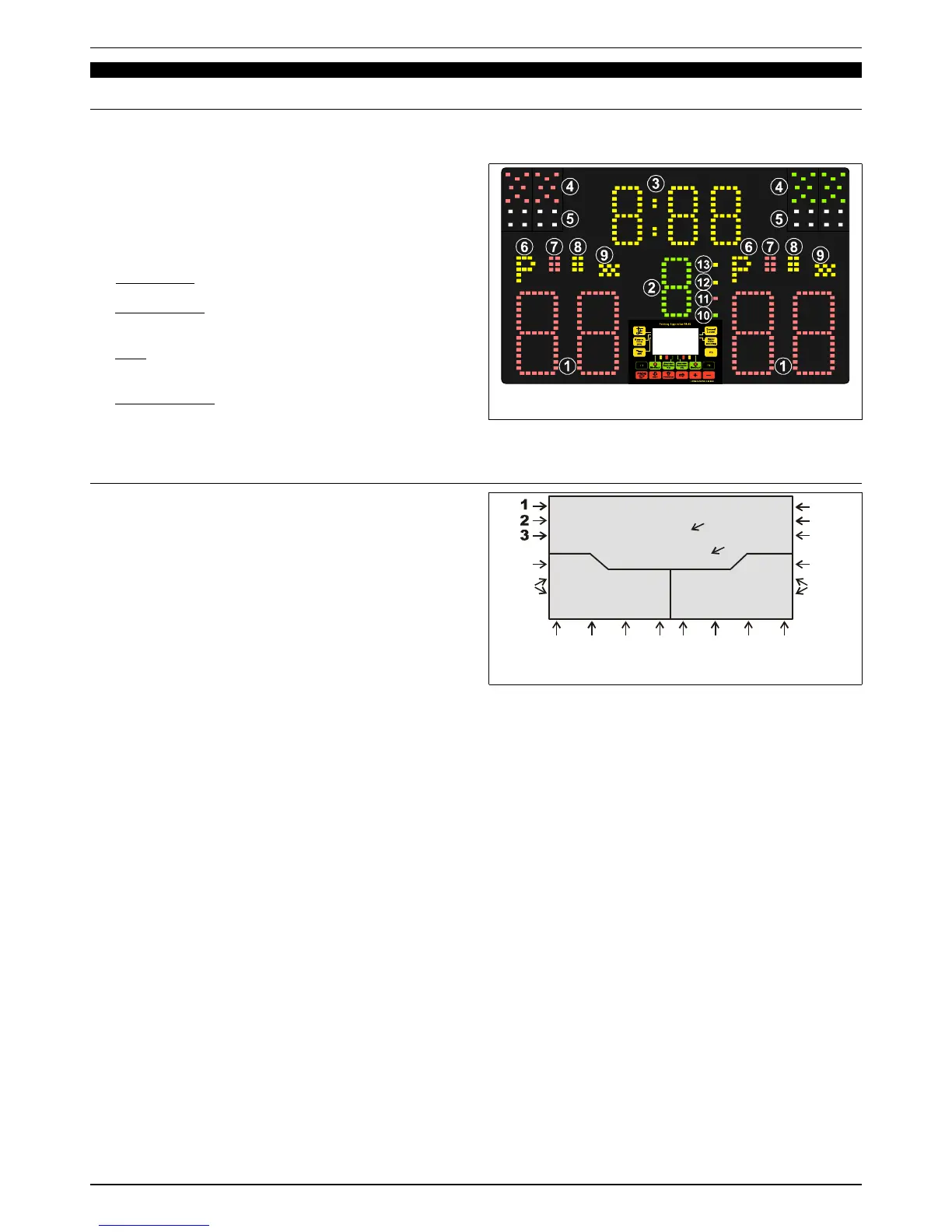

With reference to the numbers indicated in Fig. 1, information shown on the LED display panel is as follows:
1. Scorer.
2. Match counter.
3. Chronometer.
4. Green and red lights.
5. White light.
6. Priority.
7. Red card.
8. Yellow card.
9. Yellow light signalling faults.
10.
Rearmament
light. When lit up, this indicates that the FA-
07 is ready to register hits.
11.
Match running
light. Indicates that the match is under way
and that the FA-07 is continuously transmitting all match
data through the Ethernet port.
12.
LINK
light. Signals LAN communication via the Ethernet
port or, in other words, that the FA-07 recognizes an active
connection with the central management system.
13.
Remote control
light. Lights up every time the FA-07
receives a command from its remote control. If commands
from other remote control devices are received, the light
will ignite only faintly.
2.2 Graphic display panel
With reference to the numbers indicated in Fig. 2, the
information on the main menu’s graphic display panel is as
follows:
1. Selected weapon and version, or else temporary
notification of faults or other information.
2. Rearmament time: [1, 3, 5, Man.]. Rearmament can take
place automatically after 1, 3, or 5 seconds, or else
manually.
3. Start time minutes of chronometer.
4. Nationality of fencers.
5. Names of fencers: as with nationalities, the names of the
fencers appear only when the FA-07 receives the
information from the central system through the LAN
connection.
6. Number of medical interventions [0÷3].
7. Number of yellow cards [0÷1].
8. Number of red cards [0÷15].
9. Status of fencers [A, E, V, D, -]: Abandon, Exclusion, Victoire, Défaite. See description of related key in chapter 3.
10. Automatic counting of épée hits [YES, NO].
11. Sound volume [0 = off, 1, 2, 3 = max].
12. Power supply voltage.
13. Piste number: this appears only when the FA-07 receives the information from the central system through the LAN
connection.
14. Referee’s name: appears only when the FA-07 receives this information from the central system via LAN connection.
FAVERO ELECTRONICS SRL
Page 4 / 16
940-M06-EN FA-07 Manual
12.8v EP E E F IE -T 2 0 05
1
3 :0 0
US A
P IS T E 16
STR OGA NOV A
TAT IAN A
LAWRE NCE
KEL LEY
SM I T H
R US
0 1 1 130 V D
4
5
6 67 78 89 9
5
4
3
Y ES
10
11
12
13
14
Fig. 2: Graphic display information
Fig. 1: LED displays
