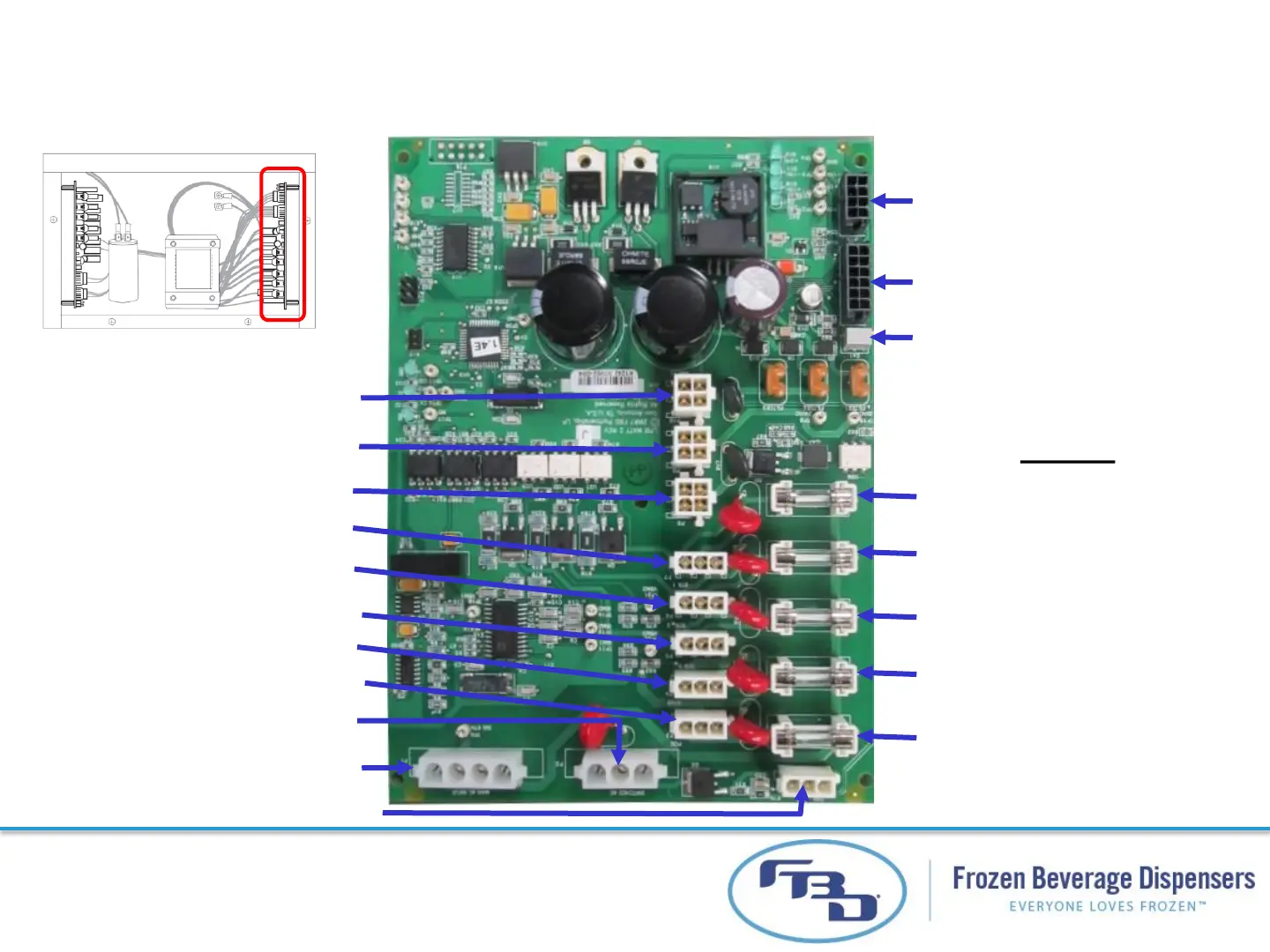

Primary Lower Power board
29
Fluorescent Merchandiser
Light (2.5 amp fuse)
Transformer (2.5 amp fuse)
Beater Motor 2 (2.5 amp fuse)
Beater Motor #1 (2.5 amp fuse)
To Condenser Fan
From Contactor T1 & T2
Transformer (P4)
Beater Motor #3 (P5)
Beater Motor #2 (P6)
Beater Motor #1 (P7)
FUSES
From Contactor L1 & L2
To Contactor Coil 24VAC (P8)
From Transformer
12 & 24VAC (P9)
To Upper Board and LED
Merchandiser(P10)
Beater Motor 3 (2.5 amp fuse)
Voltage Offset Screw
Control Signals to & from Upper
Board
DC Power Supply to Upper
Board
Fluorescent Merchandiser (P3)
