11.6 Refrigeration Schematic Diagrams (771 MFLV and 772 MFLV Dispensers)
Figure 11.13 shows the refrigeration schematic diagram for the 771 multi-flavor dispenser (air-cooled). Figure 11.14
shows the diagram for the 772 multi-flavor dispenser (air-cooled).
FLOW
P
PRESSURE
TRANSDUCER
DEFROST
VALVE & SOLENOID
HEAT EXCHANGER
P
CONDENSER
SCROLL
COMPRESSOR
FILTER
TRANSDUCER
DRIER
PRESSURE
EVAPORATOR
EXPANSION
VALVE & SOLENOID
TUBE-TO-TUBE
S

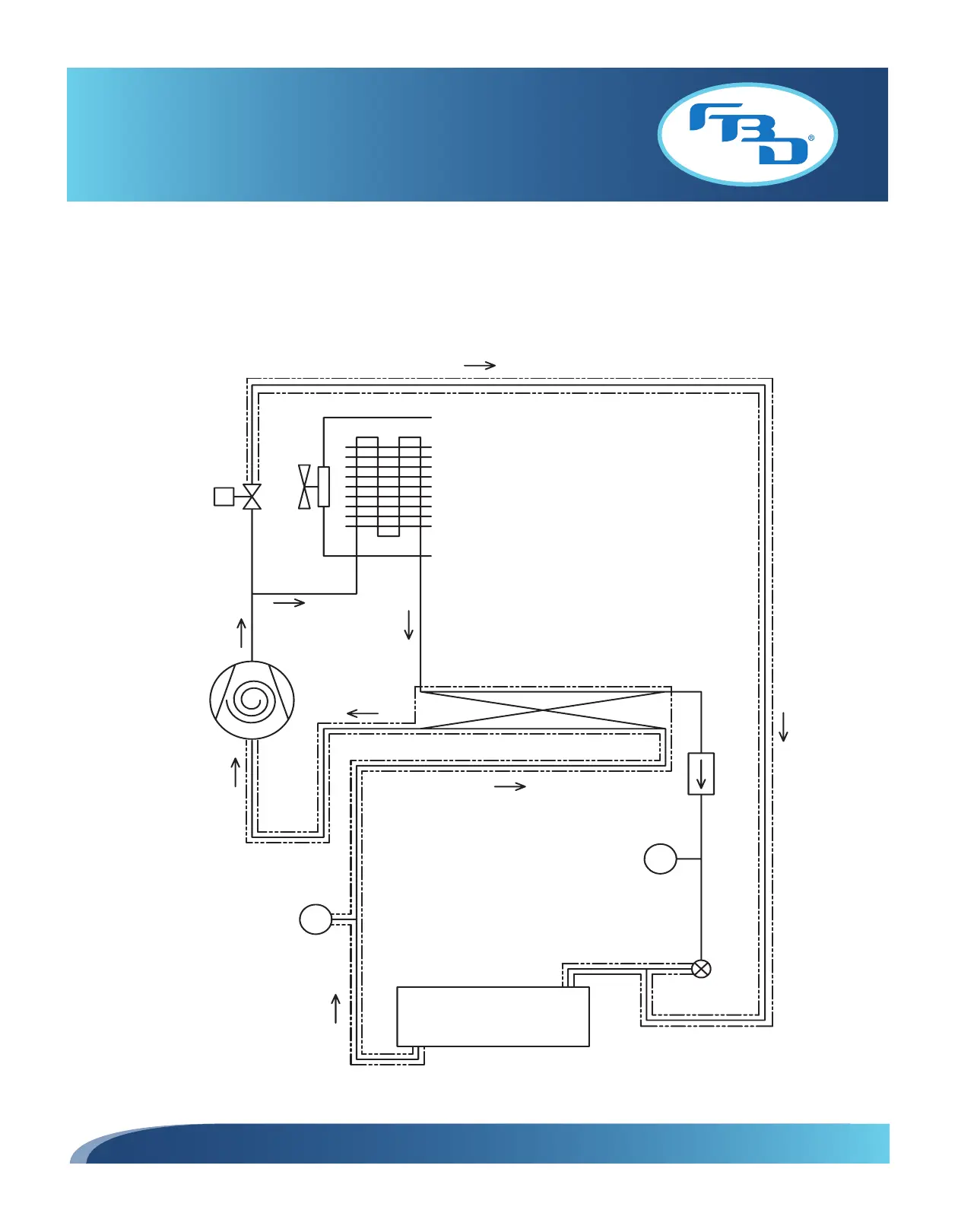

Figure 11.13 Refrigeration Schematic for 771 Multi-Flavor Air-Cooled Dispenser
