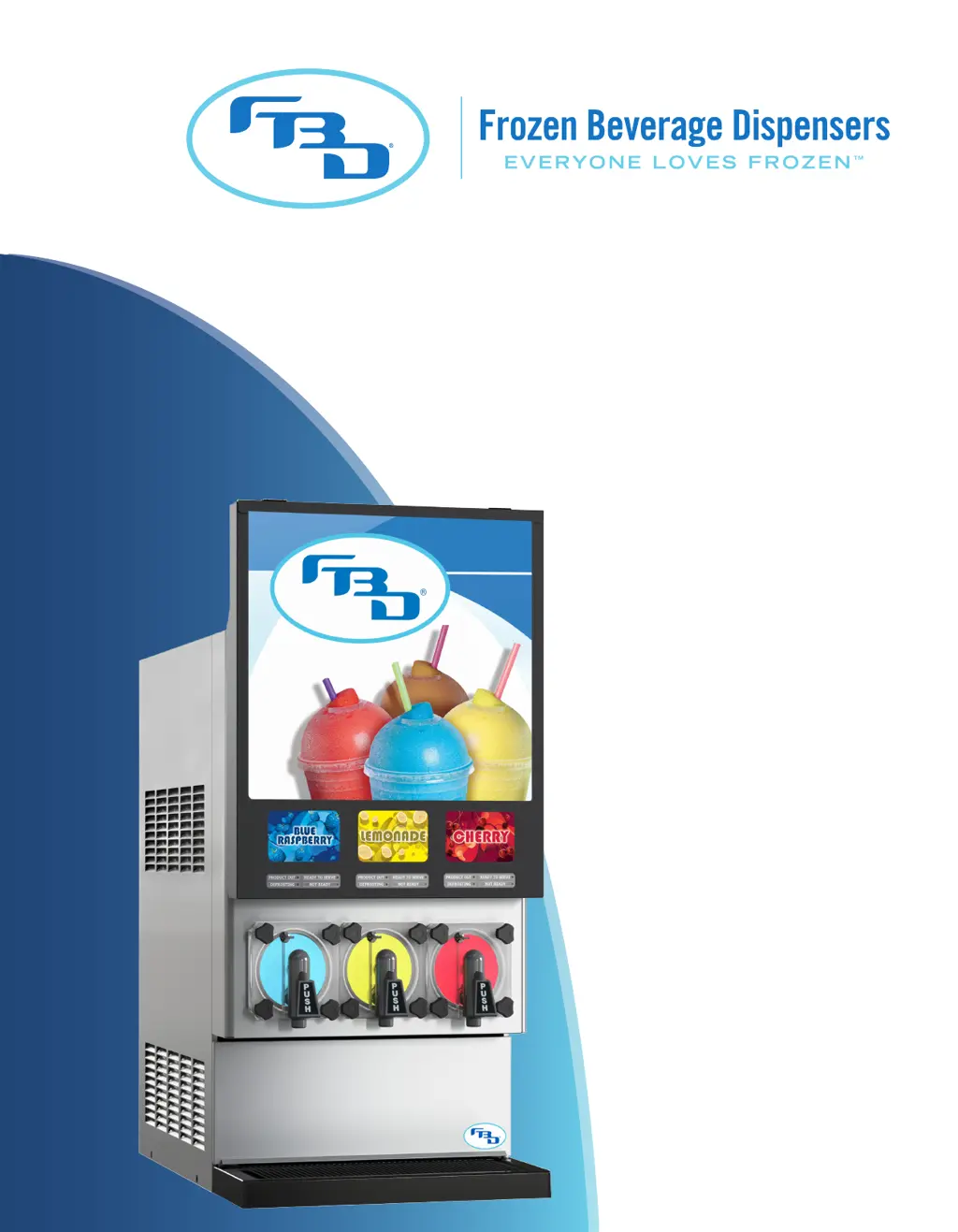

77X SERIES
INSTALLATION &
OPERATION MANUAL
771/772/773/774
24-77XM-0001_01
MODELS

Table of Contents

Other manuals for FBD 772

Preview: Installation And Operation Manual
Installation And Operation Manual42 pages

Questions and Answers

  • T
    Thomas SmithSep 7, 2025
    What to do if the FBD Beverage Dispenser shows 'Syrup Out' error #011, 012, 013, 014?
    • C
      Caitlin PageSep 7, 2025
      If the FBD Beverage Dispenser displays a 'Syrup Out' error, it indicates that the syrup pressure is less than 45 PSIG (310 kPag), especially for the base syrup in multi-flavor dispensers. Here's what you should do: * Replace the empty BIB (Bag-In-Box). * Ensure the gas line is properly connected to the BIB pump. * Check that the BIB pump is operating correctly. * Make sure the gas tank is not empty. * Verify the syrup shutoff valve at the solution module is turned on. * Confirm that any syrup shutoff valves at the back of the dispenser are not turned off. * Ensure the syrup supply pressure at the dispenser reads 70 PSIG (483 kPag), adjusting the regulator if necessary. * Check that the syrup pressure transducer is connected and working properly.
  • S
    slopezAug 25, 2025
    How do I fix 'CO2 Out' on my FBD 772?
    • F
      fhornAug 25, 2025
      To resolve a 'CO2 Out' error on your FBD Beverage Dispenser, replace or refill the CO2 tank. Make sure that the CO2 shutoff valve at the back of the unit isn’t turned off, and ensure the CO2 pressure transducer is connected and working properly. Finally, check that the CO2 supply pressure at the dispenser is reading 70 PSI, and adjust the regulator if needed, because CO2 pressure may be less than 45 PSI.
  • C
    Christopher PerryAug 25, 2025
    What to do if my FBD 772 Beverage Dispenser says 'Water Out'?
    • M
      Mark HoganAug 26, 2025
      To fix a 'Water Out' error on your FBD Beverage Dispenser, make sure the water line to the unit is on and the water shutoff at the solution module is turned on. Ensure the CO2 supply line is connected to the water pump and that the pump is not stalled. Verify the CO2 supply pressure at the dispenser is reading 70 PSI, adjusting the regulator if needed. Also, check that the water pressure transducer is connected and working properly, because water pressure may be less than 45 PSI.
  • D
    dixonaliciaSep 16, 2025
    What does error #200: Return Temperature Sensor mean on my FBD Beverage Dispenser and how do I fix it?
    • E
      Eric ChandlerSep 16, 2025
      Error #200 'Return Temperature Sensor' on your FBD Beverage Dispenser indicates that the refrigeration return (suction) temperature sensor is not reading correctly. To fix it: * Ensure the temperature sensor is plugged in. * Replace the sensor if faulty.
  • J
    Justin MorenoSep 23, 2025
    What does 'MOTOR FAILURE' mean on my FBD Beverage Dispenser and how can I fix it?
    • K
      Kyle EverettSep 23, 2025
      The 'MOTOR FAILURE' message on your FBD Beverage Dispenser indicates that a beater motor is stalled. Run the beater circuit diagnostic sequence to troubleshoot this issue.
  • K
    kthomasSep 12, 2025
    What to do if my FBD Beverage Dispenser displays Error #111, 112, 113, 114: Motor Failure?
    • D
      davidgibbsSep 12, 2025
      If your FBD Beverage Dispenser displays Error #111, 112, 113, 114 indicating 'Motor Failure', it means the beater motor is not operating. To solve this: * Run a beater circuit diagnostic to determine the problem or refer to error #58X in this manual. * Check to make sure the beater motor is plugged in.
  • H
    hwadeSep 2, 2025
    What does 'Return Temperature Sensor' mean on FBD 772?
    • J
      Jose ThomasSep 2, 2025
      If your FBD Beverage Dispenser displays 'Return Temperature Sensor', ensure the temperature sensor is plugged in. Replace the sensor if faulty, because the refrigeration return (suction) temperature sensor may not be reading correctly.
  • M
    matthewsmichelleSep 2, 2025
    What does 'Refrigeration Malfunction' mean on FBD Beverage Dispenser?
    • B
      bwashingtonSep 3, 2025
      If your FBD Beverage Dispenser displays 'Refrigeration Malfunction', run the fill diagnostic sequence to determine the reason for the failure, because refrigeration pressures may not be in the correct range.
  • M
    Maurice BerrySep 23, 2025
    Why does my FBD Beverage Dispenser say 'CO2 OUT'?
    • J
      Jose JonesSep 23, 2025
      The FBD Beverage Dispenser displays 'CO2 OUT' when the CO2 supply is depleted. Restore the CO2 supply to resolve this. The dispenser will automatically restart.
  • R
    Rebekah CarpenterAug 29, 2025
    Why does my FBD 772 say 'Compressor Ran Too Long'?
    • R
      Ryan RoweAug 29, 2025
      If your FBD Beverage Dispenser shows 'Compressor Ran Too Long', and the location is an extreme volume venue such as a festival, contact FBD service for instructions on adjusting the timer. Otherwise, run the refrigeration diagnostic sequence to determine the reason for the failure, because the compressor may have run continuously for more than 90 minutes.

Summary

Safety Information

Electrical Safety

Ensures proper grounding and safe electrical connections for the dispenser to prevent shock.

Compressed Gas Safety

Details safety procedures for handling compressed gases like CO2 and N2 to prevent hazards.

General Operational Precautions

Provides guidance on dispenser weight, lifting, and maintaining an upright position during handling.

Specifications and Requirements

General Operational Specifications

Lists required pressures, clearances, and refrigerant type for dispenser installation.

Electrical Power Requirements

Details operational voltage, frequency, and current ratings for different dispenser models.

Installation Guidelines

Location Requirements

Specifies ideal indoor location criteria, including level surface and adequate space.

Dispenser Mounting Options

Describes countertop mounting methods, including flush and leg-based installations.

Dispenser Configurations

Universal Gas System

Details multi-gas capabilities and gas types for 771/772 models.

Connecting Electrical Power

Supply Line Connections

Connecting Utilities

Water Supply Connection

Guide to connecting potable water, including backflow prevention devices.

Gas Supply Connection

Instructions for connecting gas supply, regulator settings, and shutoff valves.

Syrup Supply Connection

Guidelines for syrup line connections, tubing size, and pressure considerations.

Initial Startup Procedures

Leak Check and Priming

Procedure for checking all connections for leaks and priming the beverage lines.

First Power-Up Verification

Water Flow Rate and Brix Adjustment

Barrel Filling and Freezing

Dispenser Operation Modes

Defrosting for Quality

Importance of defrosting and scheduling options to maintain optimal drink texture.

Adjusting Drink Quality

Understanding factors affecting drink quality and adjustable electronic settings.

User Interface Navigation

Keypad Layout and Functions

Overview of the keypad buttons and their functions for controlling the dispenser.

Diagnostic and Service Menus

Fault Code History

Accessing and interpreting logged fault codes for troubleshooting.

Service Menu Access

Procedure for accessing specialized menus for trained service technicians.

Maintenance and Calibration

Maintenance Menu Options

Sections for barrel purging, filling, draining, and calibration procedures.

Dispenser Settings

General Settings Configuration

Adjusting serial number, display units, and active charge settings.

Drink Characteristic Settings

Gas and Drink Type Configuration

Setting up gas types and configuring drink expansion for multi-flavor models.

Expansion Adjustment

Modifying the amount of gas in the drink for texture and foam control.

Freeze Adjustment

Adjusting the freezing level of the product for desired consistency.

Gas Configuration

Drink Type Configuration

Expansion and Freeze Adjustments

Adjusting Drink Gas Content

Fine-tuning the gas level (expansion) for optimal drink characteristics.

Adjusting Drink Freezing Level

Modifying the product's frozen state for ideal texture and consistency.

Defrost Scheduling

Manual Defrost Schedule

Operation Scheduling

Manual Component Control

Data Logging and Reset

Restore Factory Defaults

Diagnostic Procedures

Diagnostic Sequence Execution

Running system diagnostics for refrigeration, beater, and fill circuits.

Cleaning and Sanitizing Instructions

General Cleaning Information

Sanitizing Internal Components

Step-by-step guide for sanitizing the dispenser's internal beverage pathways.

Detailed Sanitizing Process

Preventive Maintenance Schedule

Annual Maintenance Tasks

Recommended annual maintenance tasks for optimal dispenser performance.

Air Filter Cleaning

Rear Seal Replacement Procedure

Troubleshooting Common Issues

Home Menu Message Interpretation

Understanding and responding to messages displayed on the dispenser's home screen.

Home Menu Message Guide

Fault Code Reference

Understanding Error Codes

Explanation of fault code structure and meanings for diagnostics.

Specific Error Code Troubleshooting

Safety Fill and Beater Errors

Pressure and Temperature Errors

Component and Voltage Faults

Beater, Board, and CO2 Pressure Faults

Voltage and Refrigeration Sensor Faults

Refrigeration and System Faults

Transducer and Sensor Errors

Active Charge System Faults

Gas Pressure Faults

Air, N2, and CO2 Pressure Errors

Flavor and Gas Line Faults

Flavor Syrup Pressure Errors

Gas #1 and #2 N2;CO2 Pressure Faults

Regulated Gas Pressure Faults

Gas #1 CO2 Pressure Errors

Gas #1 N2 Pressure Errors

Gas #2 CO2 Pressure Errors

Gas #2 N2 Pressure Errors

Motor and Compressor Faults

Fan Not Starting Troubleshooting

Compressor Not Starting Troubleshooting

Diagnosing compressor startup failures, checking contactors and capacitors.

Solenoid and Motor Control Faults

Solenoid Stuck Open Faults

Solenoid Not Opening Faults

Beater Motor Startup Issues

System Leak and Pressure Faults

Gas;Solution Solenoid Faults

Barrel Leak Detection

Refrigeration Transducer Offset
