FBD 772 - Refrigeration Schematic Diagrams (Remote Condensing Dispensers)

77X INSTALLATION & OPERATION MANUAL
771/772/773/774 MODELS
67
P
PRESSURE TRANSDUCER
PRESSURE
P
P
SSSS
P
T
PRESSURE
PRESSURE
TRANSDUCER
NOTE: DIAGRAM
SHOWN FOR 774
DEFROST
VALVE & SOLENOID
EXPANSION
VALVE & SOLENOID

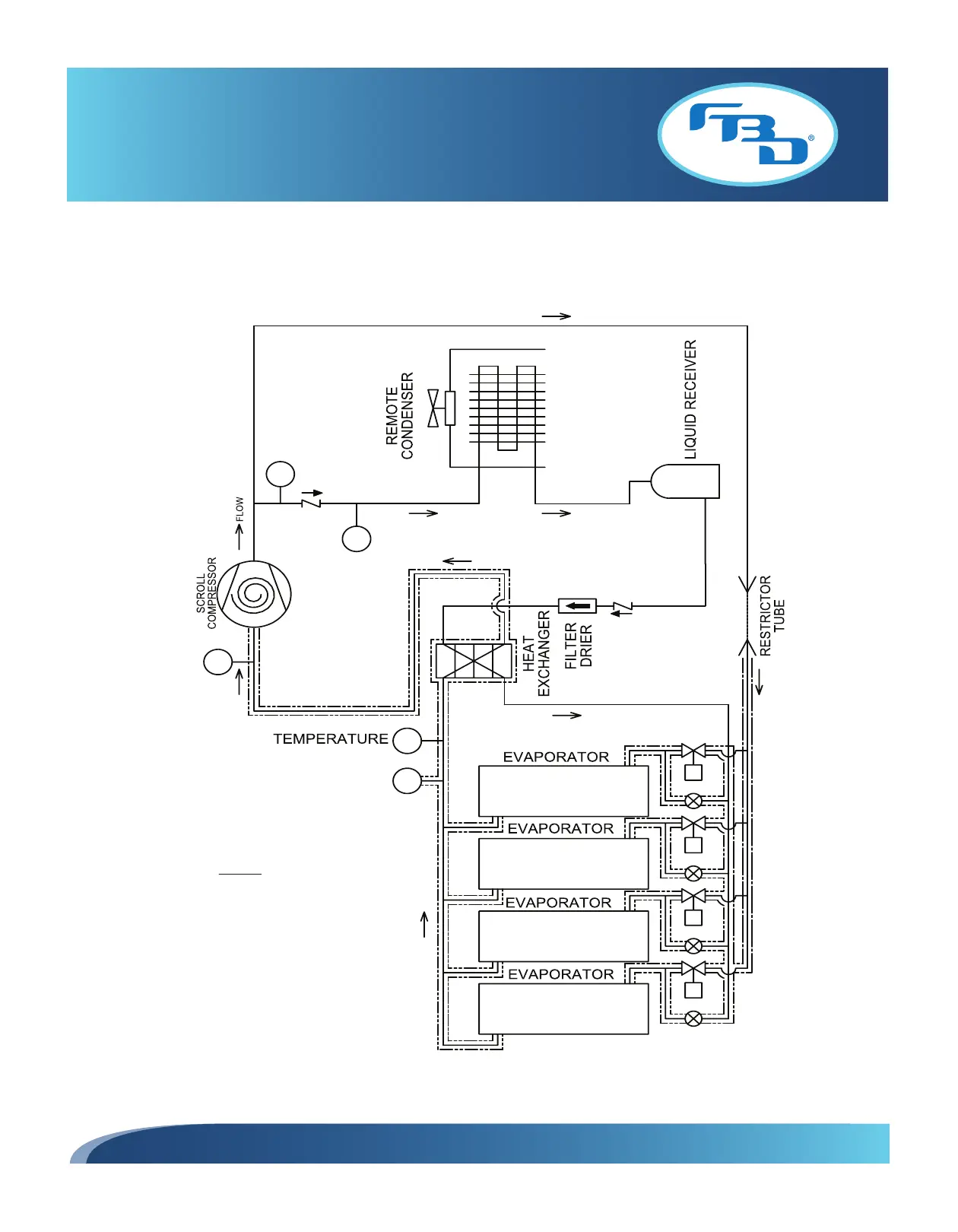

Figure 11.17 Refrigeration Schematic for 772, 773, and 774
Remote Condensing Dispensers
11.8 Refrigeration Schematic Diagrams (Remote Condensing Dispensers)
Figure 11.17 shows the refrigeration schematic for the standard 774 remote condensing dispenser and is representative
of the standard 772 and 773 with the exception of the number of barrels.
