FBD 772 - Refrigeration Schematic Diagrams (Water-Cooled Dispensers)

77X INSTALLATION & OPERATION MANUAL
771/772/773/774 MODELS
68
SS
T
DRIER
FLOW
DEFROST
VALVE & SOLENOID
EXPANSION
VALVE & SOLENOID

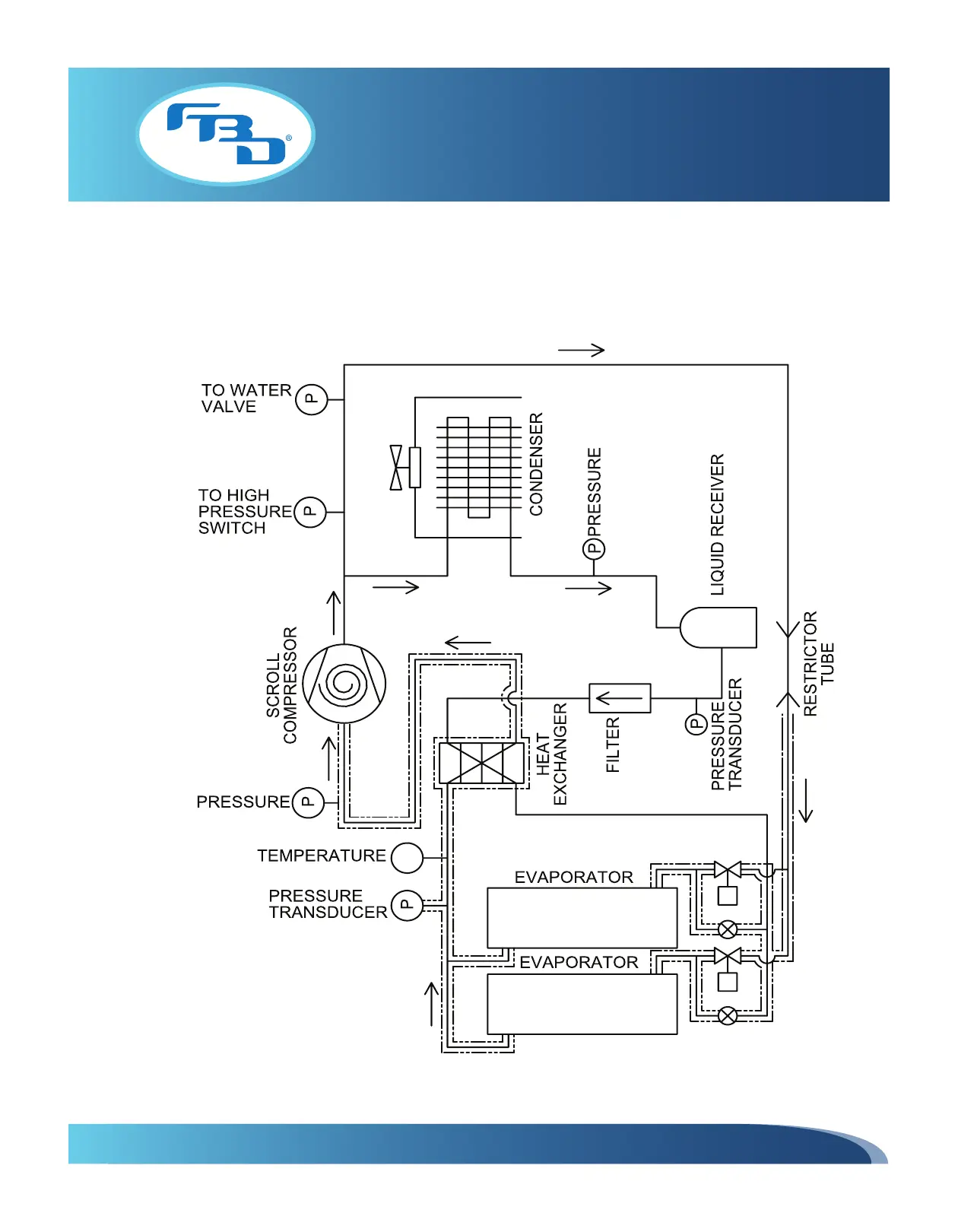

Figure 11.18 Refrigeration Schematic for 772 Water-Cooled Dispenser
11.9 Refrigeration Schematic Diagrams (Water-Cooled Dispensers)
Figure 11.18 shows the refrigeration schematic for the standard 772 water-cooled dispenser. Figure 11.19 shows the
refrigeration schematic for the standard 773 water-cooled dispenser, and Figure 11.19 shows the refrigeration schematic
for the standard 774 water-cooled dispenser.
