77X INSTALLATION & OPERATION MANUAL
771/772/773/774 MODELS
10
4.9 Supply Connections
The water, syrup, and gas connections can be found at the back of the dispenser. All dispensers will have a bulkhead
label near the bulkhead fittings illustrating which supply line connects to each fitting (Figure 4.3). The label will differ in
size and shape based on the dispenser model. Please refer to the “Bulkhead Fittings” table in this section for additional
information on the different connections.

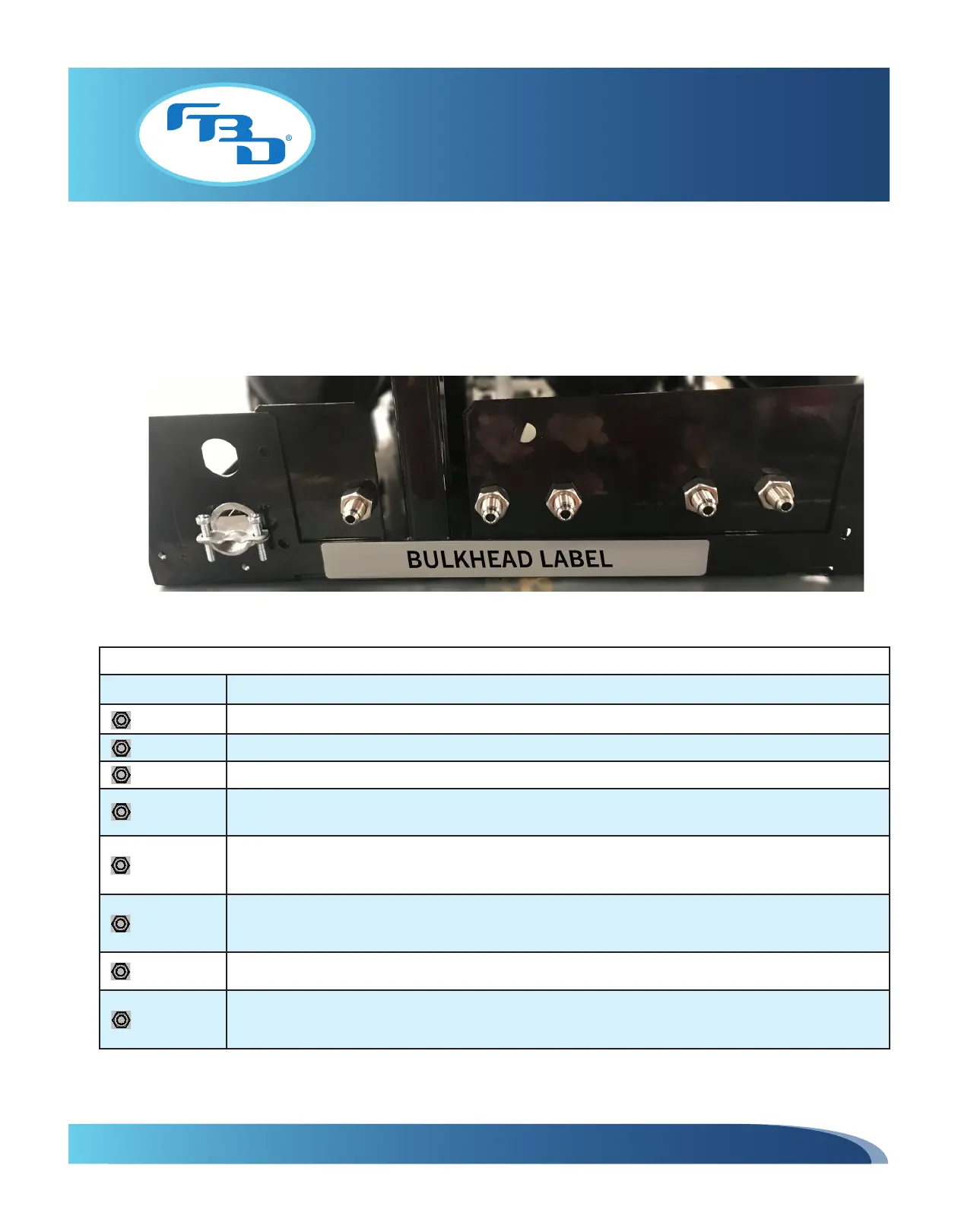

Figure 4.3 Bulkhead Fittings Label Location
* “X” represents the barrel number for SYRUP connections, and the flavor number for FLAV connections.
Bulkhead Fittings
Fitting Label Description
H2O Water supply connection.
CO2 Carbon dioxide supply connection (for standard congurations).
N2 Nitrogen supply connection (for nitrogen congurations).
MAIN GAS
Connection for gas driving pumps, active charge system, and pneumatic faceplate on
universal gas congurations. Can be compressed air, CO or N.
GAS 1
Connection for gas being injected into product (for multi-avor dispensers only). Can be
CO or N. Gas 1 supplies barrel 1 on universal gas congurations.
GAS 2
Connection for gas being injected into product (for multi-avor dispensers only). Can be
CO or N. Gas 2 supplies barrel 2 on universal gas congurations.
SYRUP X* Base syrup connection. The base avor syrup in a given barrel.
FLAV X*
Flavor shot connection. The avor shot that will be mixed with a base syrup (on multi-
avor dispensers only).
SYRUP 4
SYRUP 3
CO
2
H
2
O
SYRUP 2
SYRUP 1
Artwork for 24-2403-0001_D
LABEL, BULKHEAD DIAGRAM, 774
Created 01/27/17 (Rev D), ECN 17-095
*Contact FBD Engineering Department for digital artwork files of layout with color specifications.
