77X INSTALLATION & OPERATION MANUAL
771/772/773/774 MODELS
18
7. MENUS AND NAVIGATION
7.1 Keypad
The keypad is the user interface point and allows for control of the dispenser and navigation of the menus. Please review
the keypad layout (Figure 7.1) to familiarize yourself with the interface.
• Select Button (green): This button confirms the current selection or action.
• Stop-All Button (red): This button will turn off all barrels. A confirmation by the green select button is required.
• Up/Down Arrow Buttons (yellow): These buttons move the selection cursor up and down. Press the select button
to confirm the selection.
• Soft Key (screen-labeled) Buttons (black): These buttons change function depending on the menu currently
being displayed. The function will be displayed below the top buttons and above the lower buttons.
ICON ACTION
Returns the display to the home menu.
Returns the display to the previous menu.
Moves the selection cursor to the right.
Moves the selection cursor to the left.
Stop-All
Button
Select Button
Soft Key (screen-labeled) Buttons
Up/Down
Navigation
Buttons

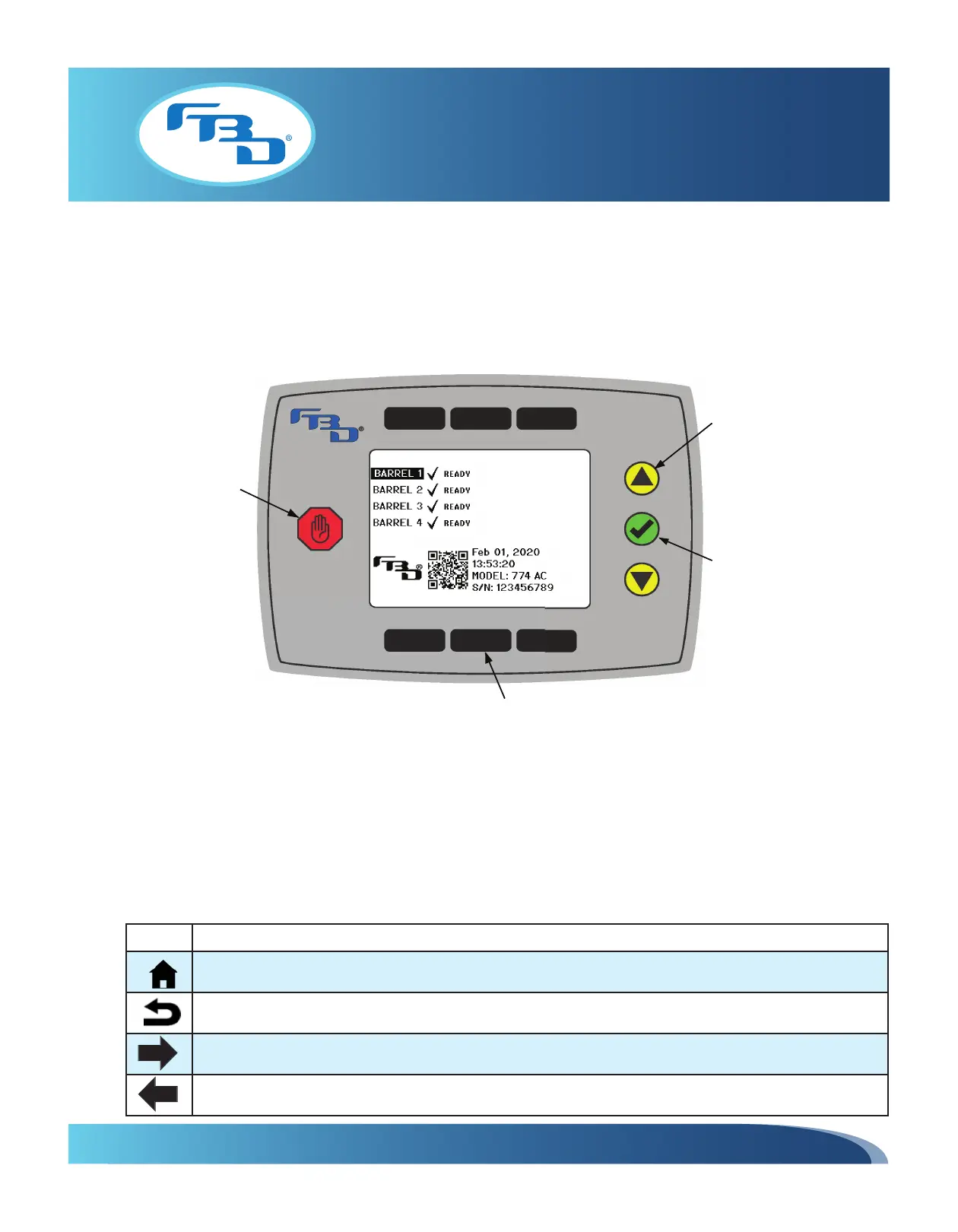

Figure 7.1 Keypad
Screen Icon Legend
