FBD 771 - Page 54

77X INSTALLATION & OPERATION MANUAL
771/772/773/774 MODELS
52
C
L
FRONT
(4) TAPPED
MOUNTING
HOLES
SIDE PANELS
FRAME
DRAIN
DRIP TRAY
20.25
[ 514.4 ]
18.13
[ 460.4 ]
20.00
[ 508 ]
32.5
[ 825.3 ]
1.75
[ 44.5 ]
10.31
[ 261.9 ]
8.56
[ 217.5 ]
DRIP TRAY
6.80
[ 172.7 ]
DRAIN
1.06
[ 27.0 ]

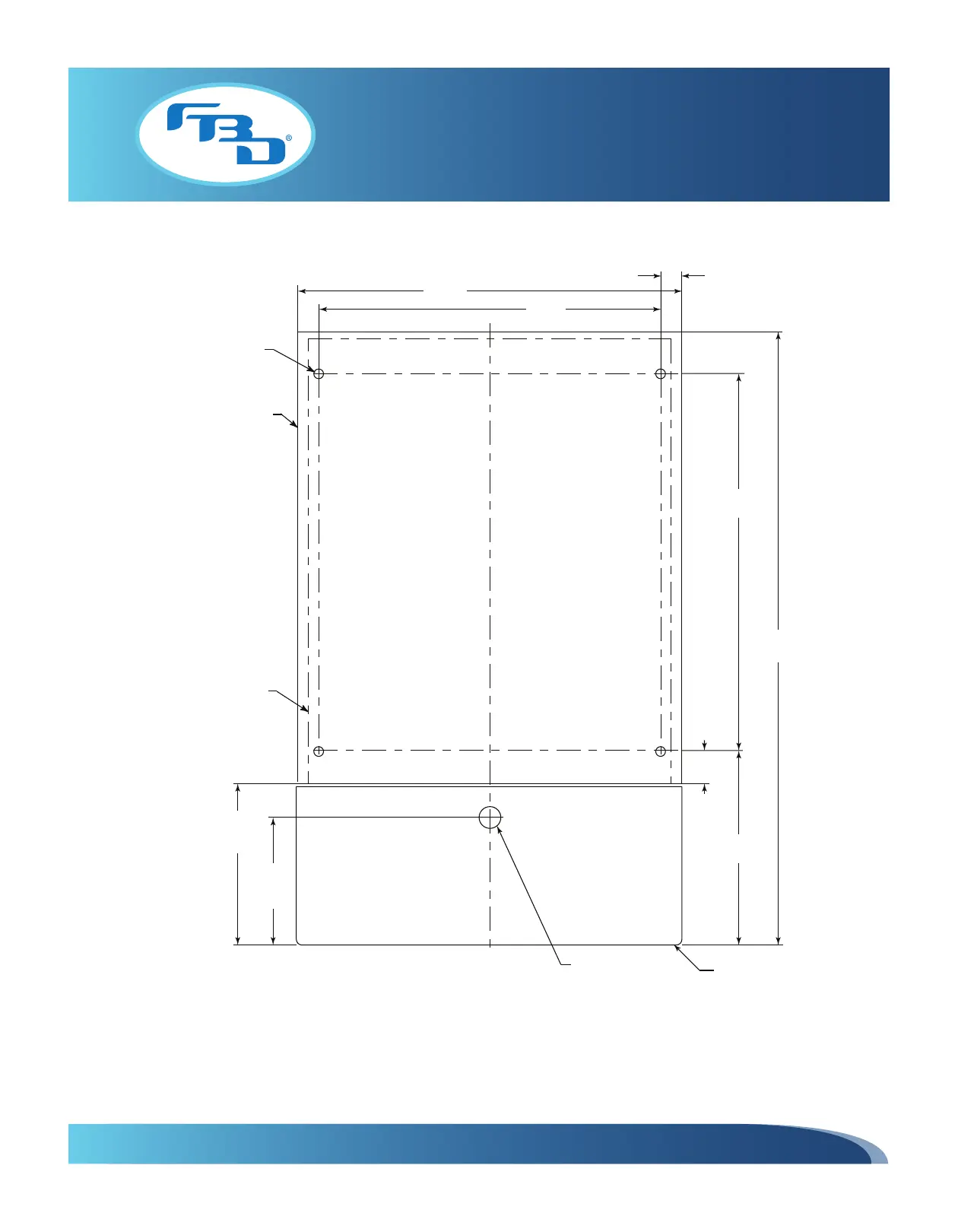

Figure 11.2 Mounting Diagram for 773 Dispenser
