77X INSTALLATION & OPERATION MANUAL
771/772/773/774 MODELS
70
SSSS
DEFROST
VALVE & SOLENOID
EXPANSION
VALVE & SOLENOID

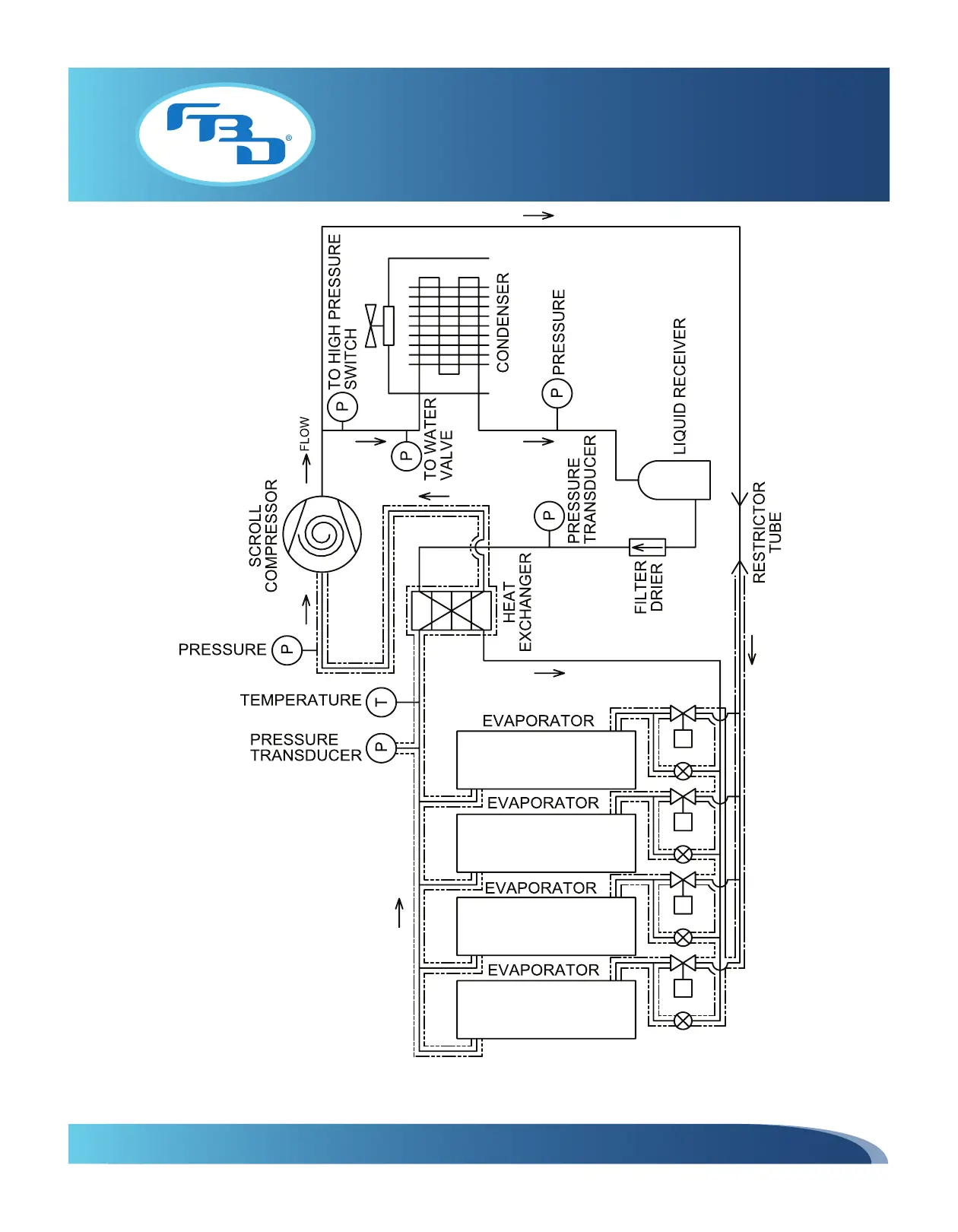

Figure 11.20 Refrigeration Schematic for 774 Water-Cooled Dispenser
