77X INSTALLATION & OPERATION MANUAL
771/772/773/774 MODELS
53
C
L
FRONT
DRAIN
DRIP TRAY
FRAME
SIDE PANELS
(6) TAPPED
MOUNTING
HOLES
26.00
[ 660.4 ]
23.88
[ 606.4 ]
11.94
[ 303.2 ]
32.5
[ 825.3 ]
20.00
[ 508 ]
1.75
[ 44.5 ]
10.3
[ 261.9 ]
8.56
[ 217.5 ]
DRIP TRAY
6.80
[ 172.7 ]
DRAIN
1.06
[ 27.0 ]

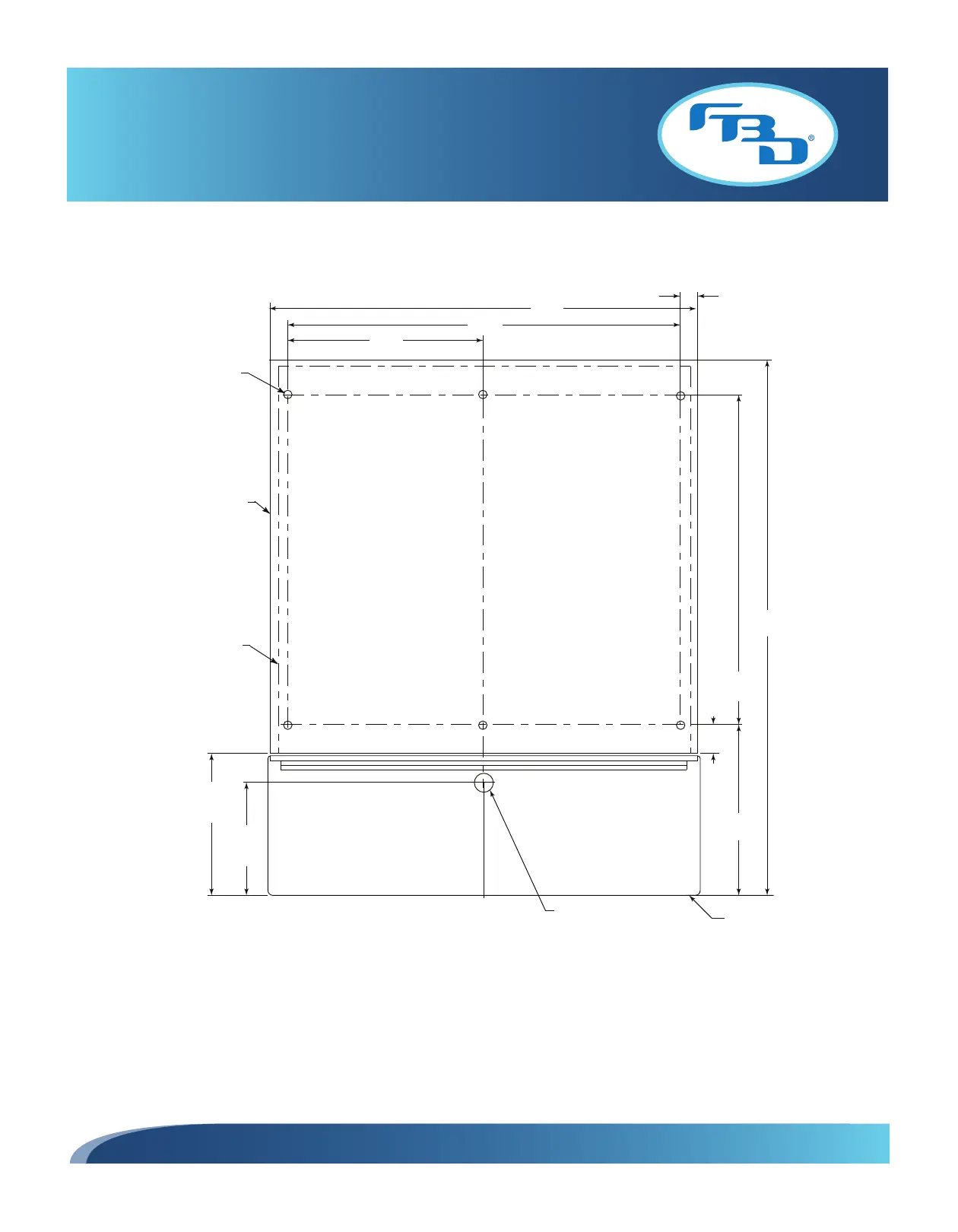

Figure 11.3 Mounting Diagram for 774 Dispenser
