77X INSTALLATION & OPERATION MANUAL
771/772/773/774 MODELS
58
Motors
220 V, 60 Hz
Motor:
30-0110-0001
Motor Assy:
12-0291-0003
Compressor
60 Hz
ZB15KCE-PFV
208-230 V
36-2055-0001
12-0570-0010 TRANSFORMER 192 VA, 24 VAC, 50/60HZ
14-0108-0003 NEMA L6-20P PLUG
24 VAC
DIG - GND
L1 L2
/
OPTION FOR
WATER COOLED
4MFD
4MFD
4MFD
RV3 RV4
RV1 39VAC
RV2
VIDEO DOOR
POWER SUPPLY
D
C
A
B
CONTINUES ON NEXT PAGE
CONTINUES ON NEXT PAGE
NOTE: DIAGRAM
SHOWN FOR 772
MULTI-FLAVOR
OR
BRN
OR
GRY
OR
BRN
OR
GRY

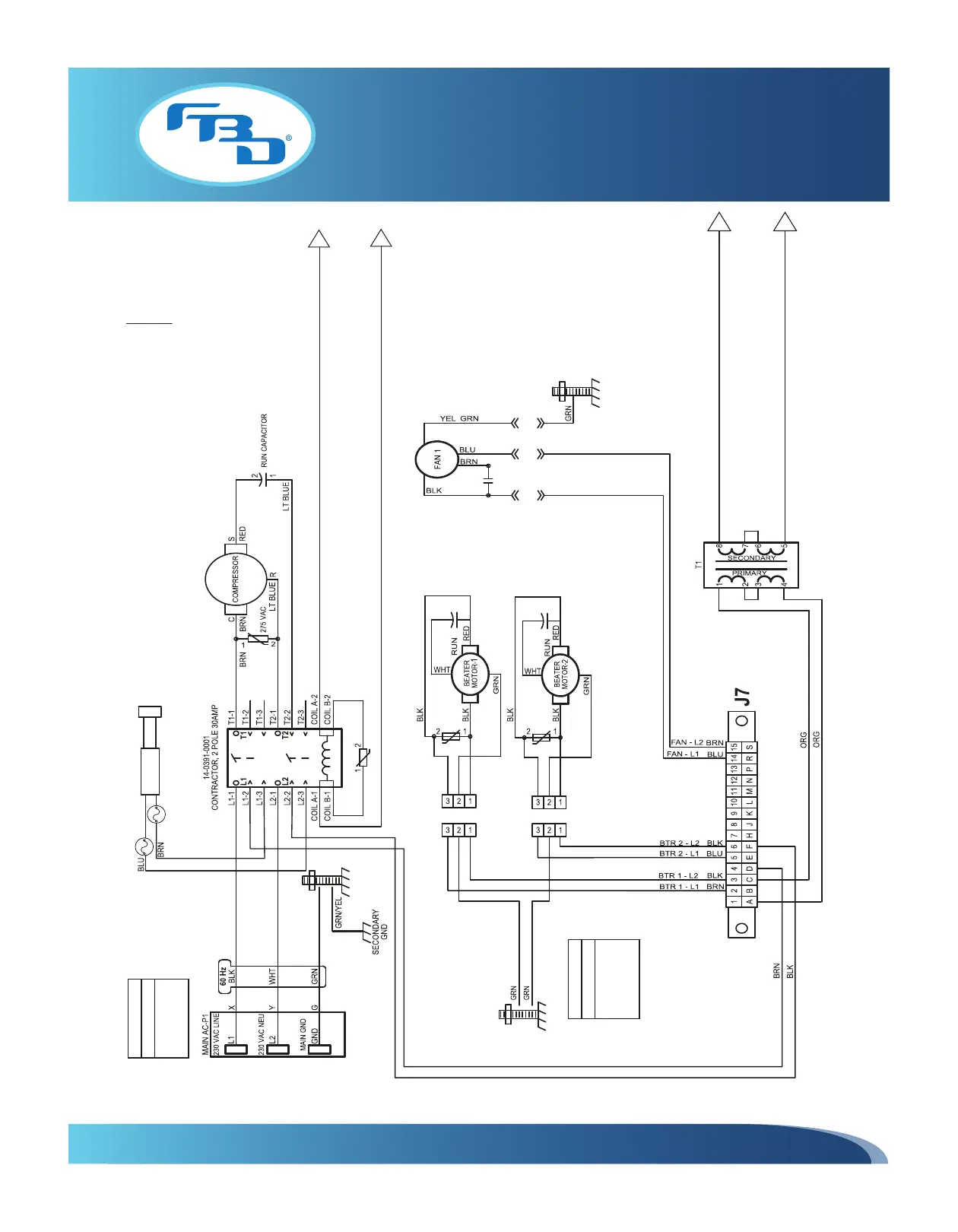

Figure 11.8 Electrical Diagram for 771 and 772 Multi-Flavor Dispensers
2 OF 3
