FBD 773 - Page 64

77X INSTALLATION & OPERATION MANUAL
771/772/773/774 MODELS
62
A B
CONTINUED FROM PREVIOUS PAGE
CONTINUED FROM PREVIOUS PAGE
OPTION FOR
REMOTE CONDENSER
FILL
VENT
CO2 1- RTN
CO2 2 - RTN
12 VDC
CO2 3 - RTN
12 VDC
CO2 4 - RTN
SOL 3 - RTN
SOL 2 - RTN
SOL 1 - RTN
24 VAC
SOL 4 - RTN
24 VAC
24 VAC
DEF 1 - RTN
REF 2 - RTN
DEF 3 - RTN
REF 3 - RTN
DEF 4 - RTN
REF 4 - RTN
REF 1 - RTN
24 VAC
DEF 2 - RTN
24 VAC
C
D
NOTE: DIAGRAM
SHOWN FOR 774

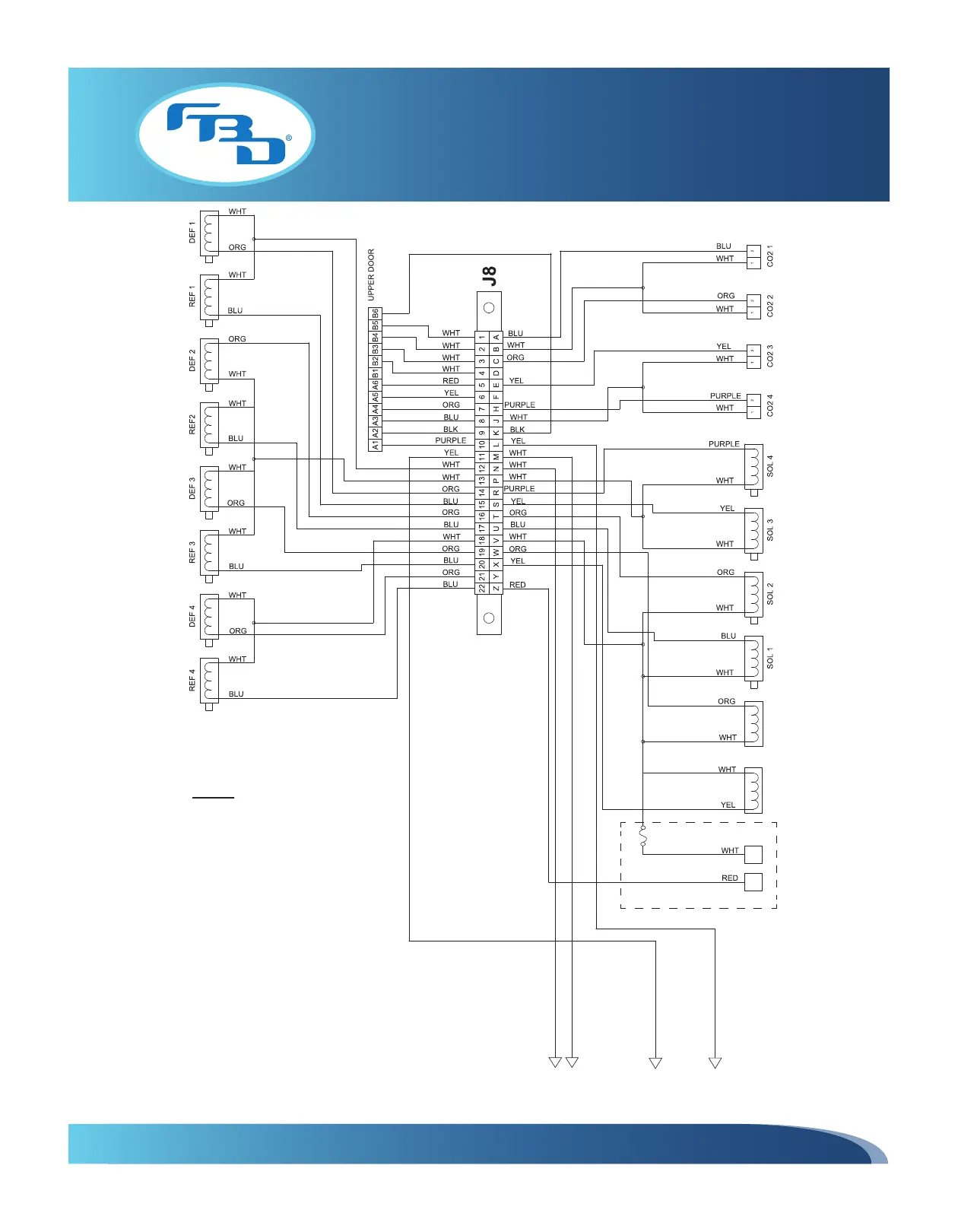

Figure 11.12 Electrical Diagram for Standard 772, 773, and 774 Dispensers
1 OF 3
