FS10 Series
62 Fluid Components International LLC

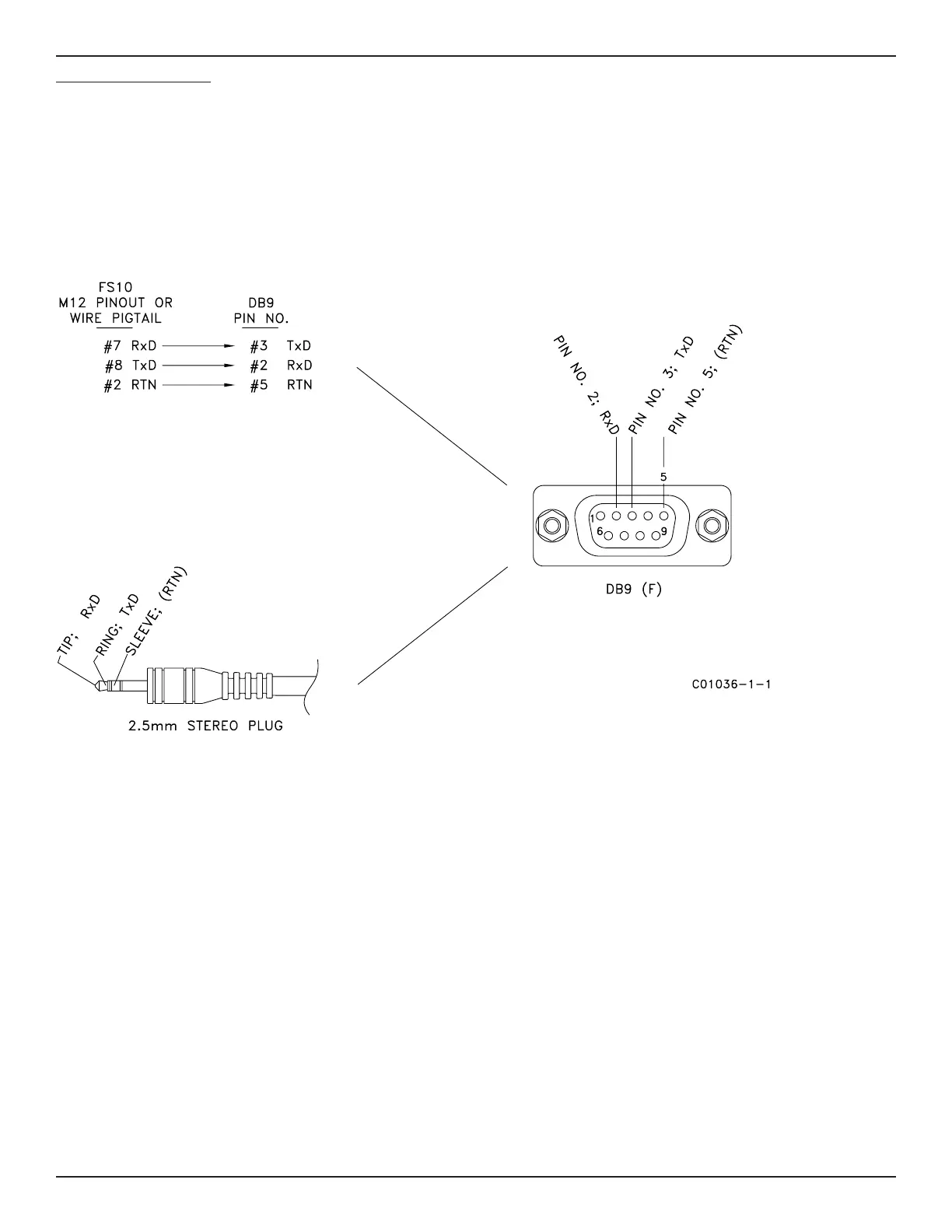

DB9 Connection Schematic
Wiring Schematic
RS-232 from Cable Pigtail to DB9 Female Connector
Wiring Schematic
RS-232 through 2.5 mm TRS (Stereo) Plug
to DB9 Female Connector
DB9 Female Connector
