FEC AM-1017 - 15 2 nd Pole Type VFD; LCM Installation

System Manual
9
15” 2
nd
Pole Type VFD / LCM Installation

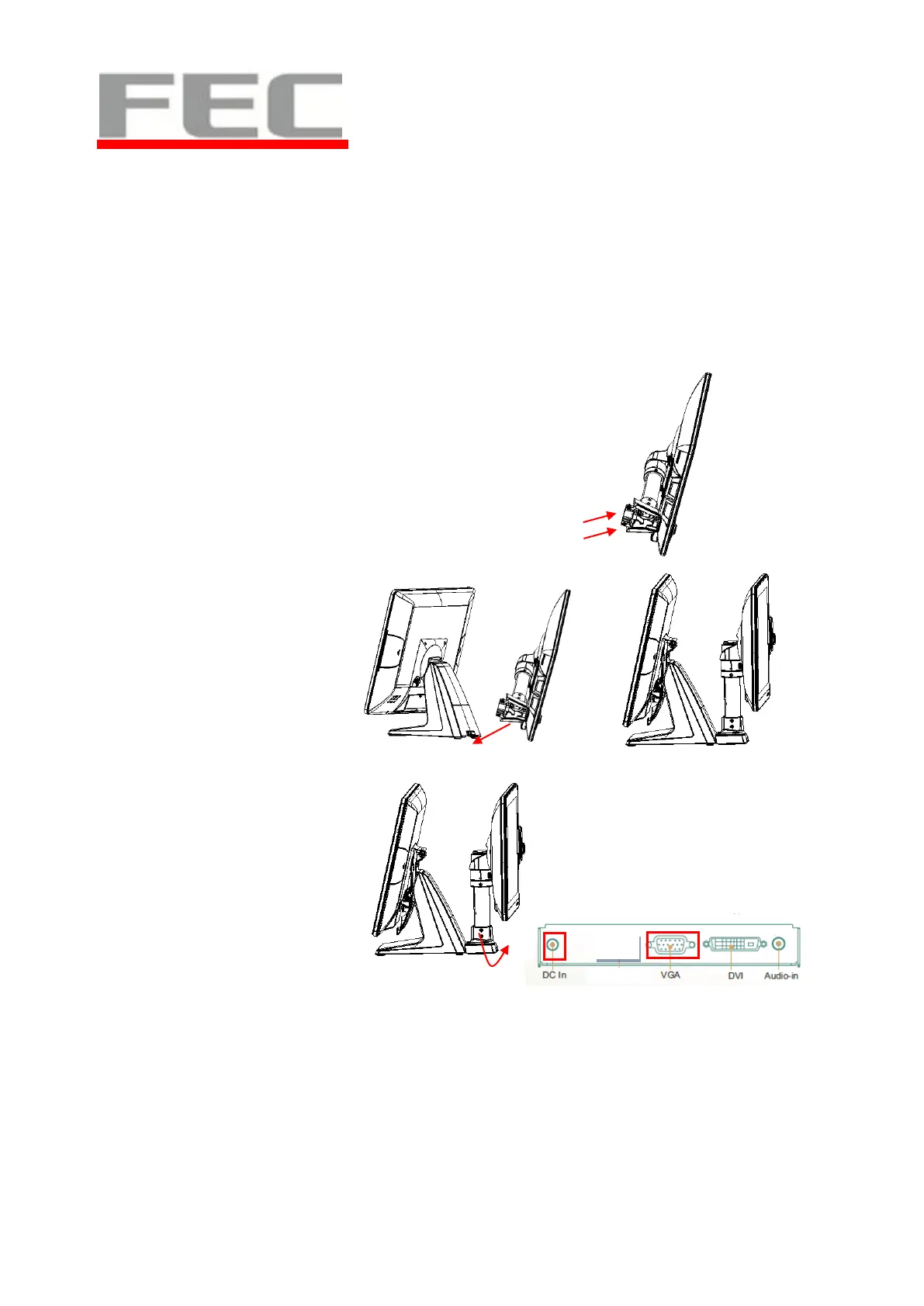

1. Assemble the 2
nd
screen with pole type
with 2 screws
2. Assemble the 2
nd
Screen with pole type
to Terminal.
3. Plug in VGA and DC
12V cables
Note : They should connect to the system.
