Installation Procedures Continued
Installation Congurations
High Pressure Centrifugal Feed Pumps
• A throttle valve is needed to regulate feed pump discharge pressure.
• The throttle valve should be located between the feed pump and the HPB feed inlet.
• If the feed pump speed is controlled by a variable frequency drive (VFD), a throttle valve is
not required.
NOTES: Minimum distance between high pressure pump and throttle valve is pipe dia x 3.

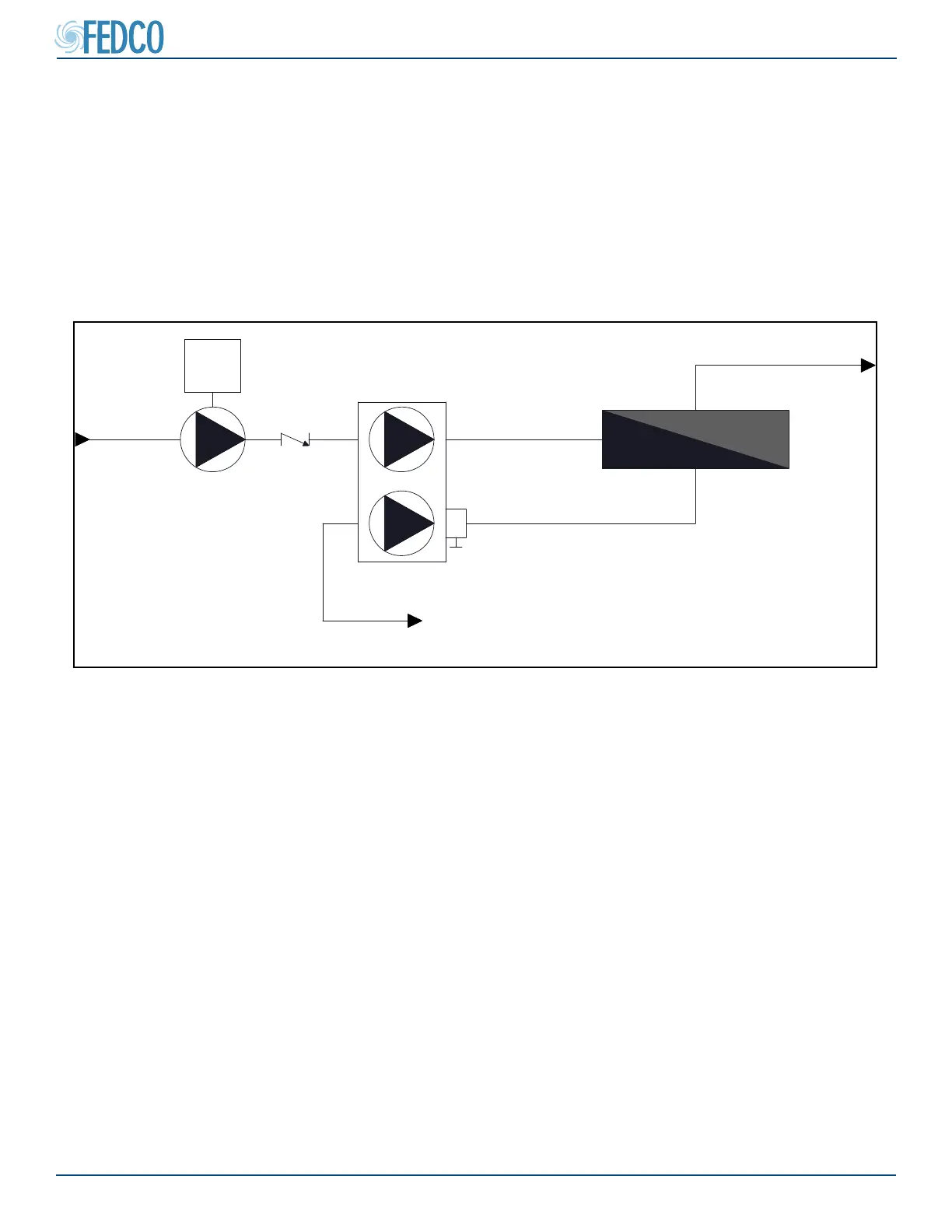

Figure 10 - Centrifugal Feed Pump Conguration
Motor
Brine
Permeate
Product
High Pressure
Brine Stream
High Pressure
Location
Throttle Valve
Brine Outlet
Pump
Feed
High Pressure
HPB™
