Unpacking/ Inspection/ and Storage
HPB External Components
Inspection of Unit Upon Receipt
• Review the contents of the packing list to make sure all components have been included.
• Inspect all components for signs of damage which may have occurred during shipping.
• If damage is present or if the contents are incomplete, please contact your shipping company
or a FEDCO representative before proceeding.
Item Description Item Description
1 Brine outlet 8 Pump casing
2 Turbine end cap 9 Pump end cap
3 End cap lifting eye 10 Feed inlet
4 Turbine casing 11 Unit nameplate
5 Hoist ring 12 Base Feet
6 Feed outlet 13 Actuator assembly (optional)
7 Brine intlet 14 Foundation plate

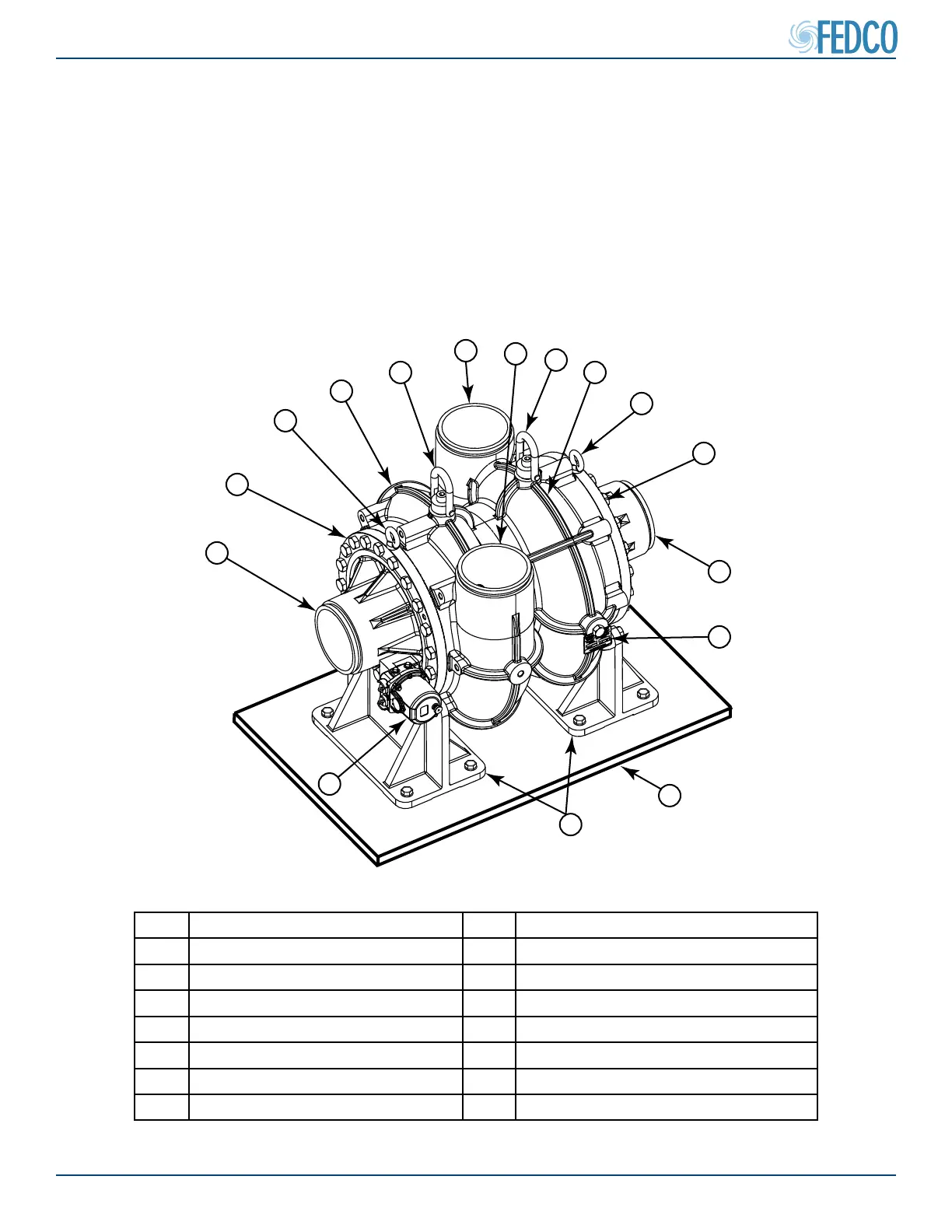

Figure 1 - HPB-2800 Booster External Components
1
2
3
3
4
5
5
6
7
8
9
10
11
12
13
14
To Next Page
