Installation Procedures Continued
Booster Piping Connections Continued
Inlet Piping
• Keep the inlet pipe free of high points which could trap air and could disrupt booster
operating.
• Pressure gauges are recommended to allow measurement of booster inlet pressure.
Outlet Piping
• To achieve an accurate pressure reading the pressure gauges / sensor needs to be two pipe
diameters from feed inlet.
• For ease of removal and servicing the HPB, spool pieces may be installed

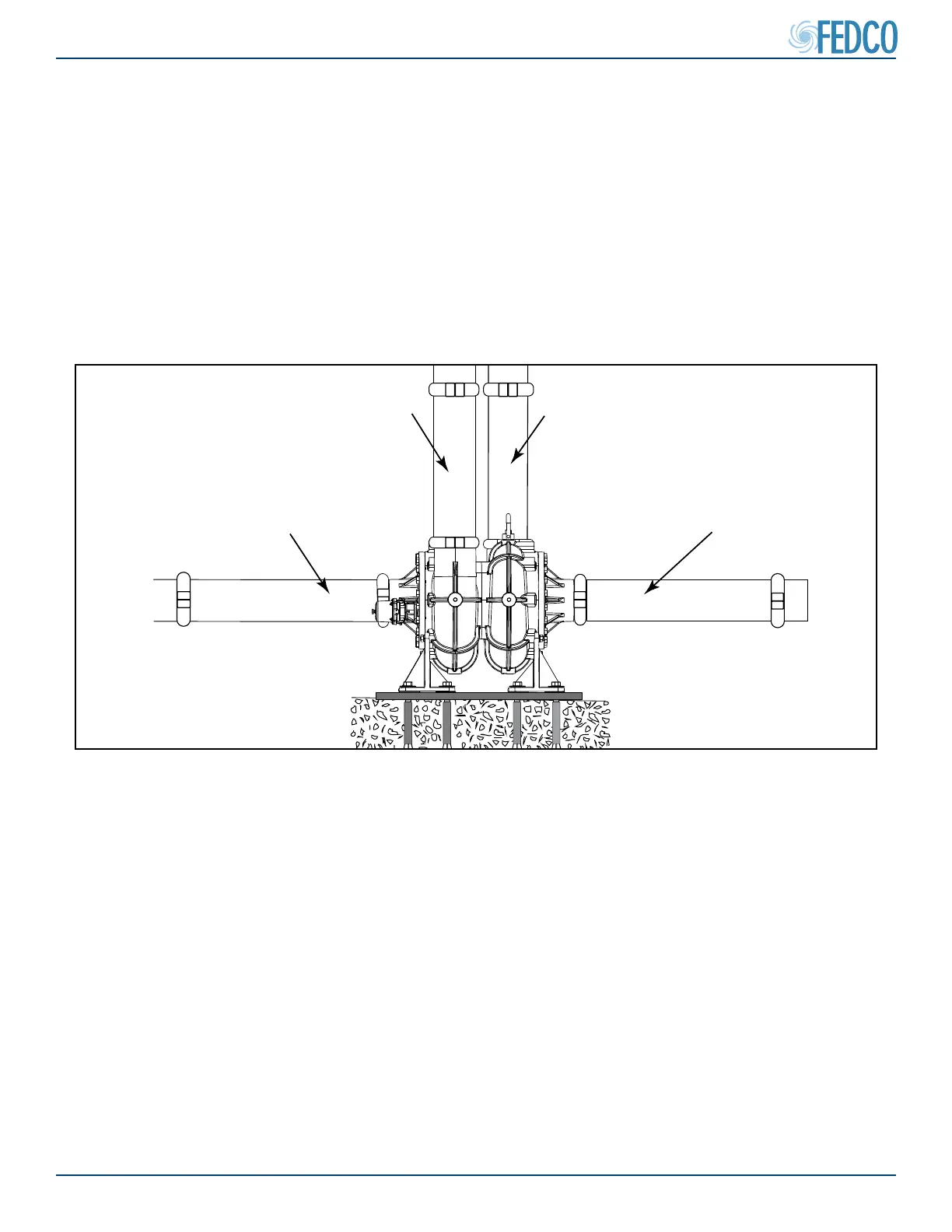

FEED OUTLET
BRINE INLET
BRINE OUTLET
FEED INLET
REMOVABLE SECTIONS FOR
BOOSTER SERVICE
Figure 20 - Removable Section For Service
