MSD
TM
Series
© Copyright 2018 Fluid Equipment Development Company | www.fedco-usa.com
- 14 -
Installation Procedures Continued
Vertical Lifting And Handling
CAUTION
Observe all lifting precautions. Failure to follow all lifting and handling precautions may result in
serious injury! Unit weight is listed on the unit nameplate. Mechanical lifting equipment must be
used. MSD pumps can be lifted using approved lifting straps and suitable lifting equipment.
Whenever possible, all components should be lifted and moved separately for safety. Do not lift
the pump up by the shaft. If the unit is lifted by the shaft, damage may occur. Lifting and handling
of the motor must be performed according manufacturers instructions. Do not lift the pump and
motor by the motor eyebolts. The eyebolts are used for lifting the motor only.
NOTES: The motor and base plate need to be lifted from a combination of lifting points so the
pump and base plates total weight is balanced.

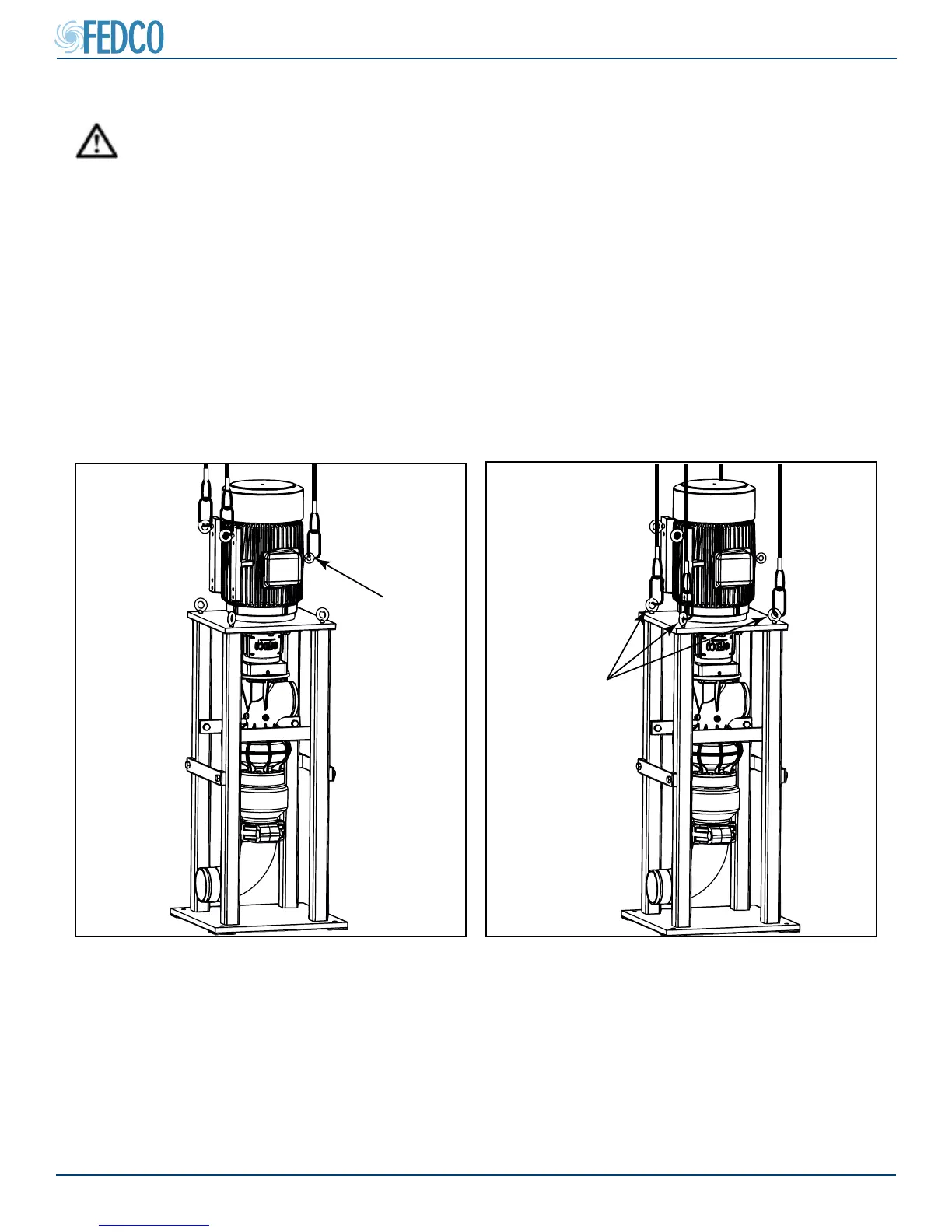

Motor and Pump Assembly Lifting
NO
LIFT POINTS
(4X)
Figure 14 - Improper Lifting Points Vertical
Figure 15 - Proper Motor and Pump Lifting
