Unpacking/ Inspection/ and Storage
MSD External Components
Inspection of Unit Upon Receipt
• Review the contents of the packing list to make sure all components have been included.
• Inspect all components for signs of damage which may have occurred during shipping.
• If damage is present or if the contents are incomplete, please contact your shipping company
or a FEDCO representative before proceeding.
6
7
8
9
10
11
12
13
5
4
3
2
1
14
15

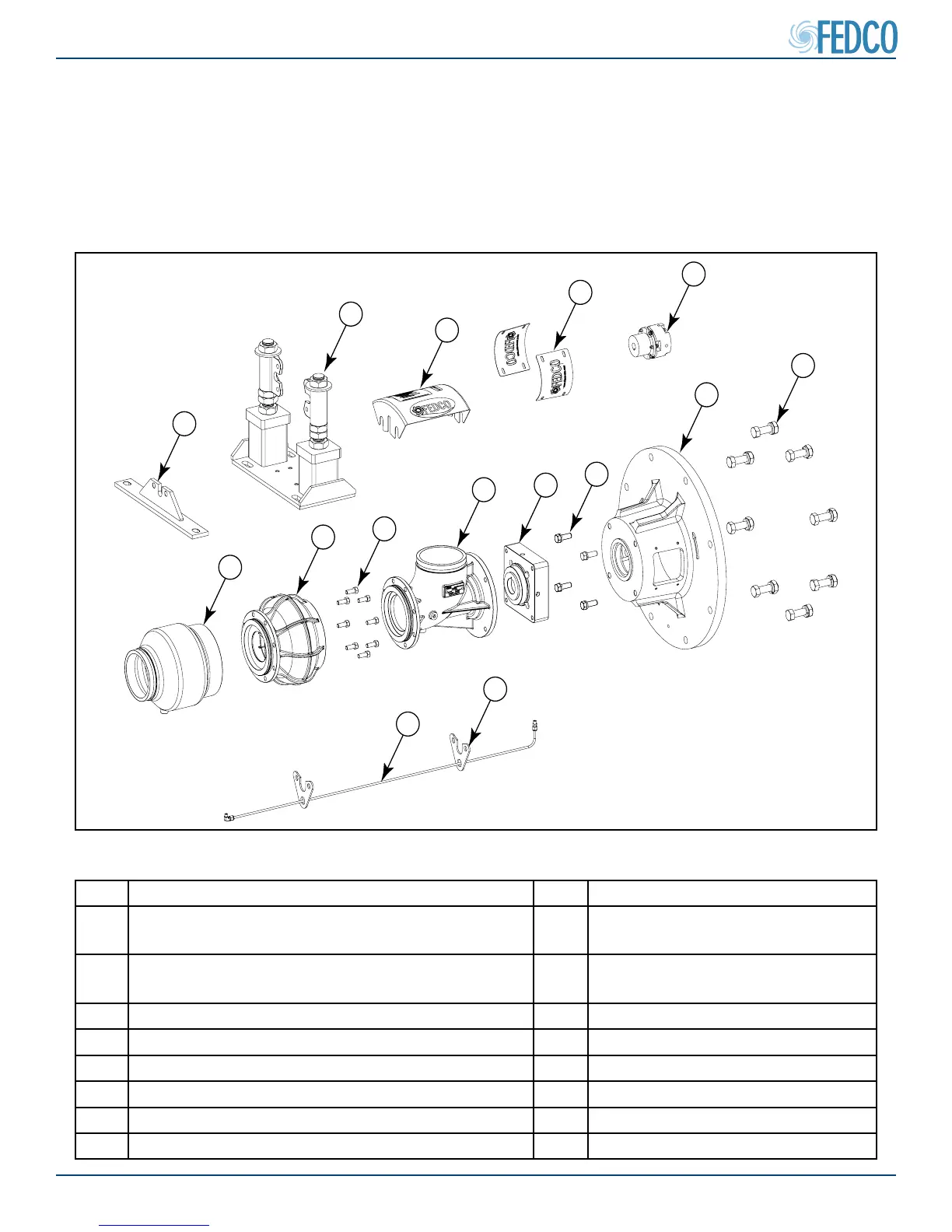

Figure 1 - Pump Assembly External Components
Item Description Item Description
1 Vertical leveling foot
(Vertical conguration)
9 Inlet housing
2 Precision leveling foot
(horizontal orientation only)
10 High pressure seal carrier
(Optional)
3 Branding plate 11 Inlet housing bolts
4 Coupling guards 12 Motor adapter
5 Flexible coupling 13 Motor adapter bolts
6 Discharge housing 14 Bearing drain line
7 Di󰀨user housing (bowl) 15 Drain tube holder
8 Di󰀨user housing bolts
