MSD
TM
Series
© Copyright 2018 Fluid Equipment Development Company | www.fedco-usa.com
- 19 -
Pump Assembly Continued

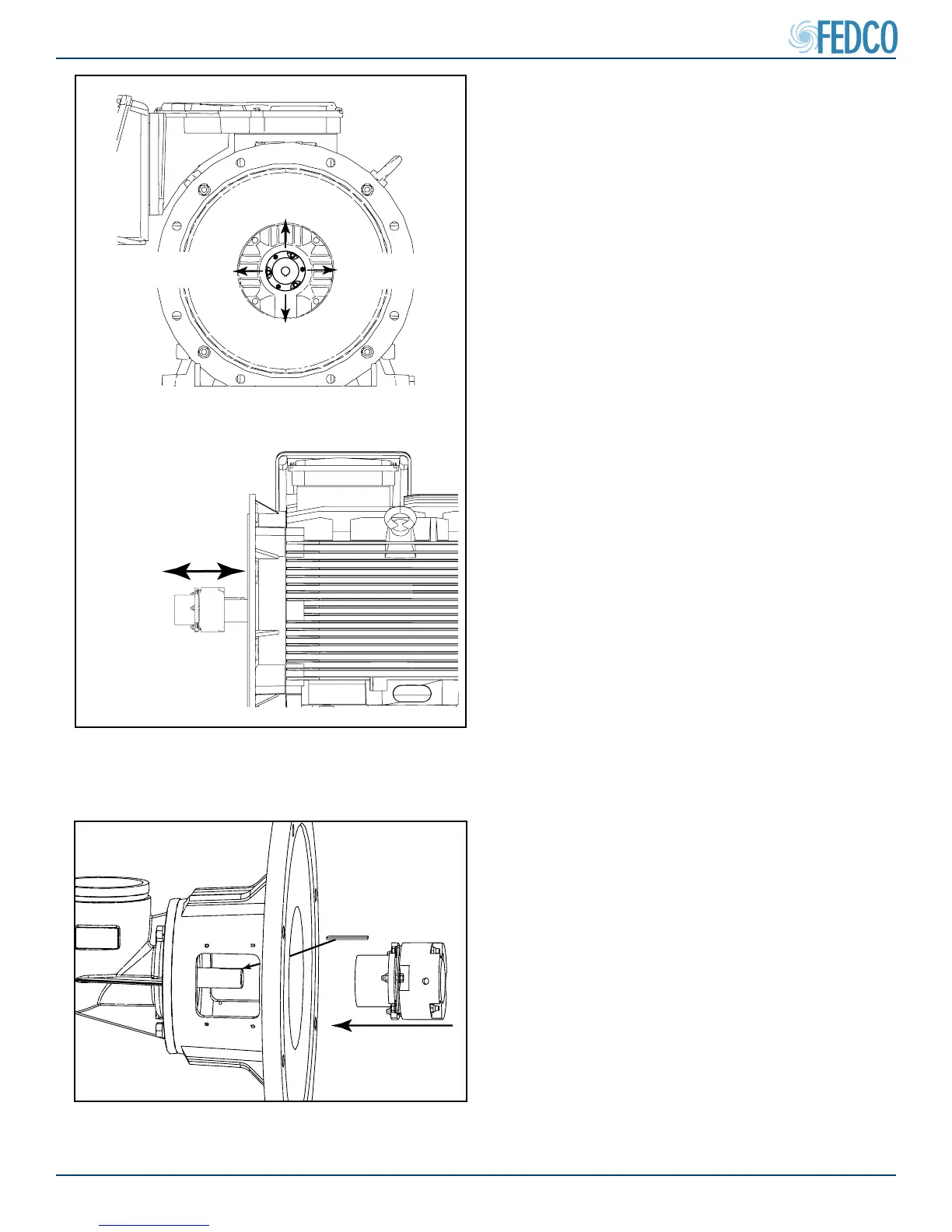

Figure 26 - Installing Flex Coupling
8. Slide the exible coupling over the pump
shaft with the pump shaft key.
NOTES: The rounded end of the key must be
placed in the rounded end of the keyway.
Figure 25 - Check Flex Coupling Fit On Shaft
NO
MOVEMENT
NO
MOVEMENT
NO
MOVEMENT
NO
MOVEMENT
SMOOTH MOVEMENT
7. Inspect the exible coupling radial and axial
t. It should be tight with no visible radial
movement and slide smoothly on and o
the motor shaft
To Next Page
